CMP Sensor B (TDC Sensor)

TDC Sensor Replacement

1. Remove the air cleaner.
2. Disconnect the TDC sensor 3P connector.

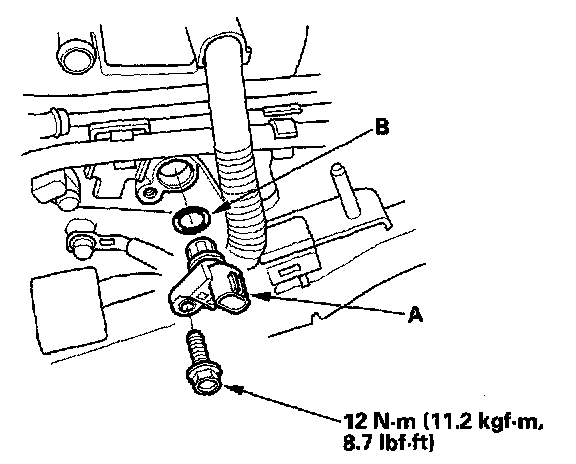

3. Remove the TDC sensor (A).
4. Install the sensor in the reverse order of removal with a new O-ring (B).
