Passenger's Window Switch Test/Replacement
Passenger's Window Switch Test/Replacement1. Remove the switch panel from the door panel.

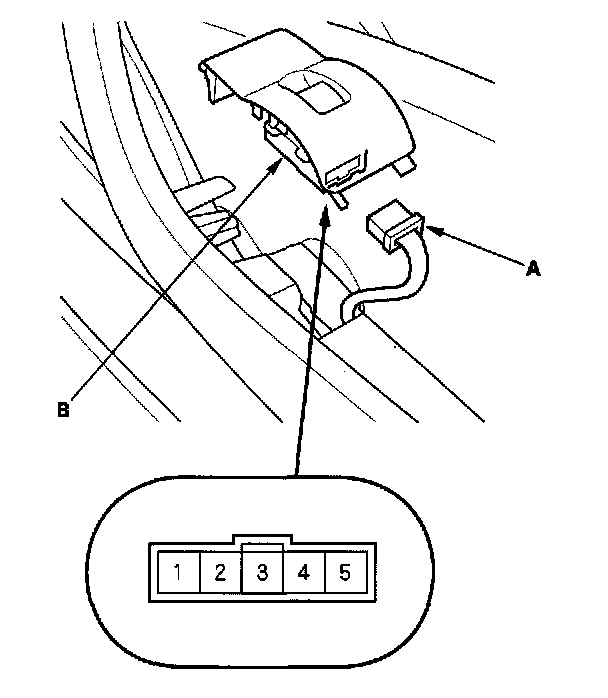

2. Disconnect the 5P connector (A) from the power window master switch (B).

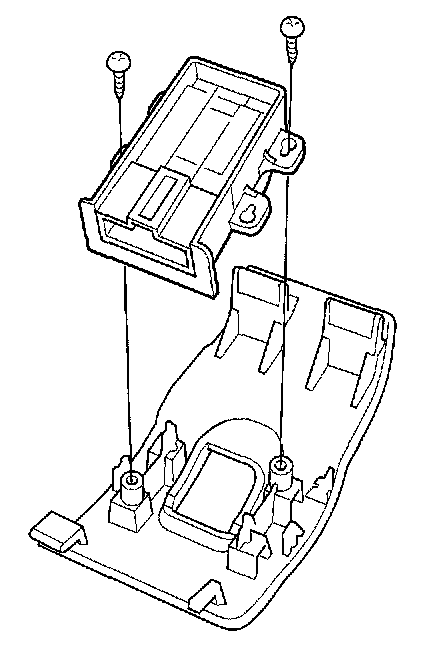

3. Remove the two screws and passenger's power window switch.

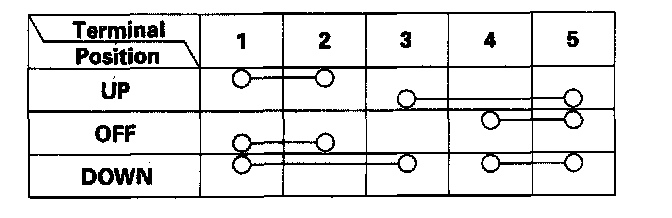

4. Check for continuity between the terminals in each switch position according to the table.
5. If the switch is faulty, replace the switch.
