System Description: Notes

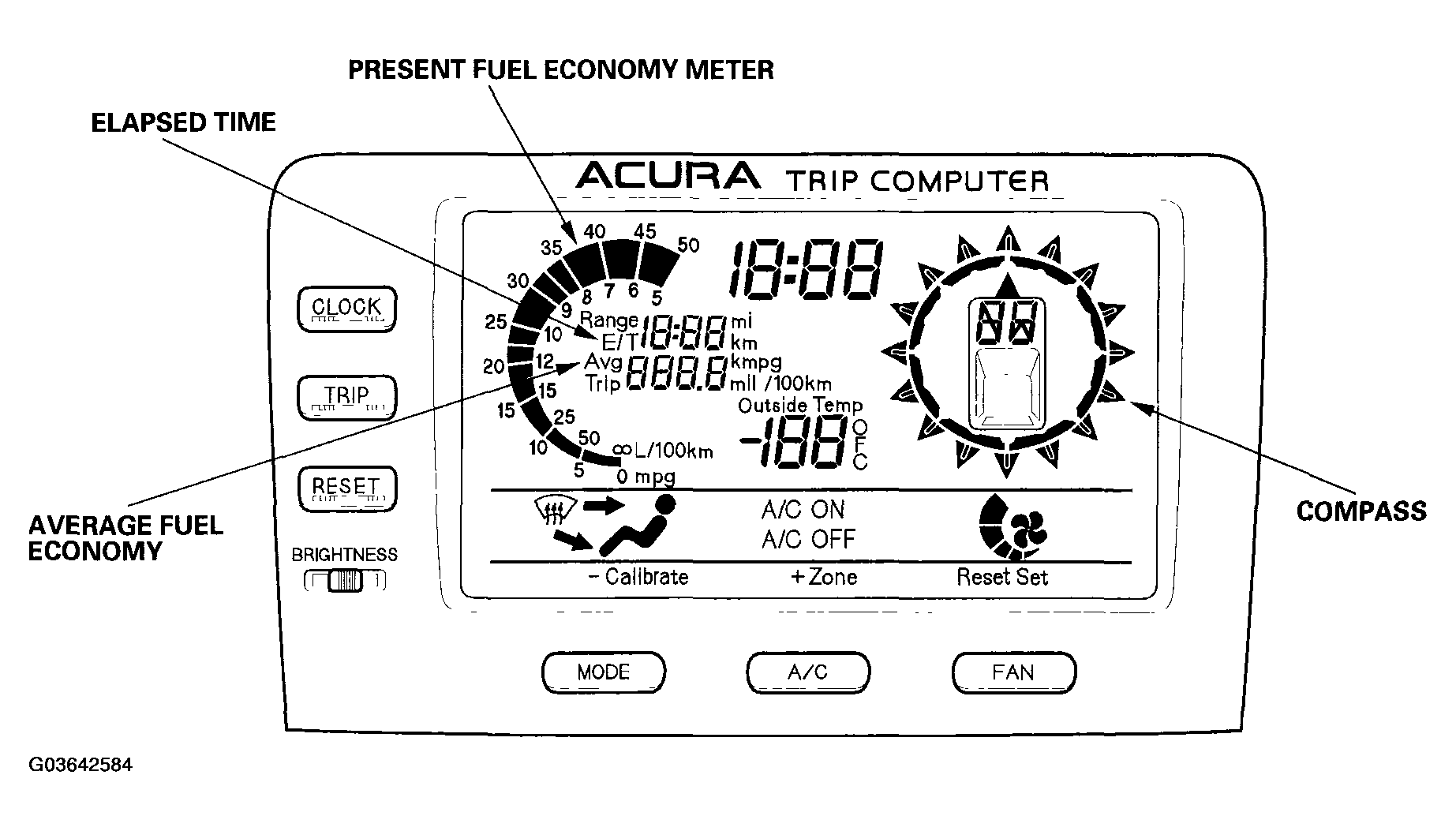

The Multi-information system displays these information when the appropriate buttons are pressed.
- Present status of the air conditioning system when it is manually controlled.
- Clock.
- Present fuel economy and average fuel economy (provided by the PCM based on the injection pulse signal and vehicle speed signal).
- Range: the distance you can drive with the fuel remaining.
- Trip meter.
- Outside air temperature, (provided by the climate control unit based on the temperature sensor data).
- Compass: the direction of the vehicle is heading based on the data from the electrical compass unit.
