Cruise Control Set/decel, Resume/ accel, Cancel Switch Test/ Replacement

SES components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).

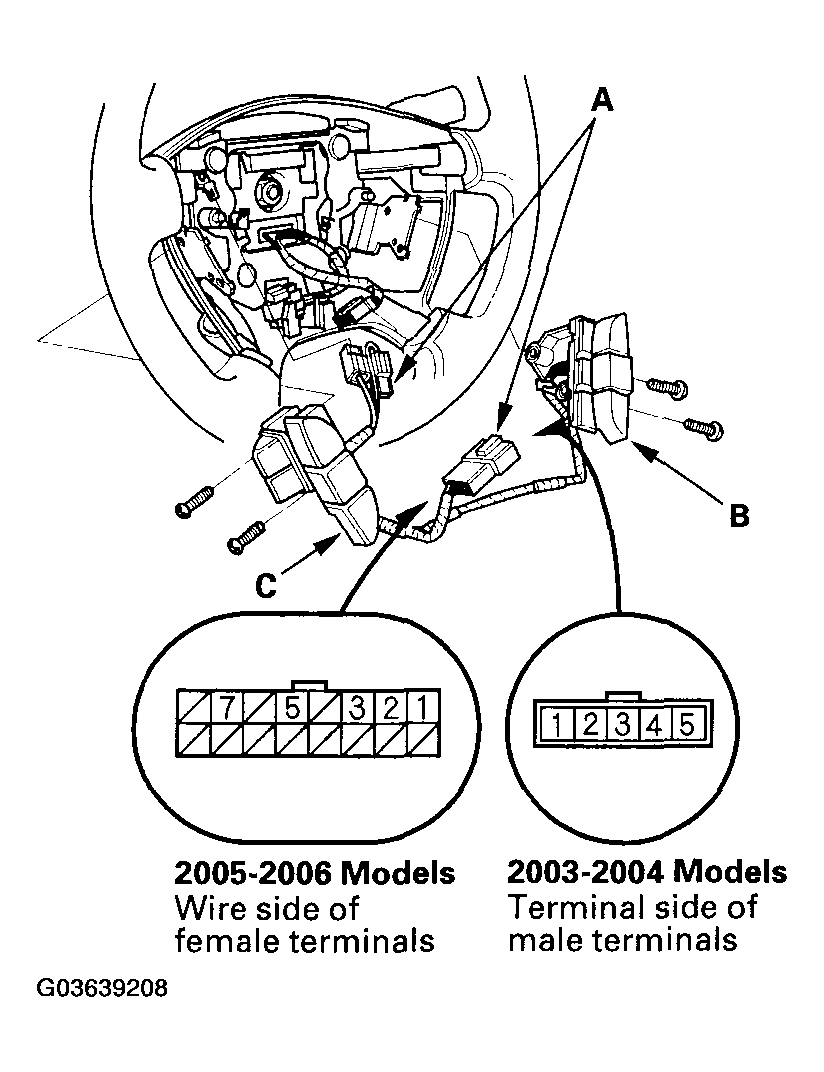

2. Disconnect the connectors (A), then remove the set/ decel, resume/accel, cancel switch (B) and radio remote switch (C).
   Fig 1: Disconnecting Connectors

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to Fig 2 .
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in appropriate positions, replace the switch.

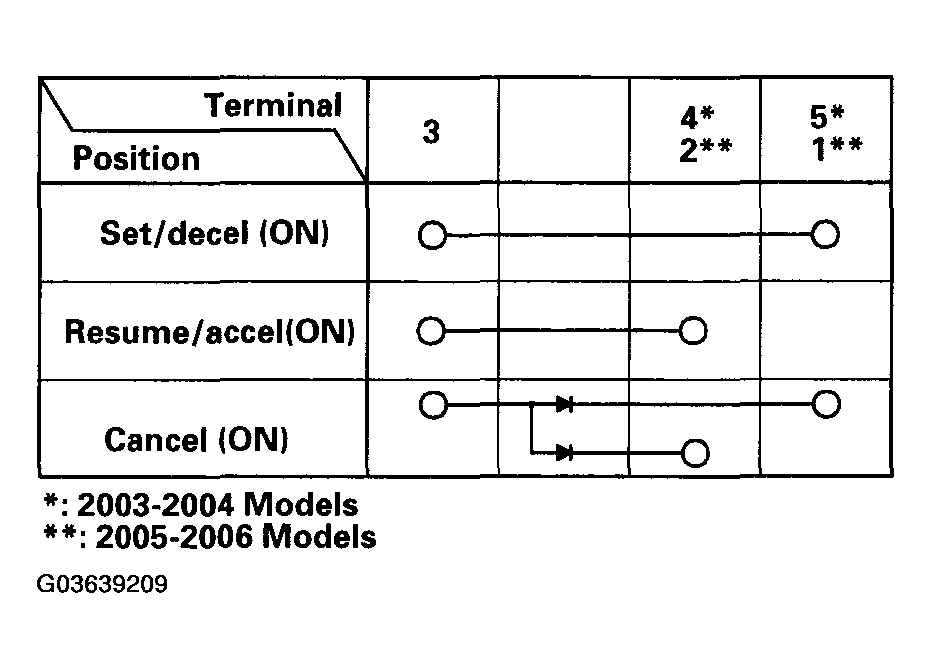

   Fig 2: Checking Continuity Between Terminals In Each Switch Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
