Front Stereo Amplifier Connector Inputs and Outputs ('03 Model With BOSE Sound System)

When replacing a stereo amplifier connector, match the wires to the cavities as listed in the following table.

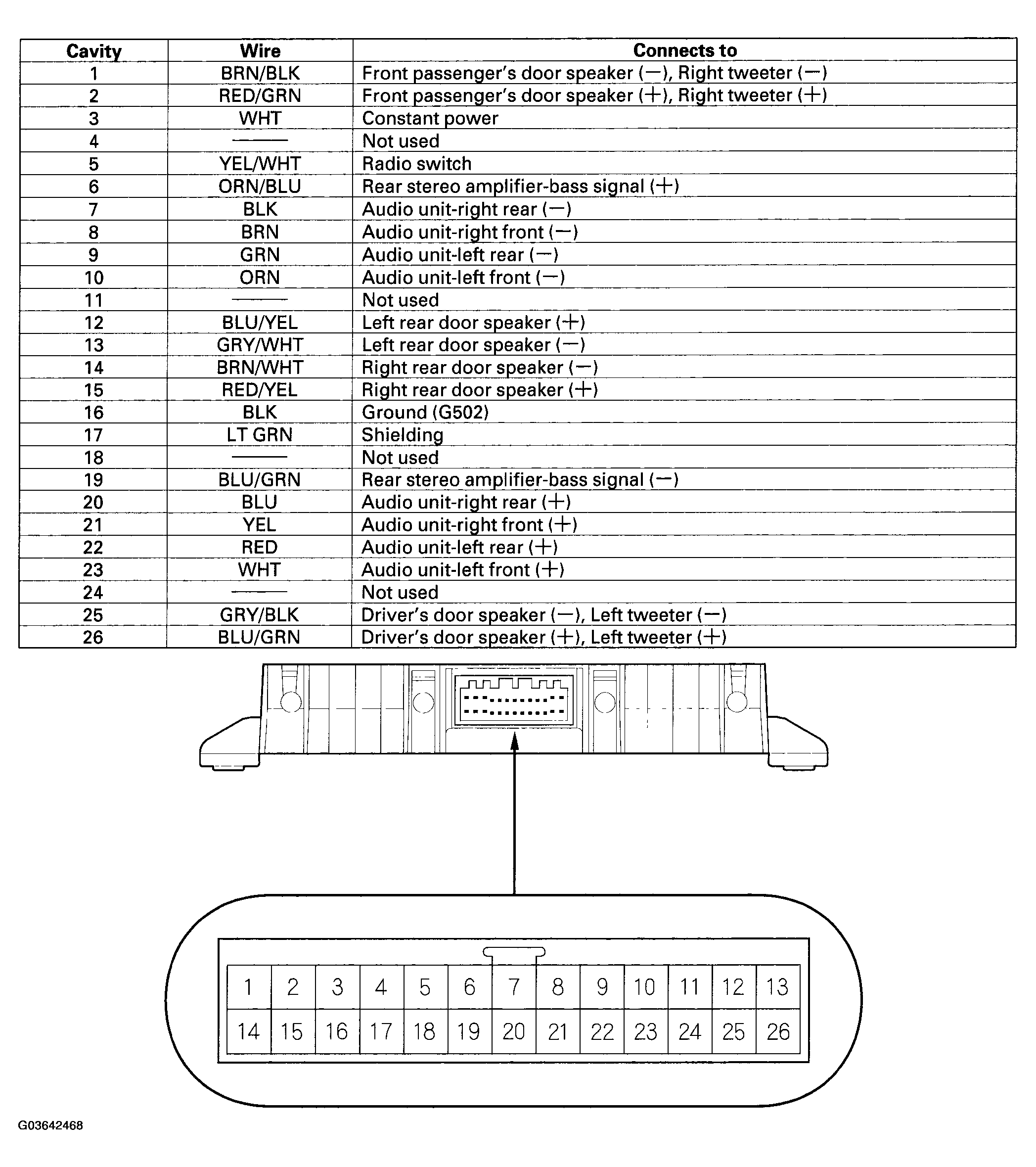

Fig 1: Identifying Front Stereo Amplifier Connector Inputs And Outputs ('03 Model With BOSE Sound System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
