Fuel Pulse and Fuel Level

The PCM sends a fuel pulse and fuel level signal to the navigation unit via F-CAN. This information is used to display mpg, range, and average fuel economy on the trip computer.

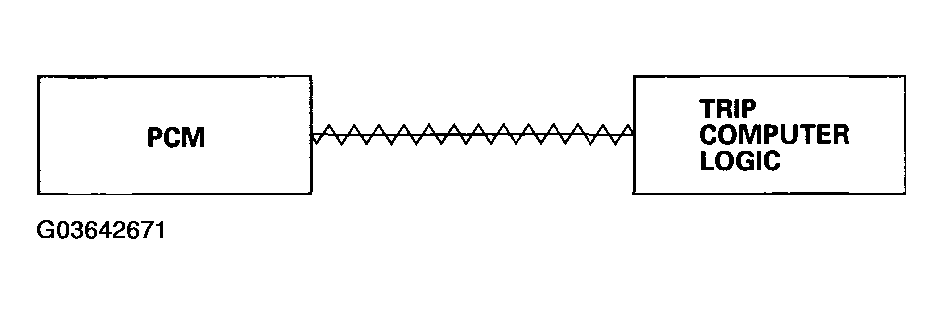

Fig 1: Fuel Pulse And Fuel Level Communication Diagram
G03642671Courtesy of AMERICAN HONDA MOTOR CO., INC.
