Rearview Camera Control Unit Inputs and Outputs for Connector A (7P)

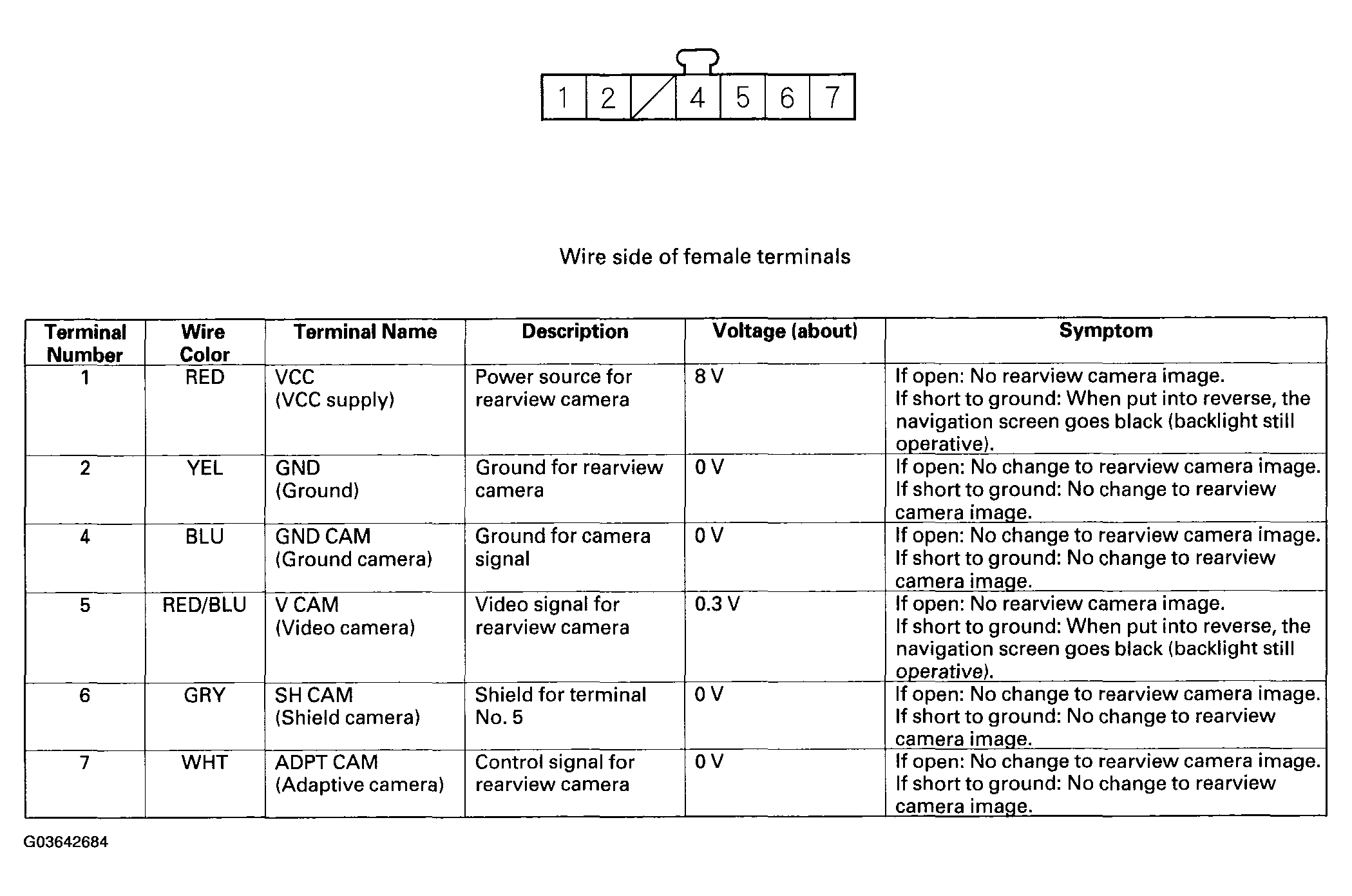

Fig 1: Rearview Of Camera Inputs And Outputs For (7P) Connector
G03642684Courtesy of AMERICAN HONDA MOTOR CO., INC.
