Wiper/Washer Switch Test/Replacement

Remove the dashboard lower cover (see DRIVER'S DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
Disconnect the 8P connectors (A) from the wiper/washer switch (B), then remove the two screws and the switch.

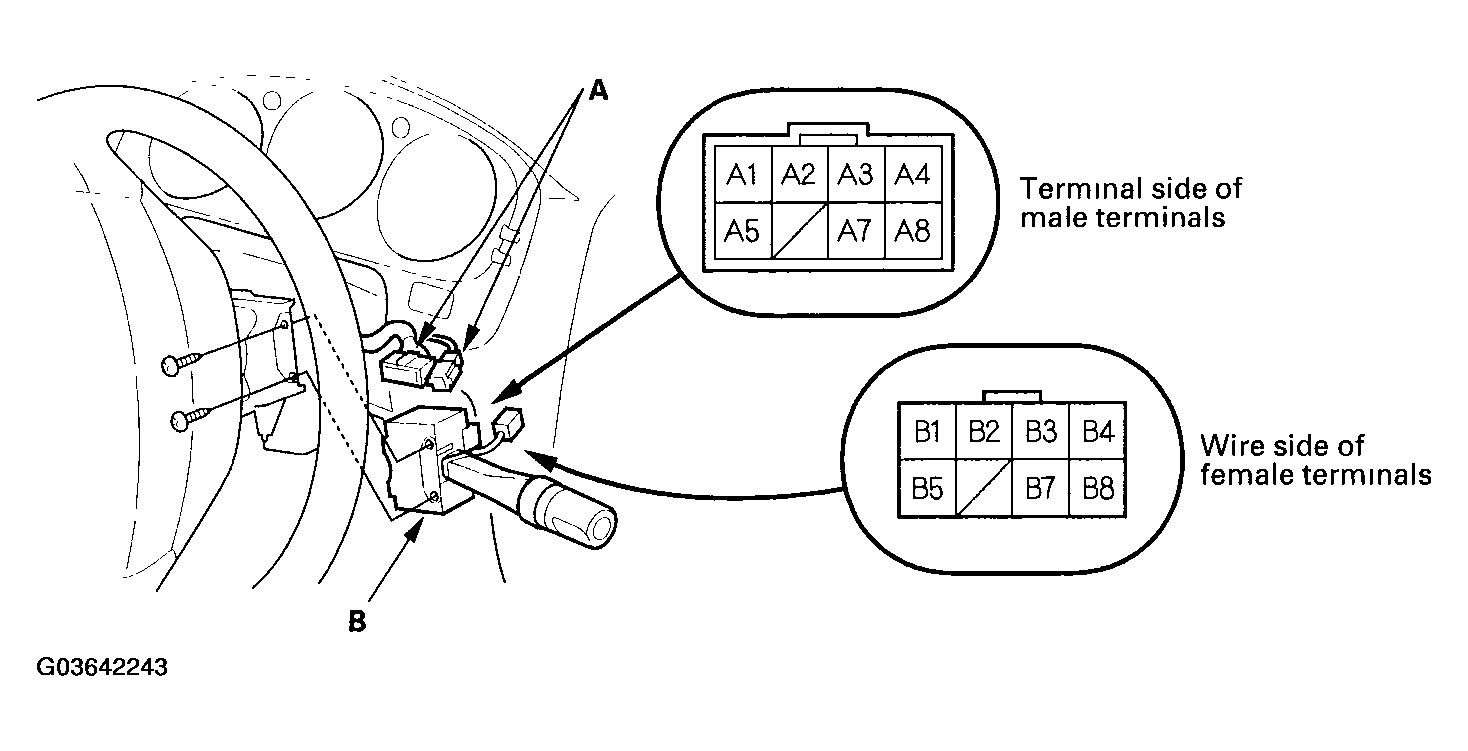

Fig 1: Disconnecting 8P Connectors From Wiper/Washer Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

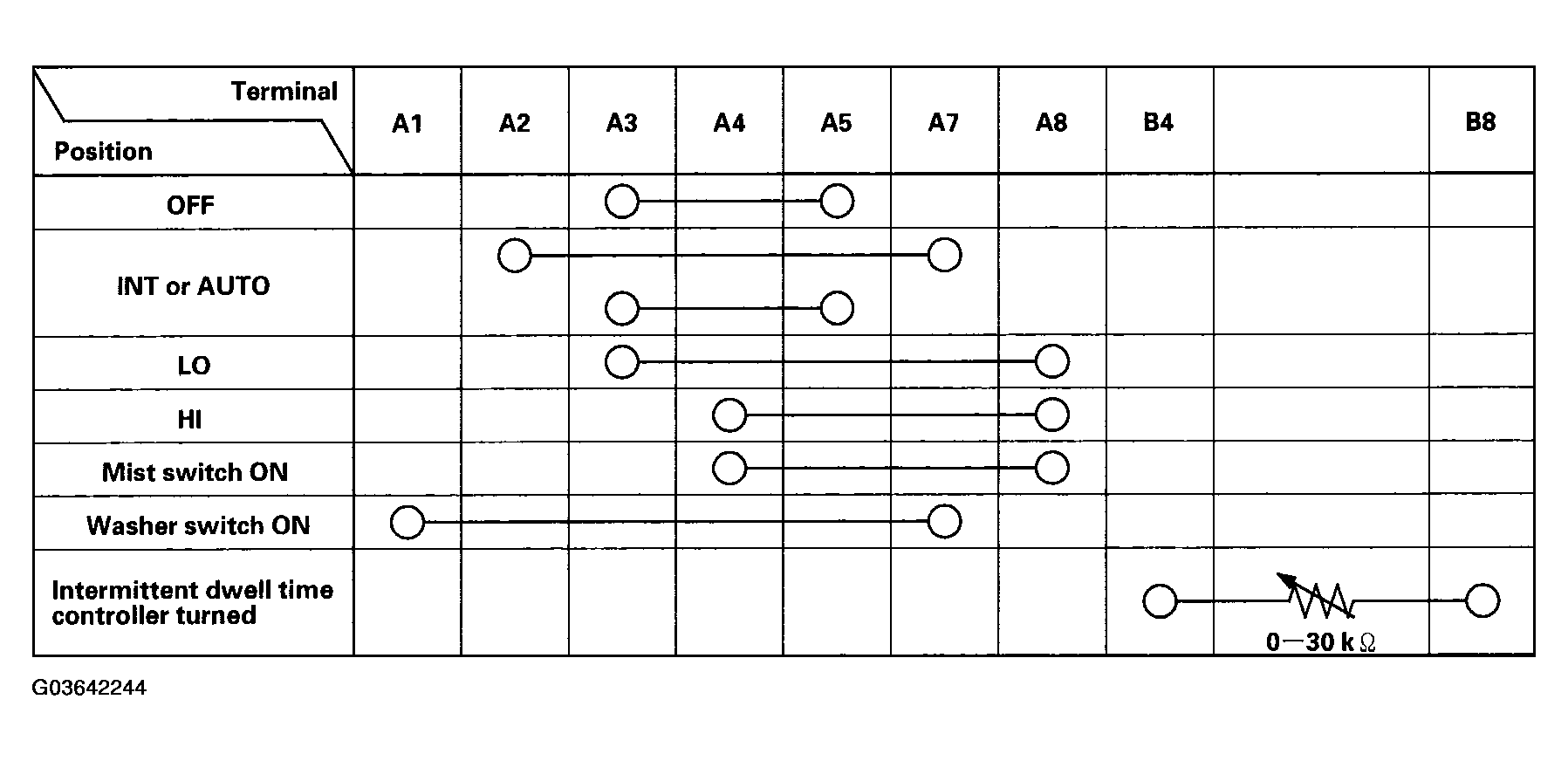

Fig 2: Checking Continuity Between Terminals In Each Switch Position (Windshield)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

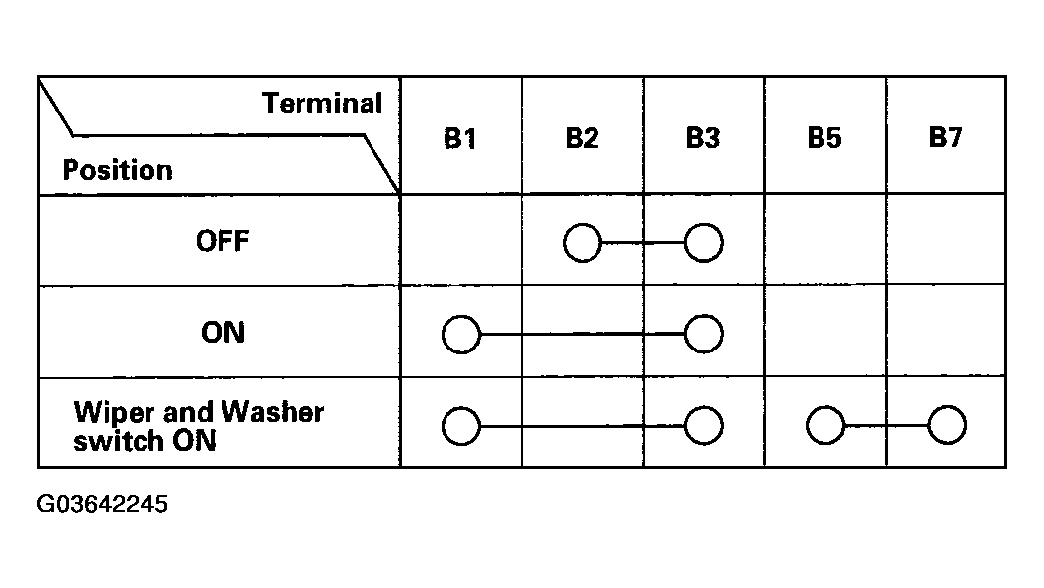

Fig 3: Checking Continuity Between Terminals In Each Switch Position (Rear Window)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity check is not as specified, replace the switch.
