Side View

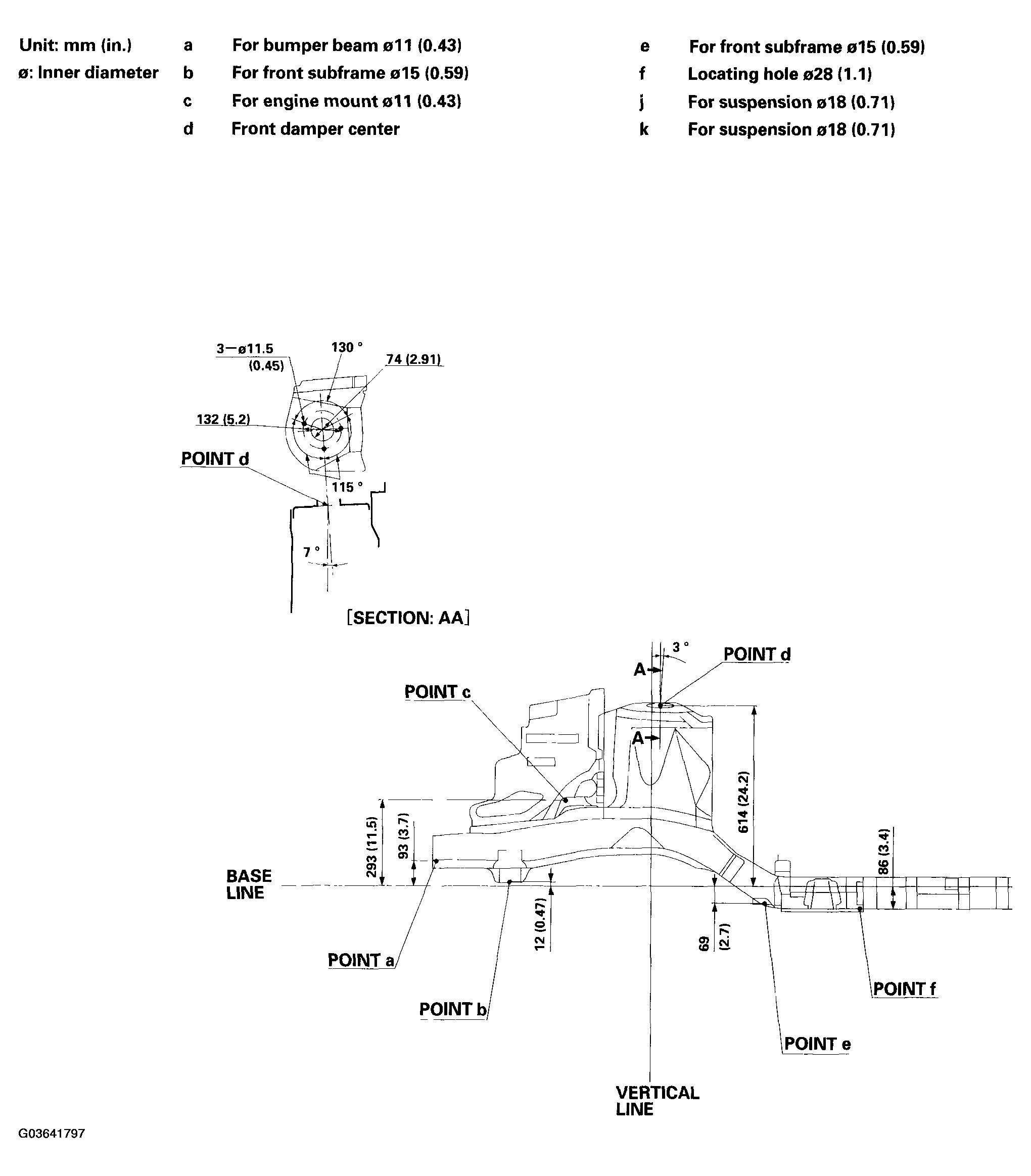

Fig 1: Frame Repair Chart (Side View - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Frame Repair Chart (Side View - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
