Intake Manifold Tuning (IMT) (Intake Manifold Runner Control (IMRC)) System

Engine power is adjusted by opening and closing the intake manifold tuning (IMT) (intake manifold runner control (IMRC)) actuator. When the valve is closed, there is high torque at low engine speed. When the valve is open, there is high torque at high engine speed. The intake manifold tuning (IMT) (intake manifold runner control (IMRC)) valve actuator contains a sensor that detects the IMT (IMRC) valve position and sends it to the PCM.

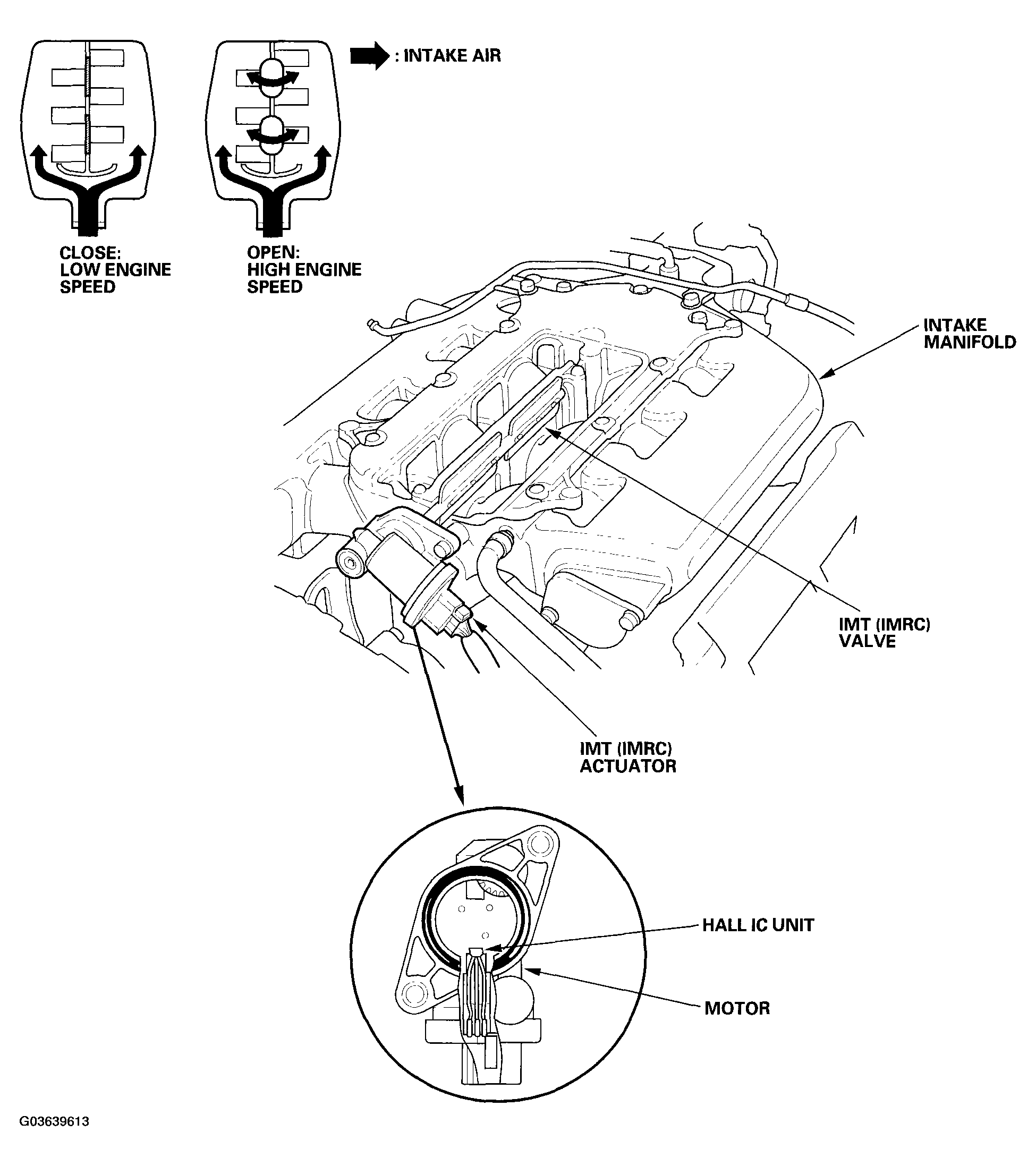

Fig 1: Identifying IMT (IMRC) System

G03639613

Courtesy of AMERICAN HONDA MOTOR CO., INC.

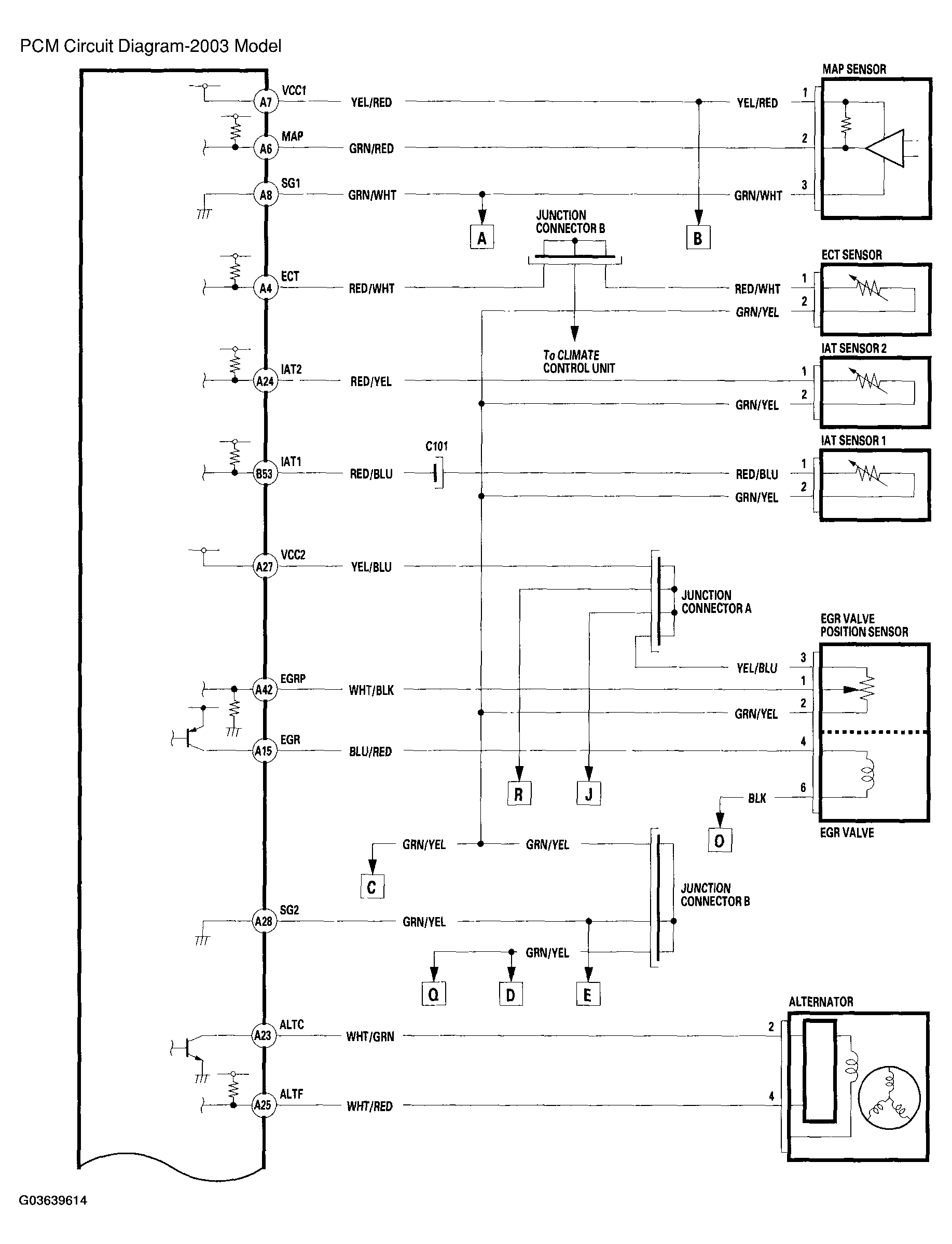

Fig 2: Identifying PCM Circuit Diagram (2003 Model - 1 Of 15)

G03639614

Courtesy of AMERICAN HONDA MOTOR CO., INC.

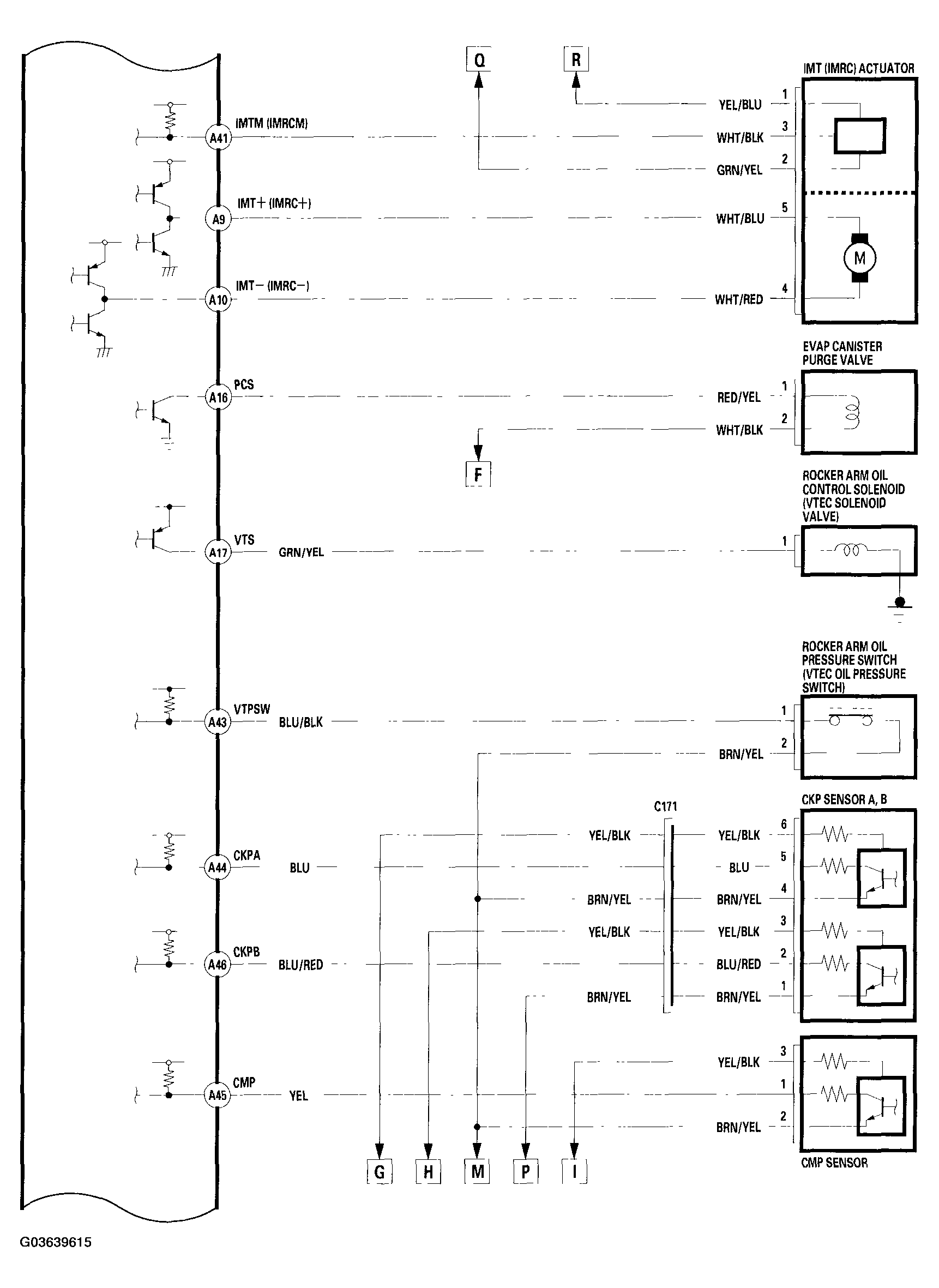

Fig 3: Identifying PCM Circuit Diagram (2003 Model - 2 Of 15)

G03639615

Courtesy of AMERICAN HONDA MOTOR CO., INC.

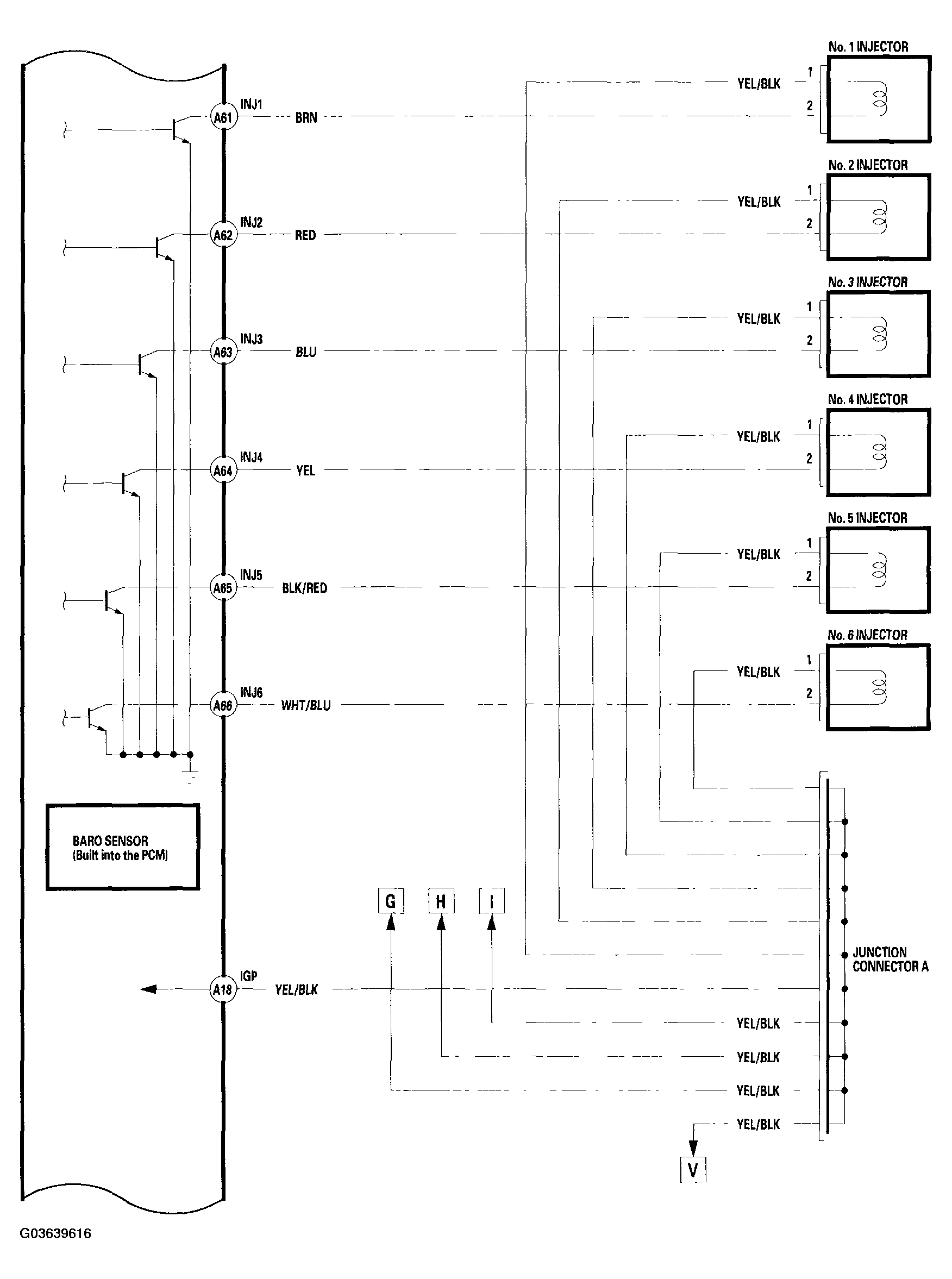

Fig 4: Identifying PCM Circuit Diagram (2003 Model - 3 Of 15)

G03639616

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Identifying PCM Circuit Diagram (2003 Model - 4 Of 15)

G03639617

Courtesy of AMERICAN HONDA MOTOR CO., INC.

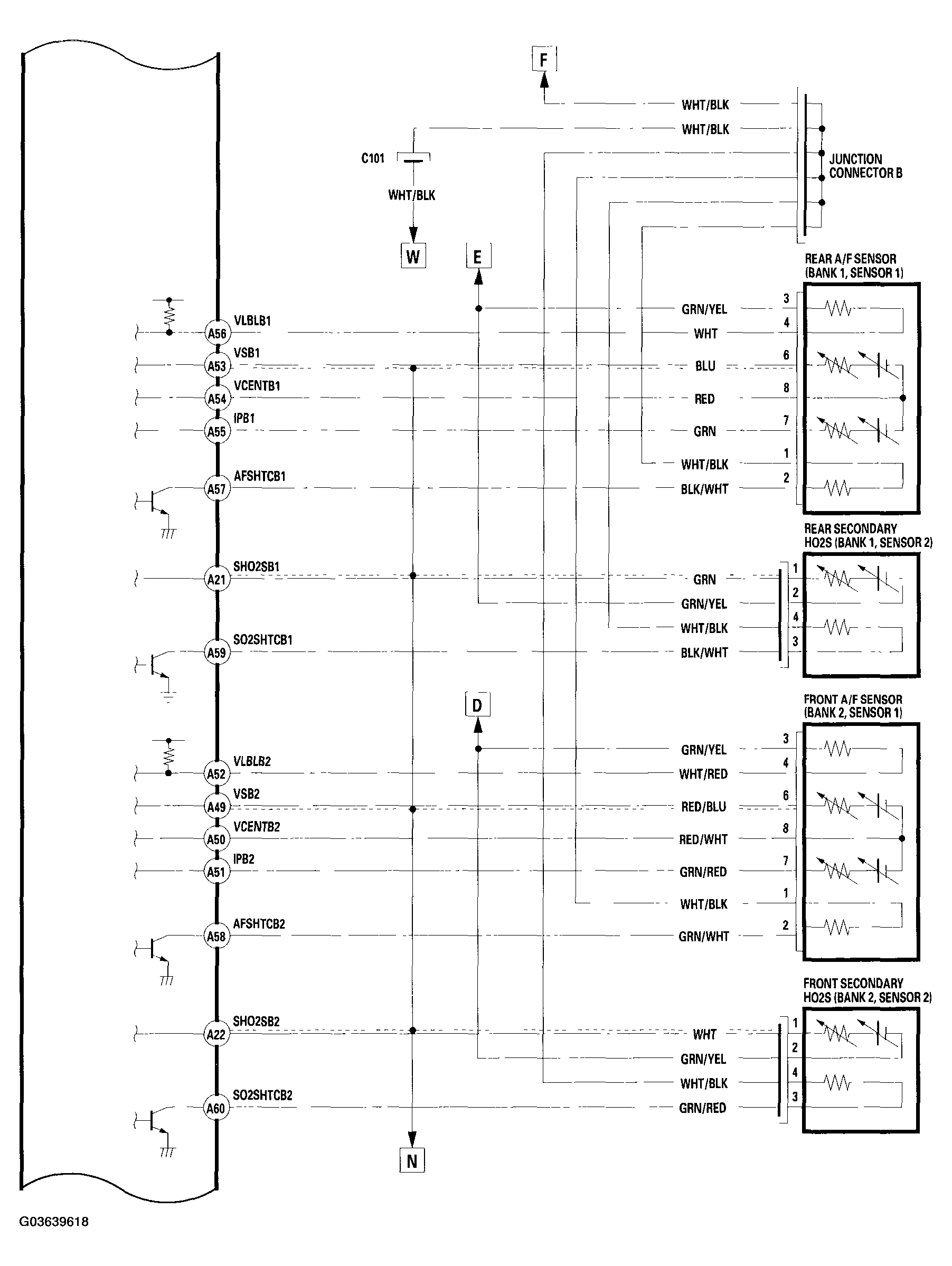

Fig 6: Identifying PCM Circuit Diagram (2003 Model - 5 Of 15)

G03639618

Courtesy of AMERICAN HONDA MOTOR CO., INC.

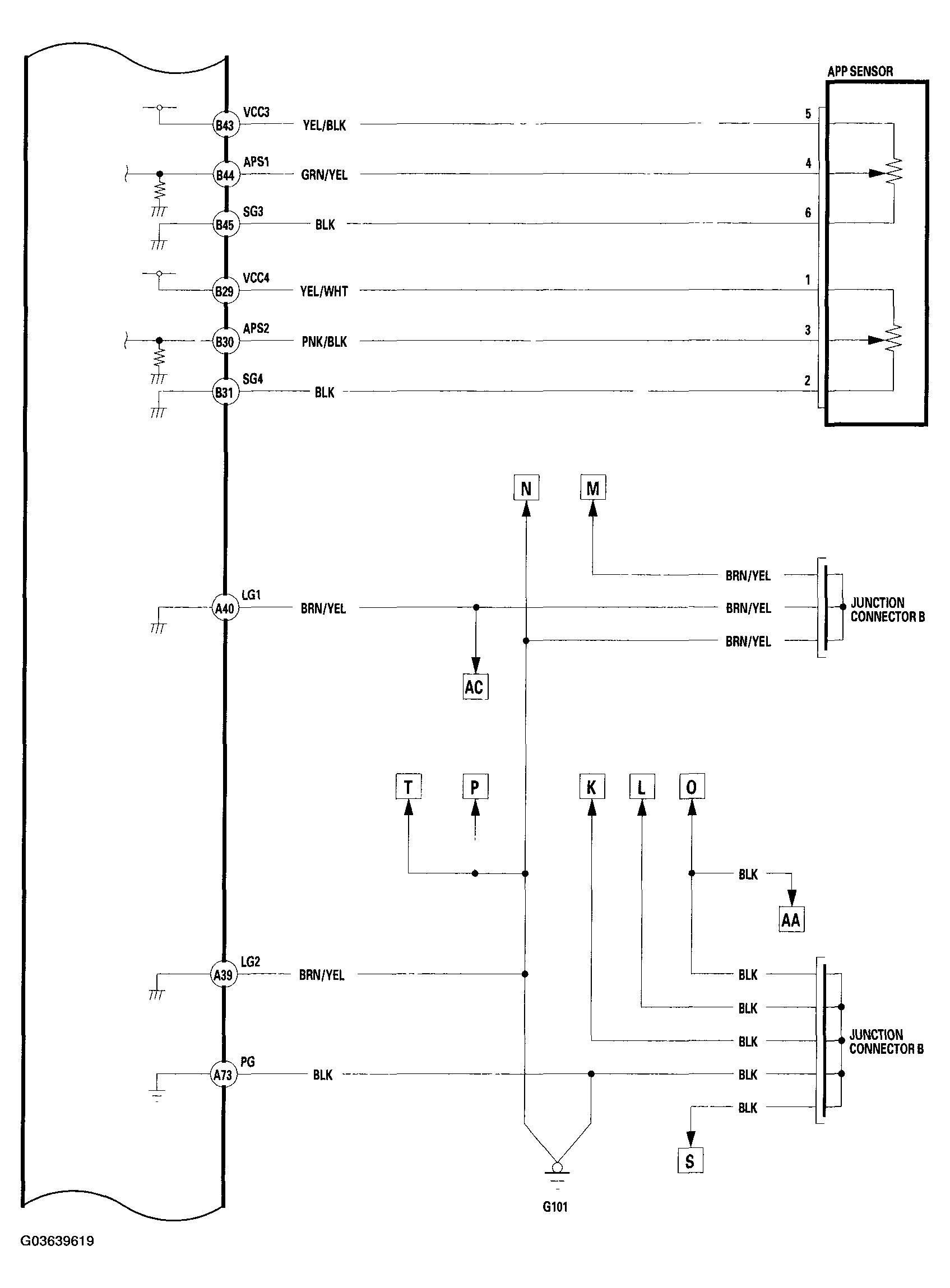

Fig 7: Identifying PCM Circuit Diagram (2003 Model - 6 Of 15)

G03639619

Courtesy of AMERICAN HONDA MOTOR CO., INC.

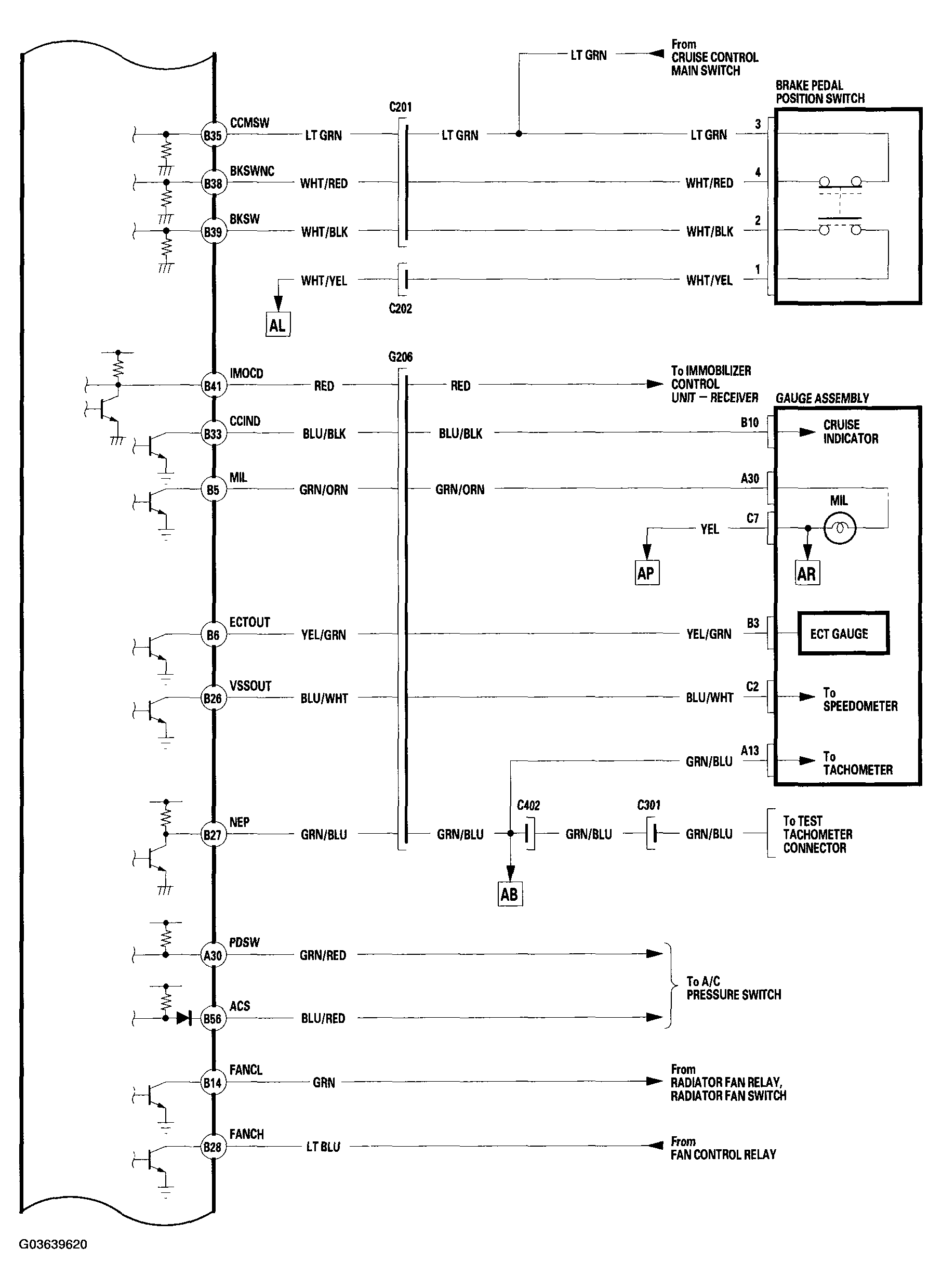

Fig 8: Identifying PCM Circuit Diagram (2003 Model - 7 Of 15)

G03639620

Courtesy of AMERICAN HONDA MOTOR CO., INC.

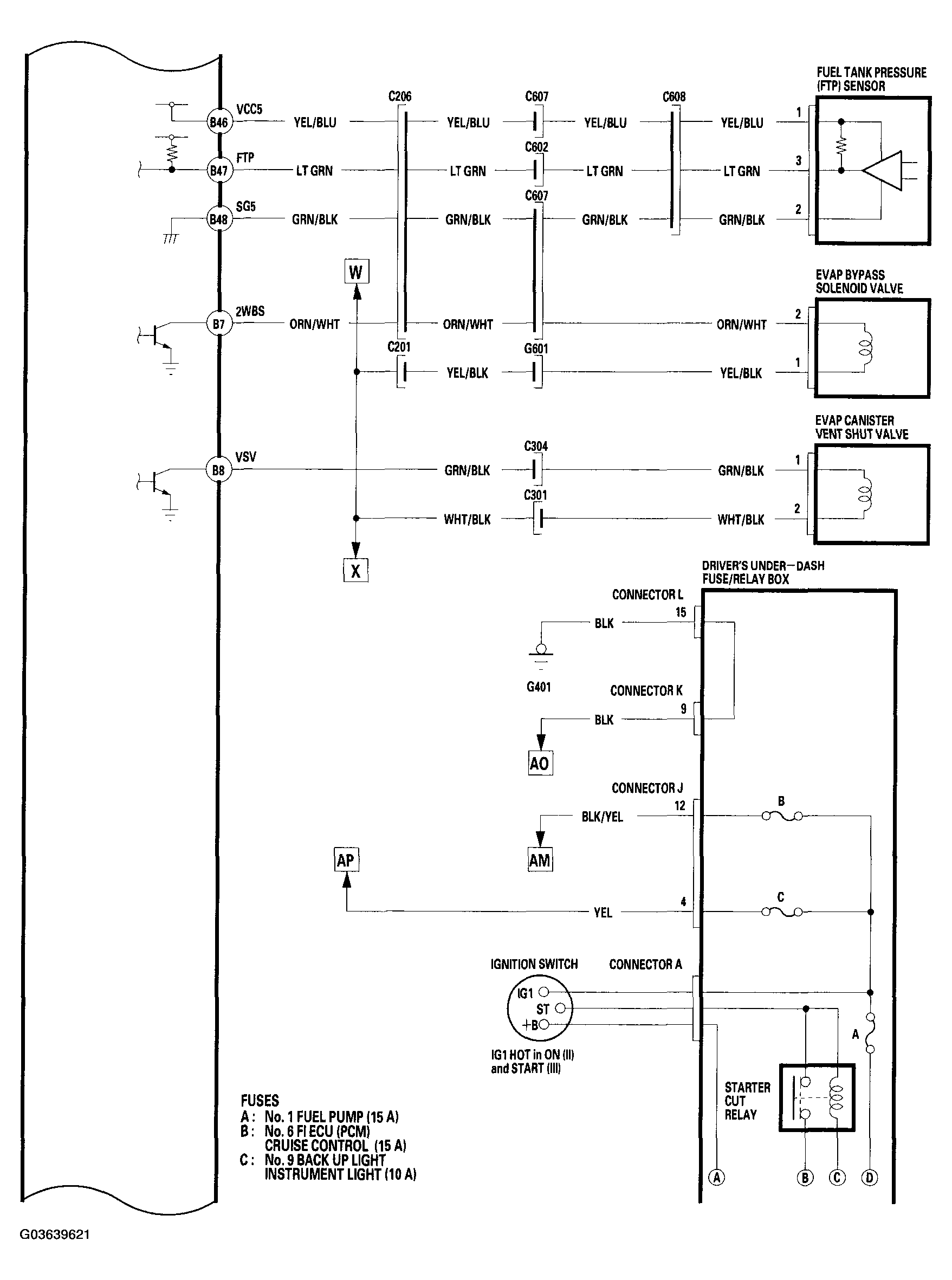

Fig 9: Identifying PCM Circuit Diagram (2003 Model - 8 Of 15)

G03639621

Courtesy of AMERICAN HONDA MOTOR CO., INC.

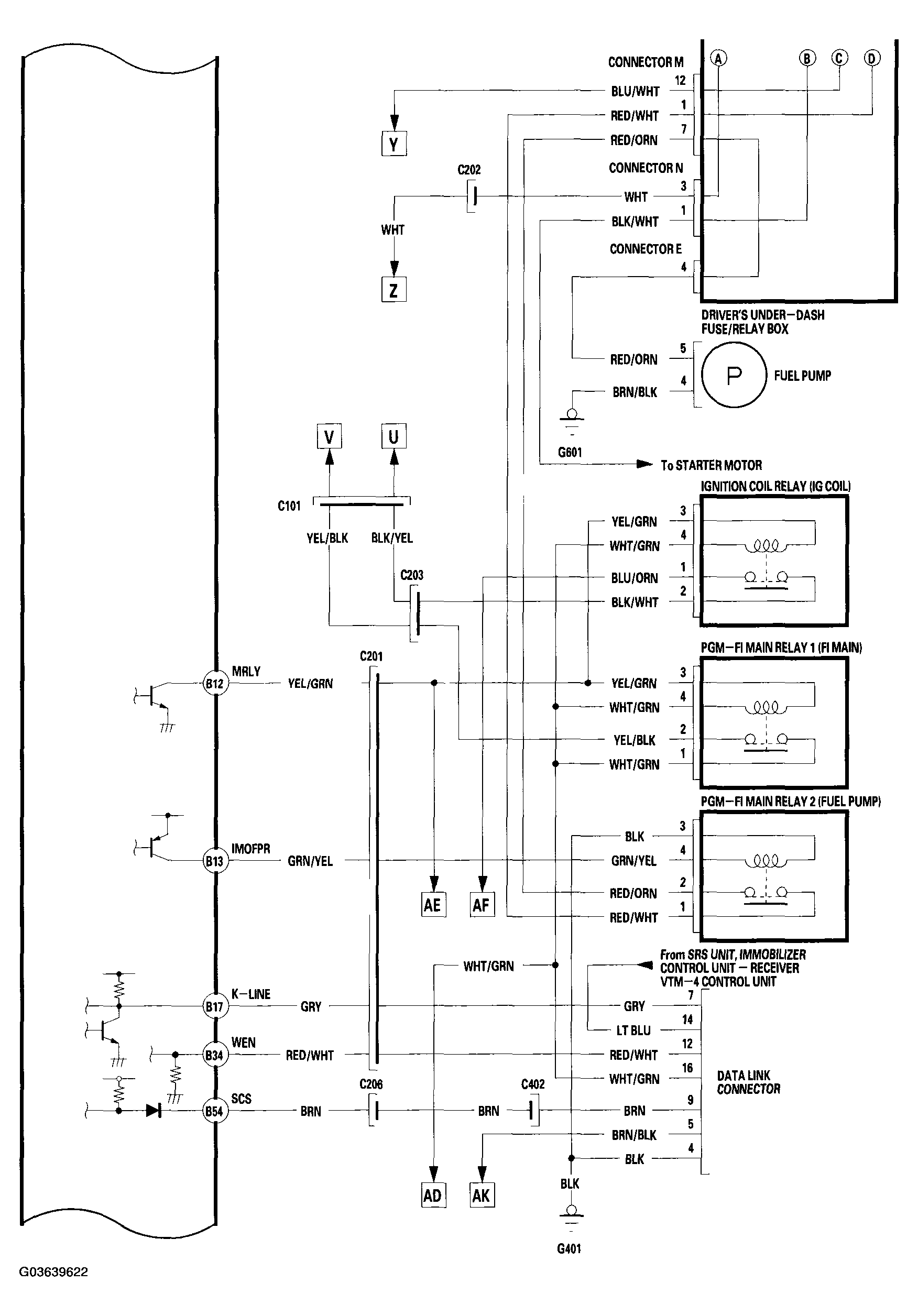

Fig 10: Identifying PCM Circuit Diagram (2003 Model - 9 Of 15)

G03639622

Courtesy of AMERICAN HONDA MOTOR CO., INC.

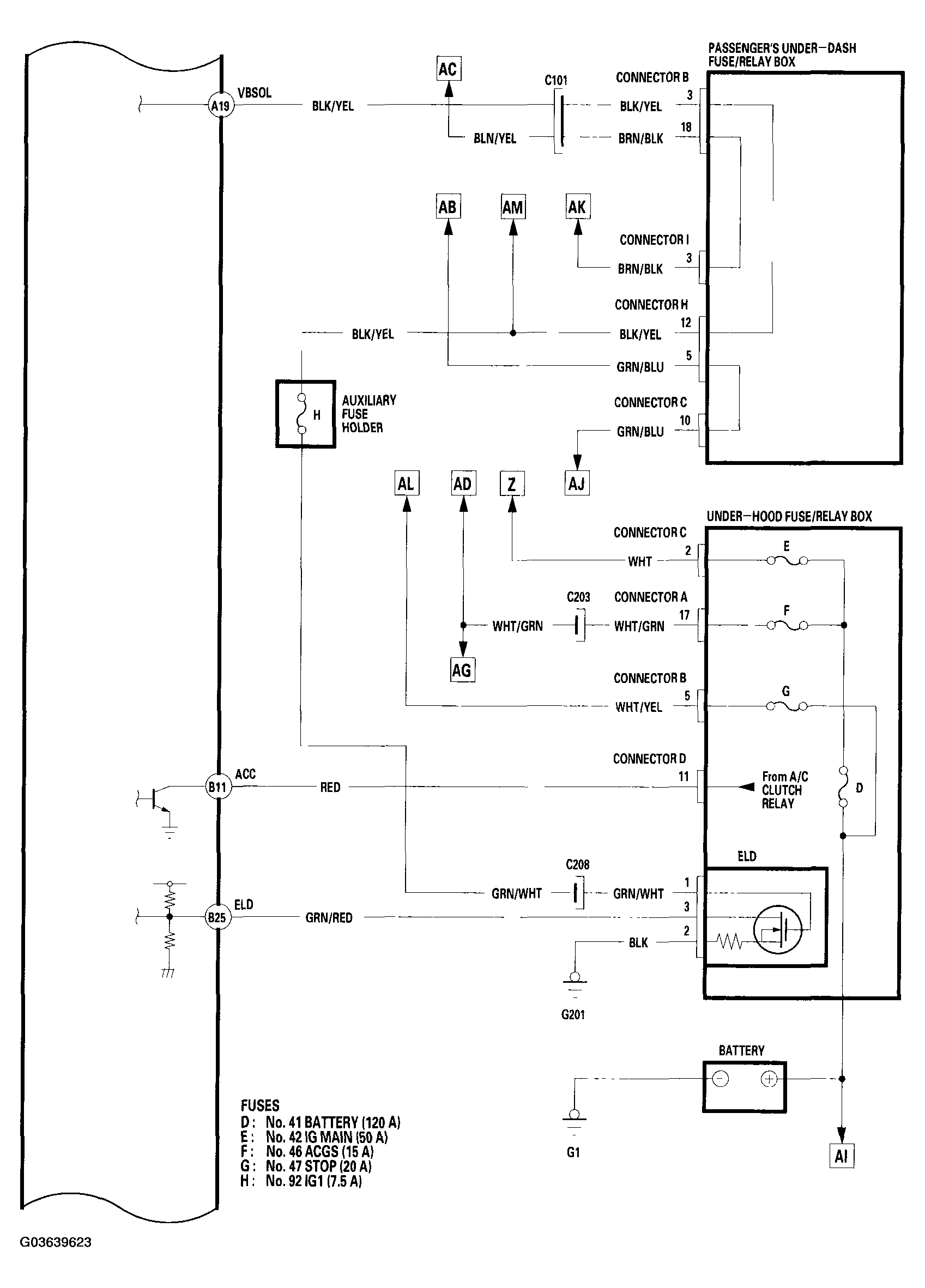

Fig 11: Identifying PCM Circuit Diagram (2003 Model - 10 Of 15)

G03639623

Courtesy of AMERICAN HONDA MOTOR CO., INC.

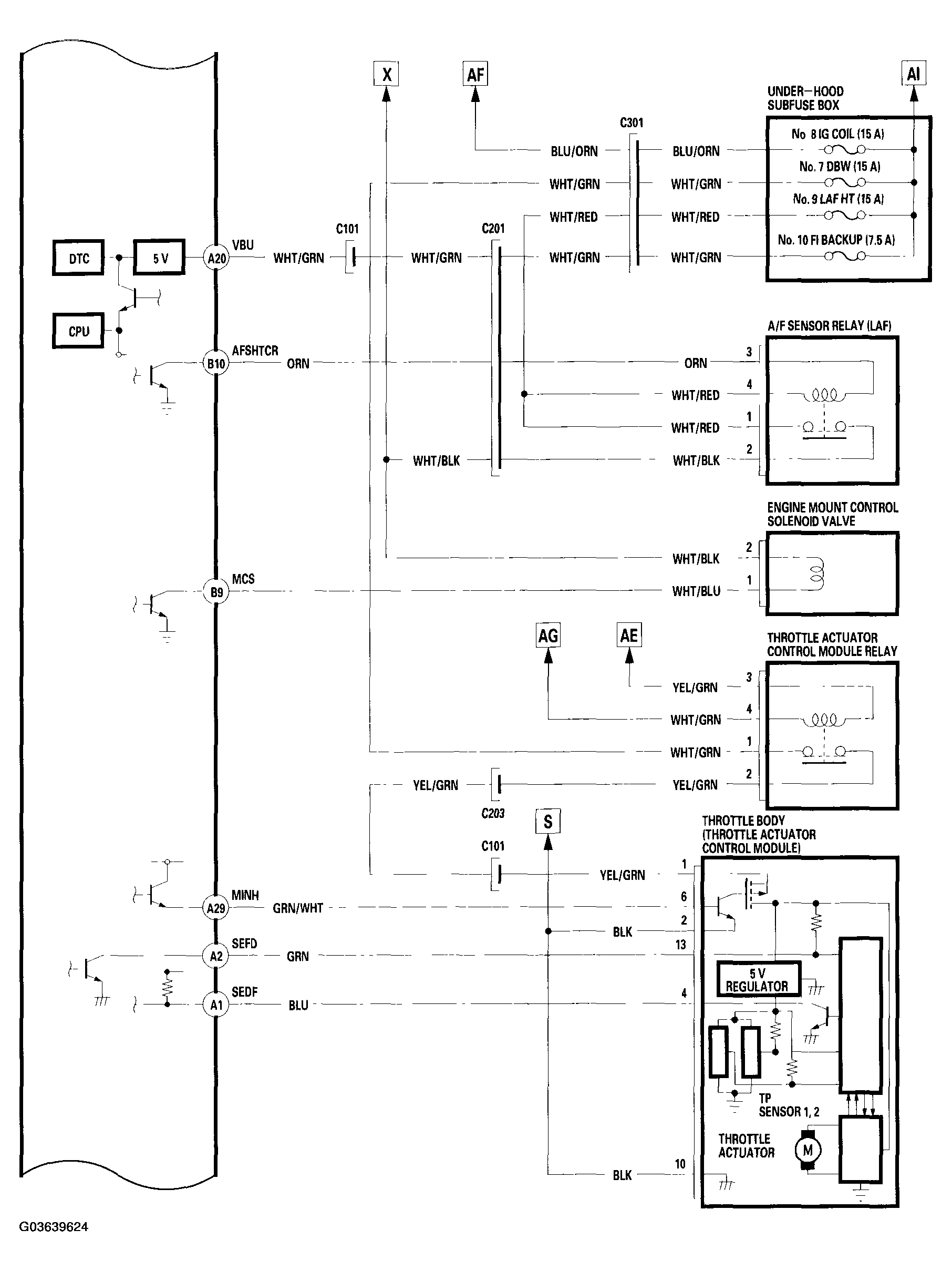

Fig 12: Identifying PCM Circuit Diagram (2003 Model - 11 Of 15)

G03639624

Courtesy of AMERICAN HONDA MOTOR CO., INC.

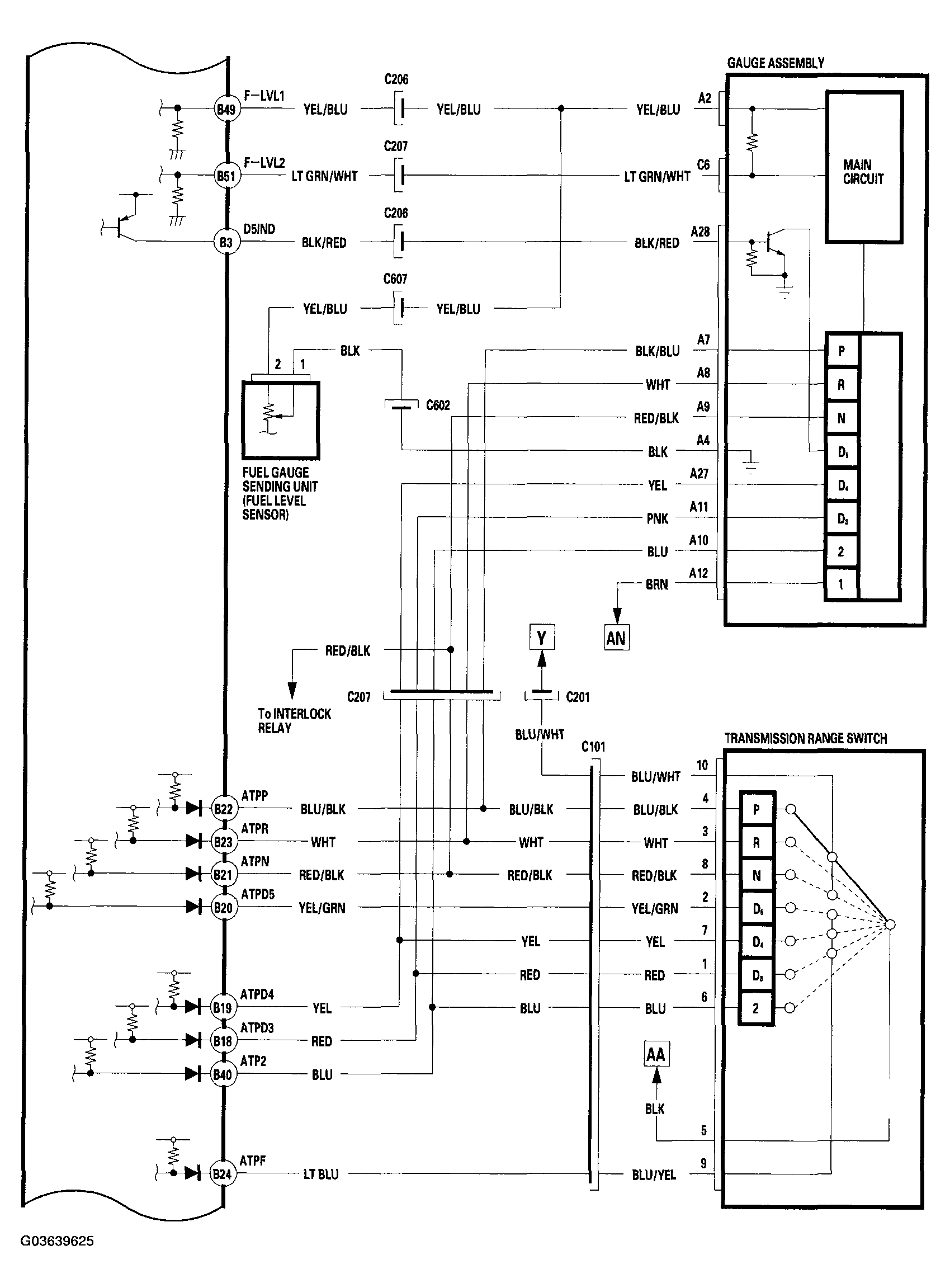

Fig 13: Identifying PCM Circuit Diagram (2003 Model - 12 Of 15)

G03639625

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Identifying PCM Circuit Diagram (2003 Model - 13 Of 15)

G03639626

Courtesy of AMERICAN HONDA MOTOR CO., INC.

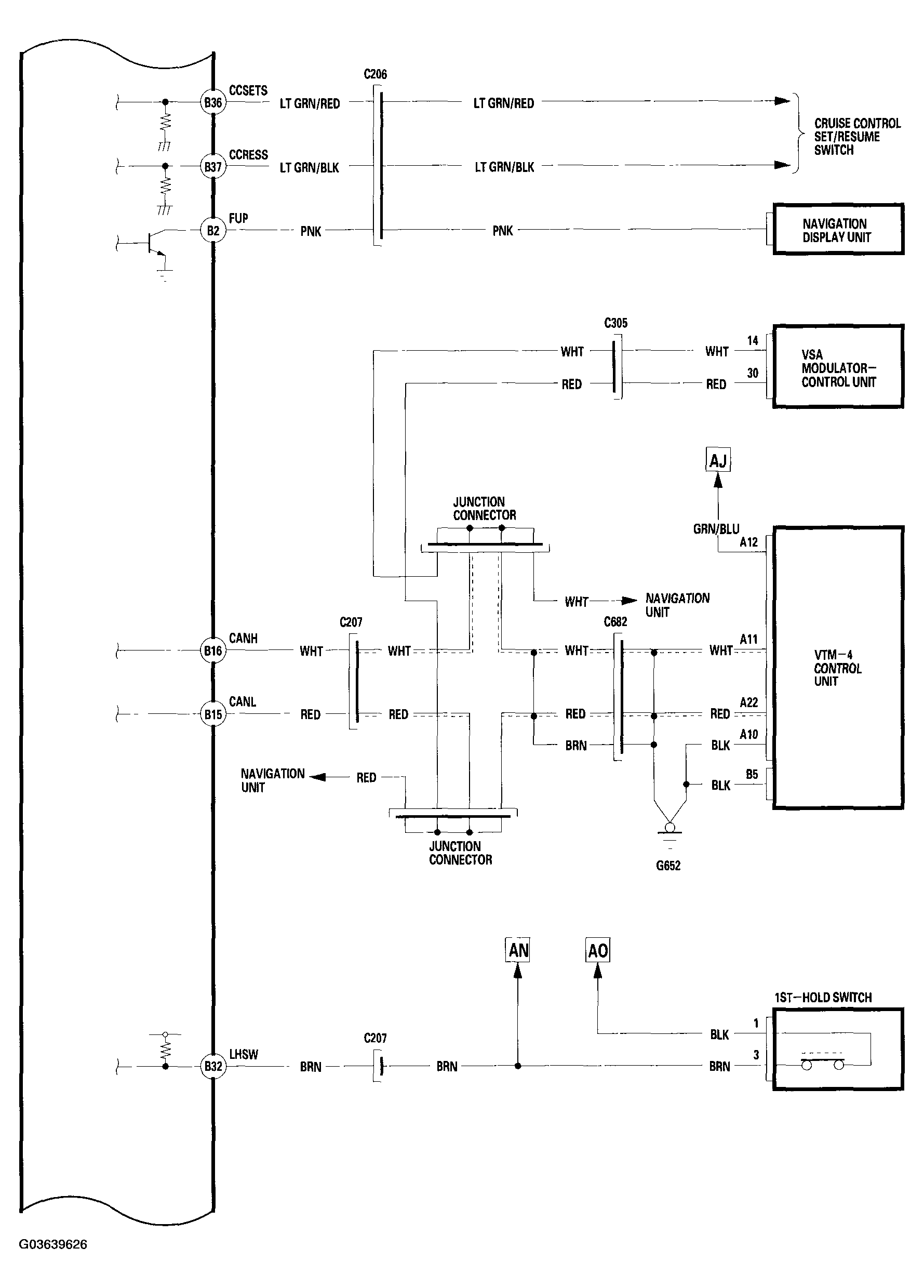

Fig 15: Identifying PCM Circuit Diagram (2003 Model - 14 Of 15)

G03639627

Courtesy of AMERICAN HONDA MOTOR CO., INC.

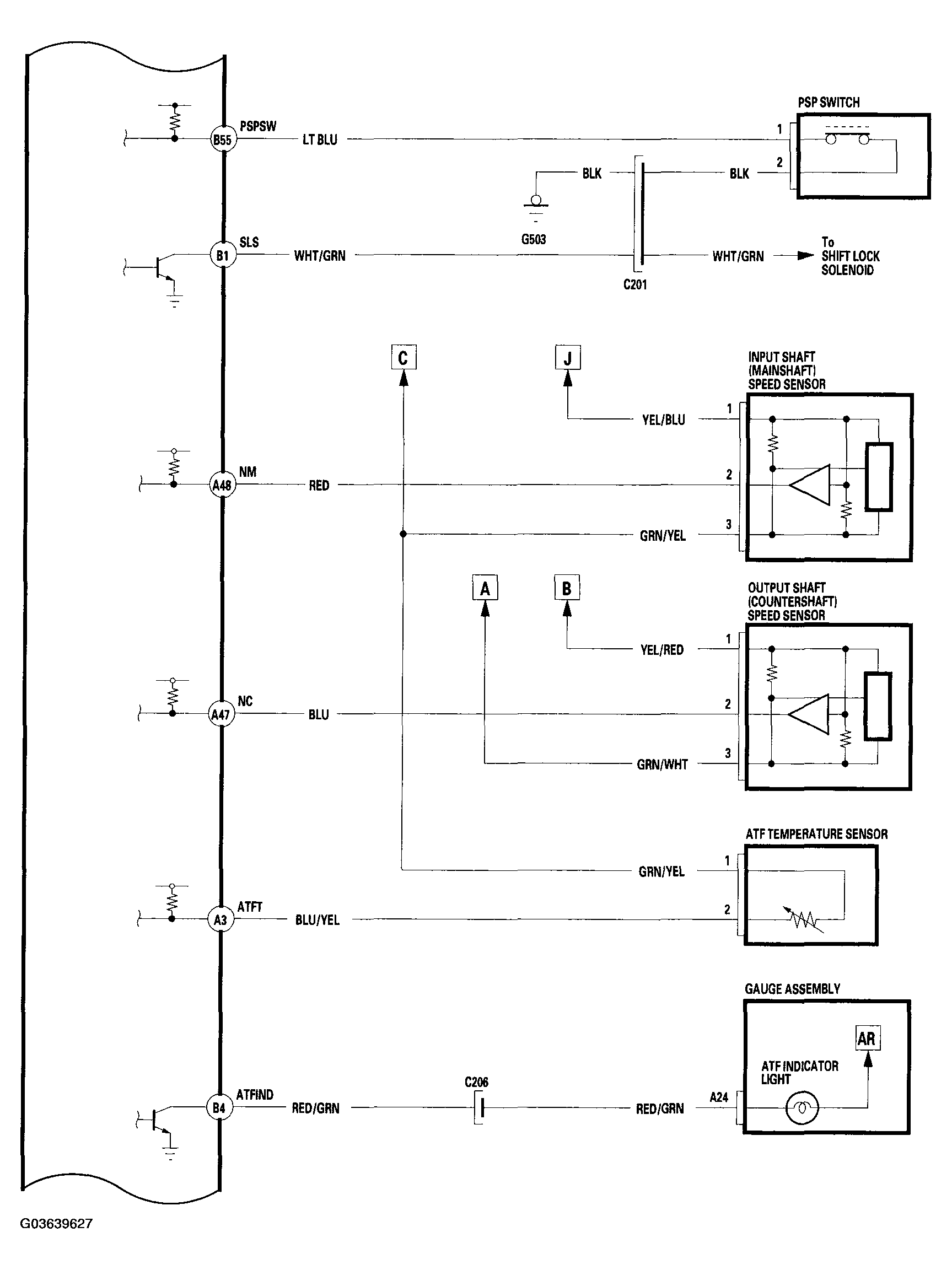

Fig 16: Identifying PCM Circuit Diagram (2003 Model - 15 Of 15)

G03639628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

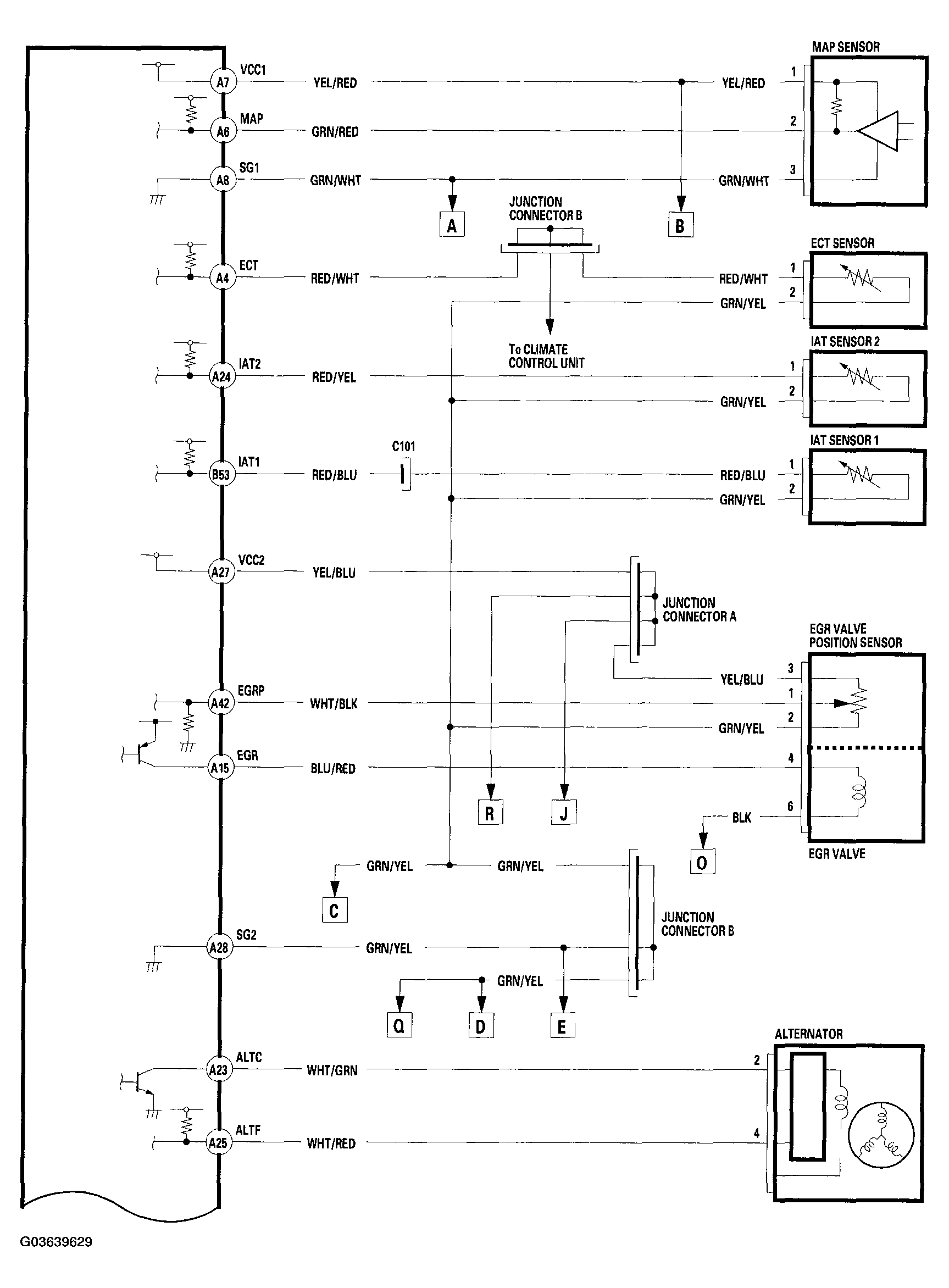

Fig 17: Identifying PCM Circuit Diagram (2004 Model - 1 Of 15)

G03639629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

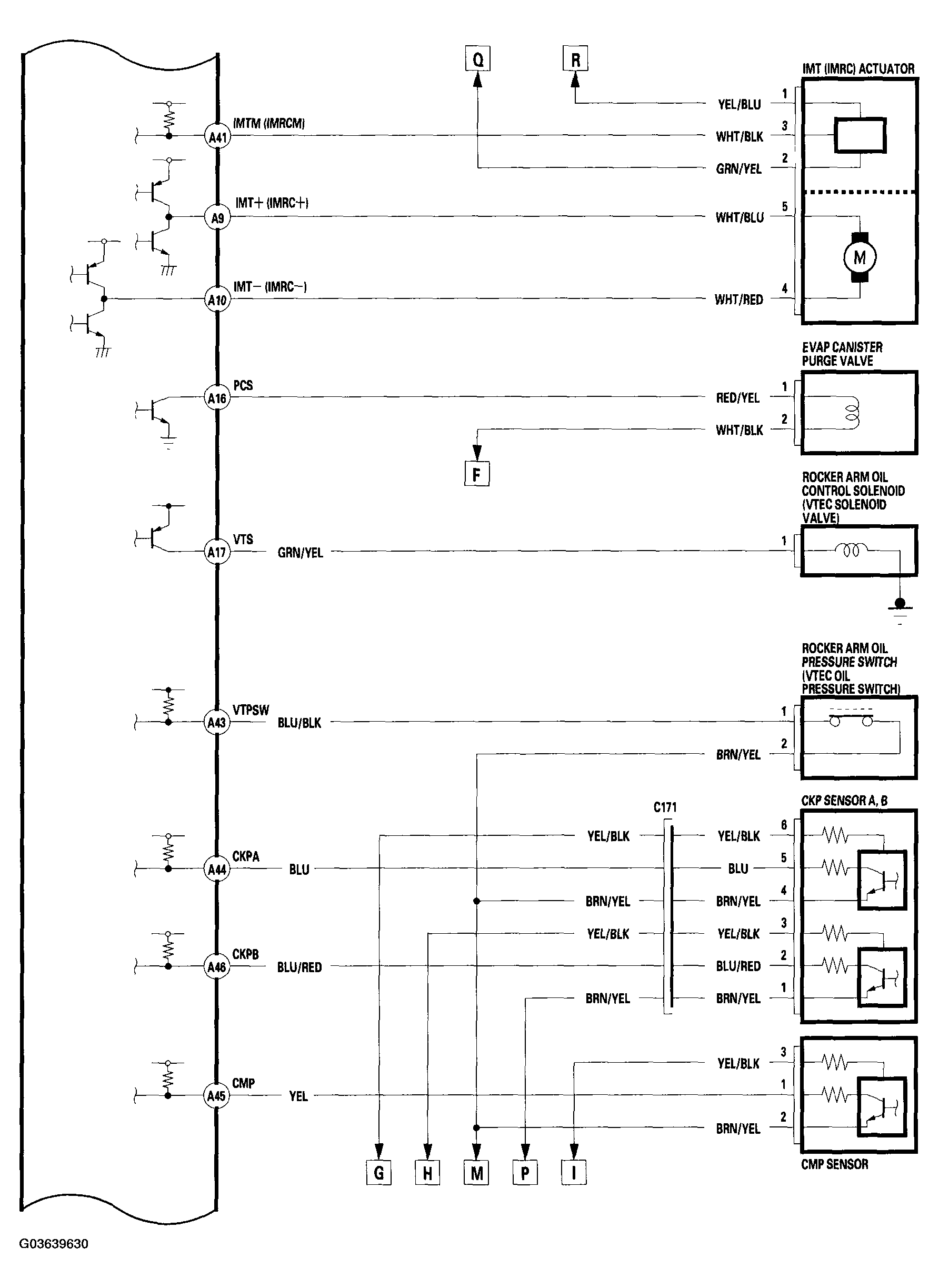

Fig 18: Identifying PCM Circuit Diagram (2004 Model - 2 Of 15)

G03639630

Courtesy of AMERICAN HONDA MOTOR CO., INC.

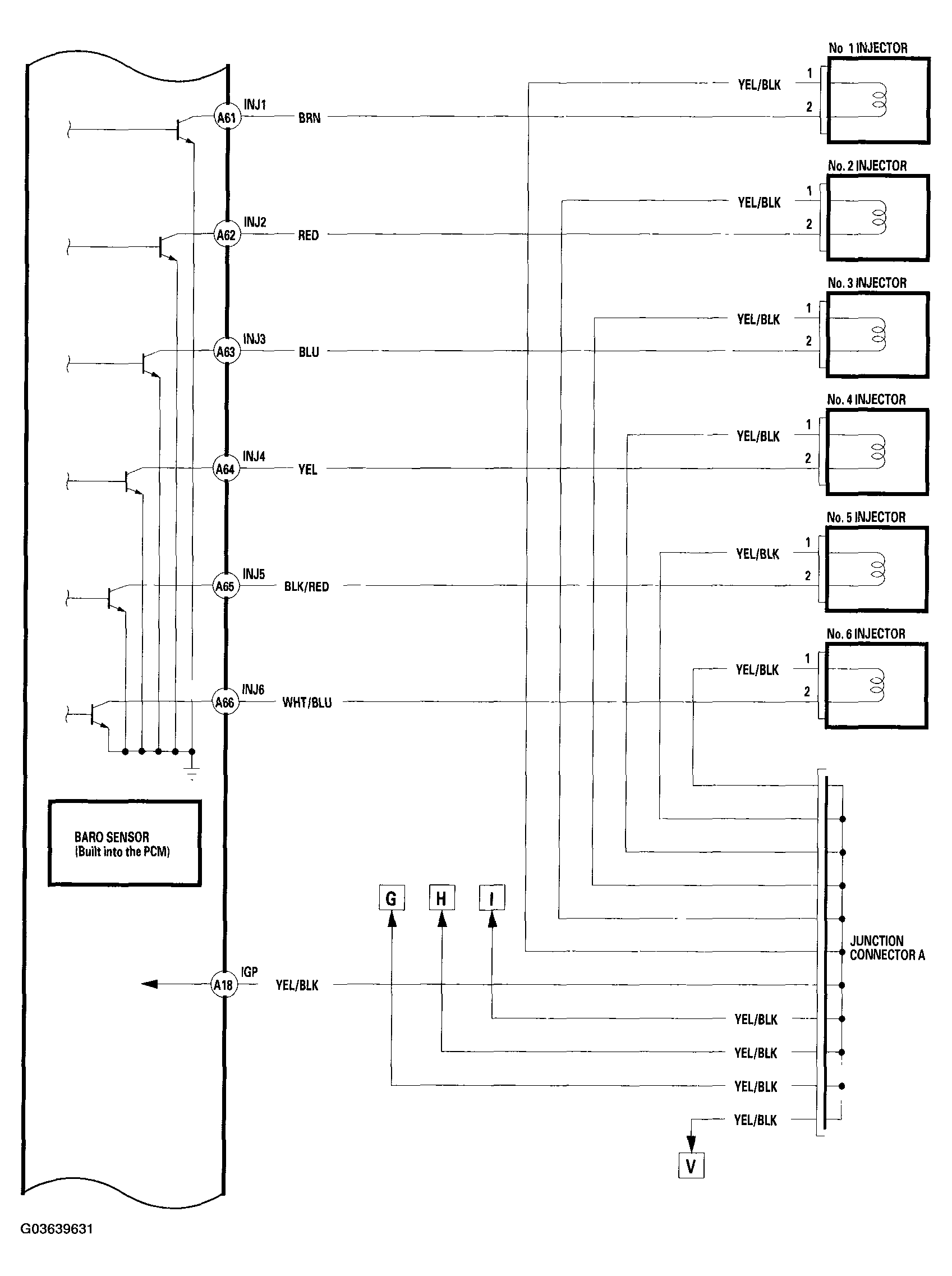

Fig 19: Identifying PCM Circuit Diagram (2004 Model - 3 Of 15)

G03639631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

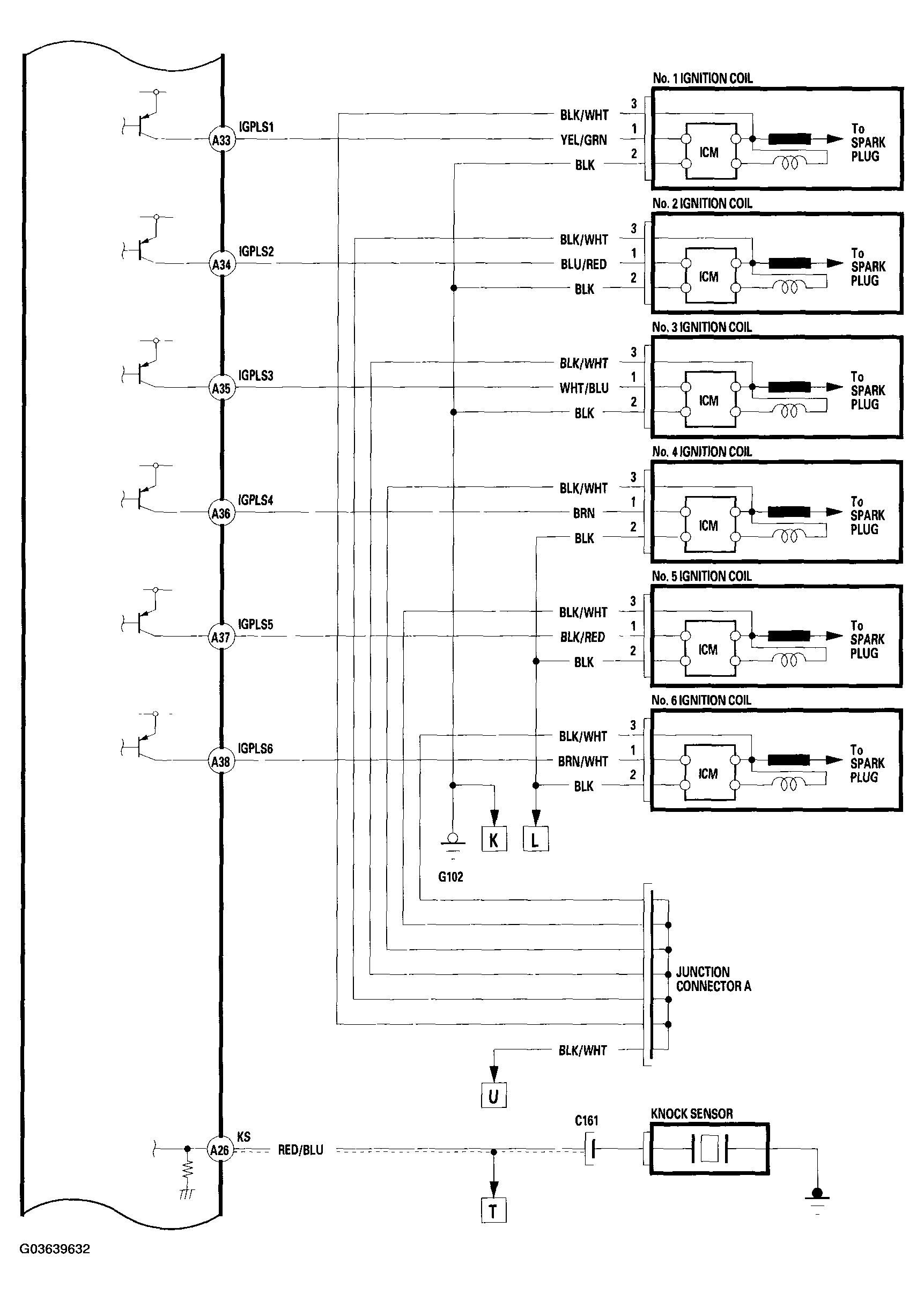

Fig 20: Identifying PCM Circuit Diagram (2004 Model - 4 Of 15)

G03639632

Courtesy of AMERICAN HONDA MOTOR CO., INC.

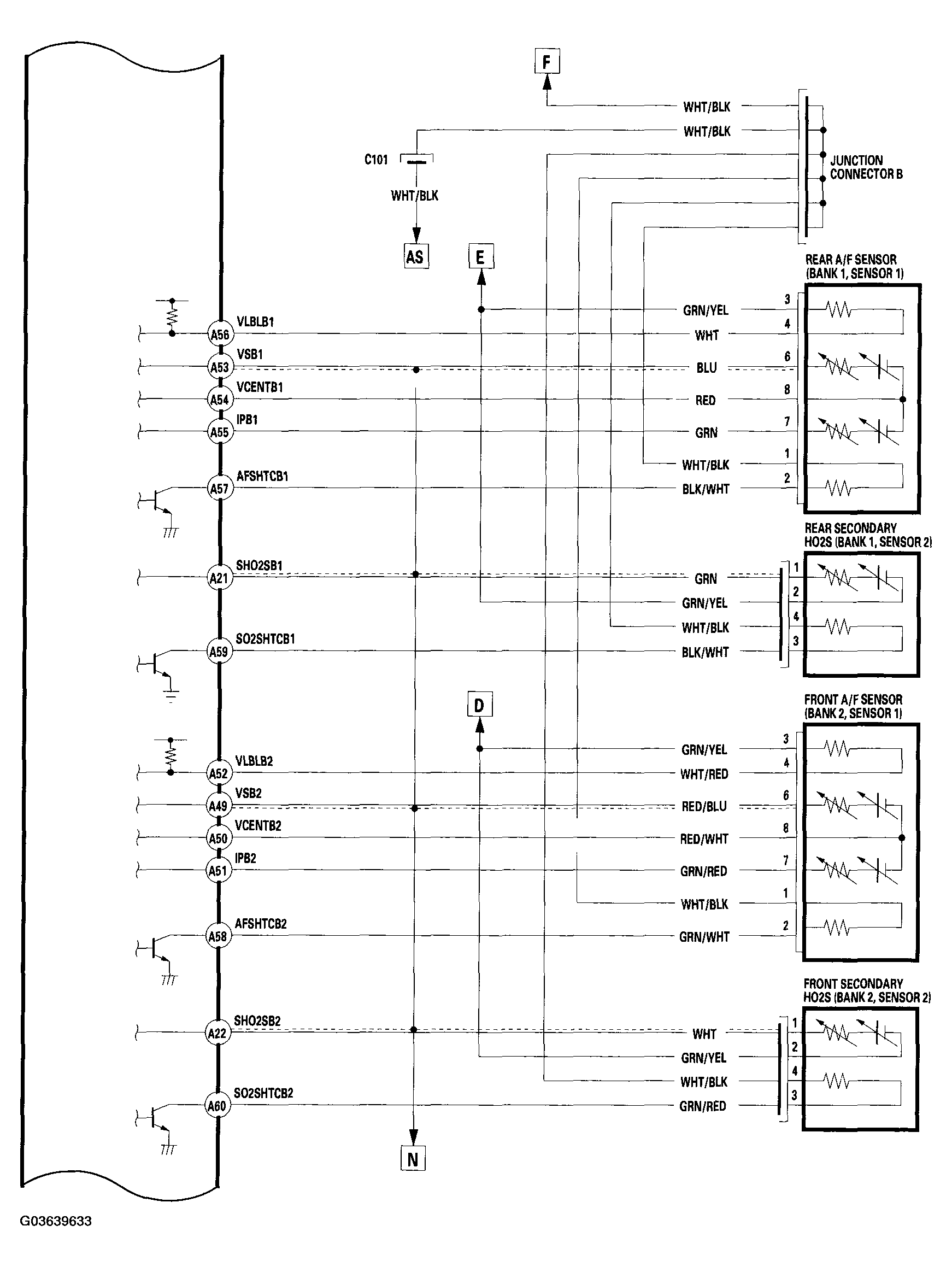

Fig 21: Identifying PCM Circuit Diagram (2004 Model - 5 Of 15)

G03639633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

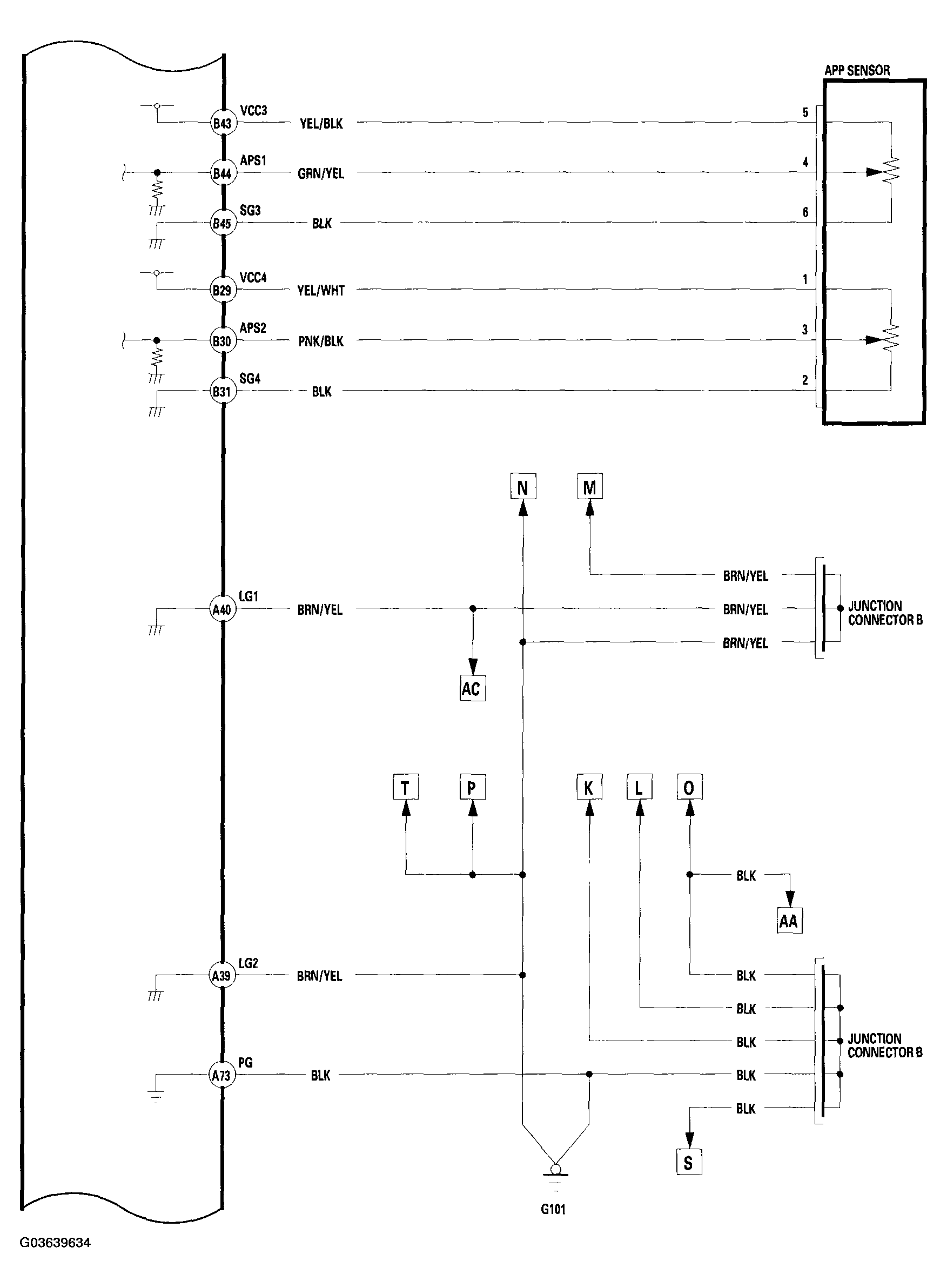

Fig 22: Identifying PCM Circuit Diagram (2004 Model - 6 Of 15)

G03639634

Courtesy of AMERICAN HONDA MOTOR CO., INC.

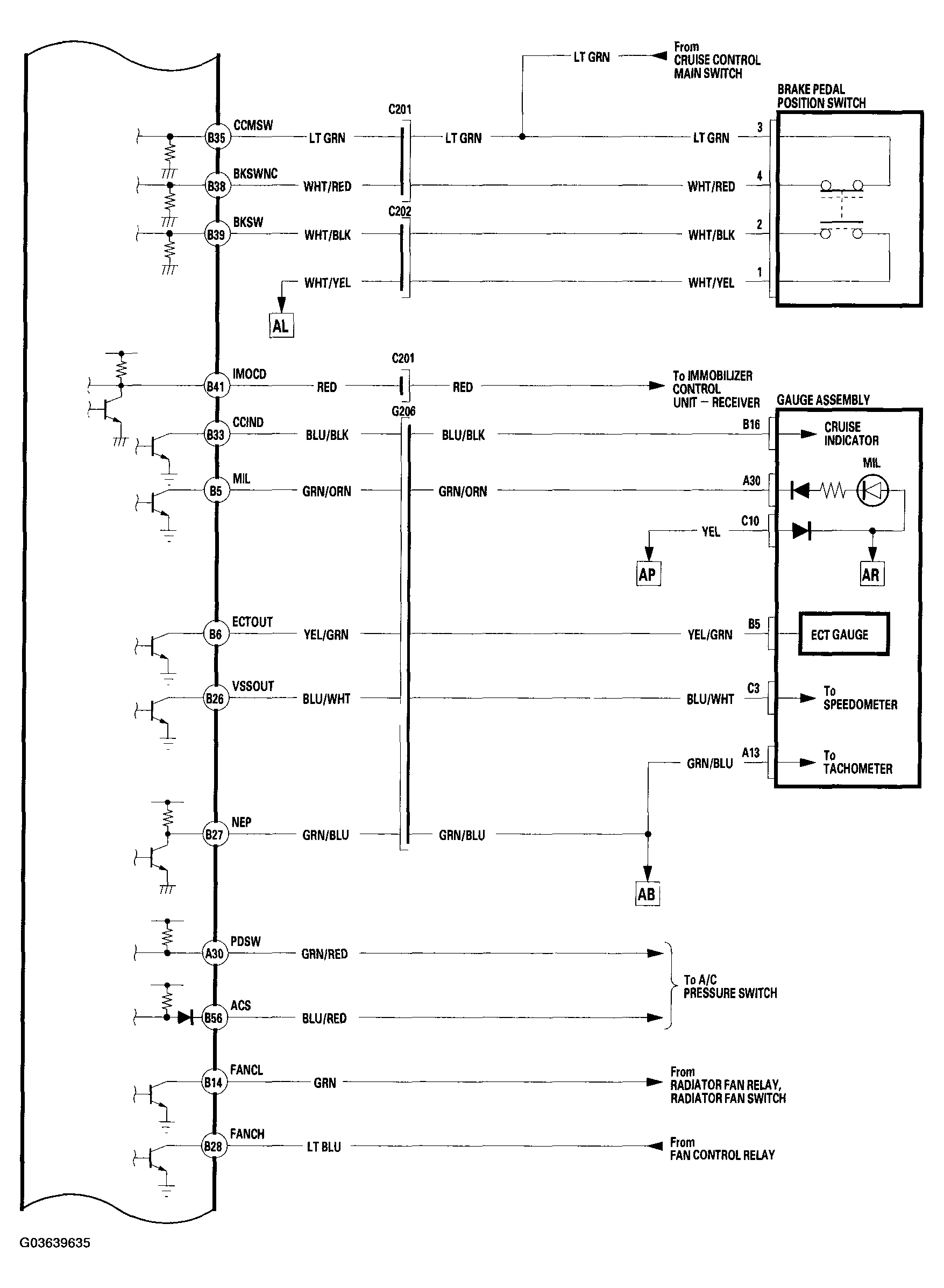

Fig 23: Identifying PCM Circuit Diagram (2004 Model - 7 Of 15)

G03639635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Identifying PCM Circuit Diagram (2004 Model - 8 Of 15)

G03639636

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Identifying PCM Circuit Diagram (2004 Model - 9 Of 15)

G03639637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

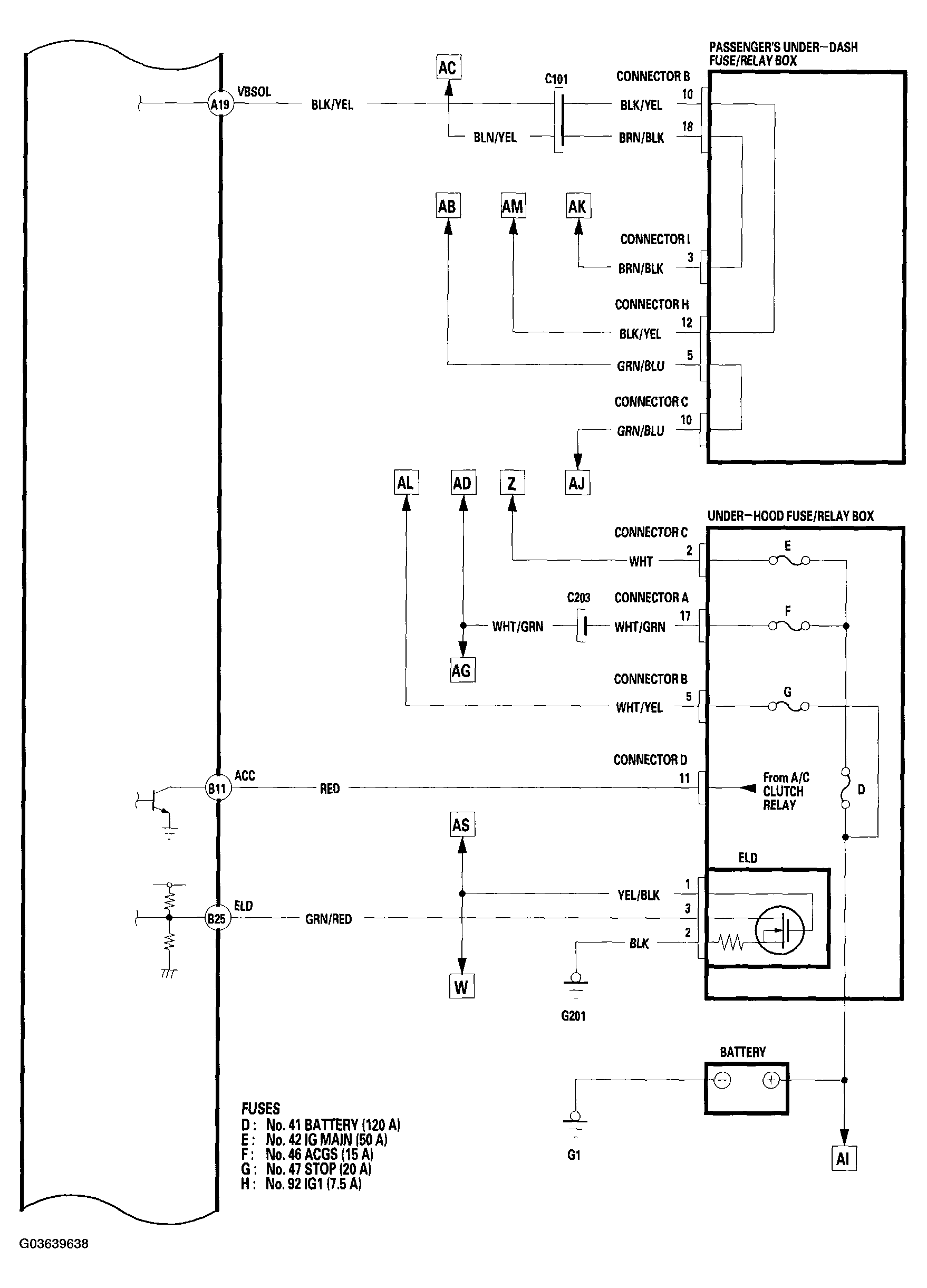

Fig 26: Identifying PCM Circuit Diagram (2004 Model - 10 Of 15)

G03639638

Courtesy of AMERICAN HONDA MOTOR CO., INC.

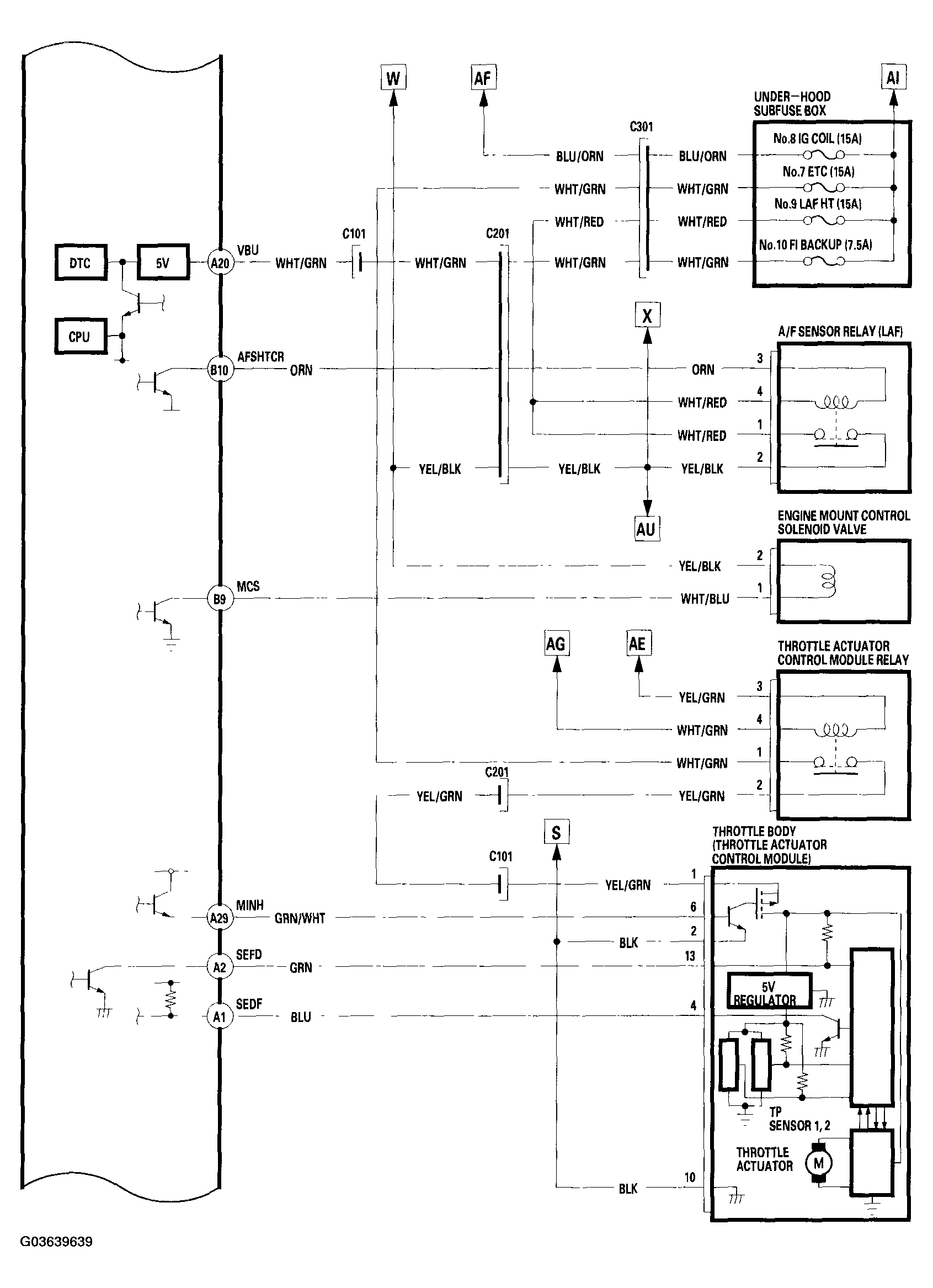

Fig 27: Identifying PCM Circuit Diagram (2004 Model - 11 Of 15)

G03639639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

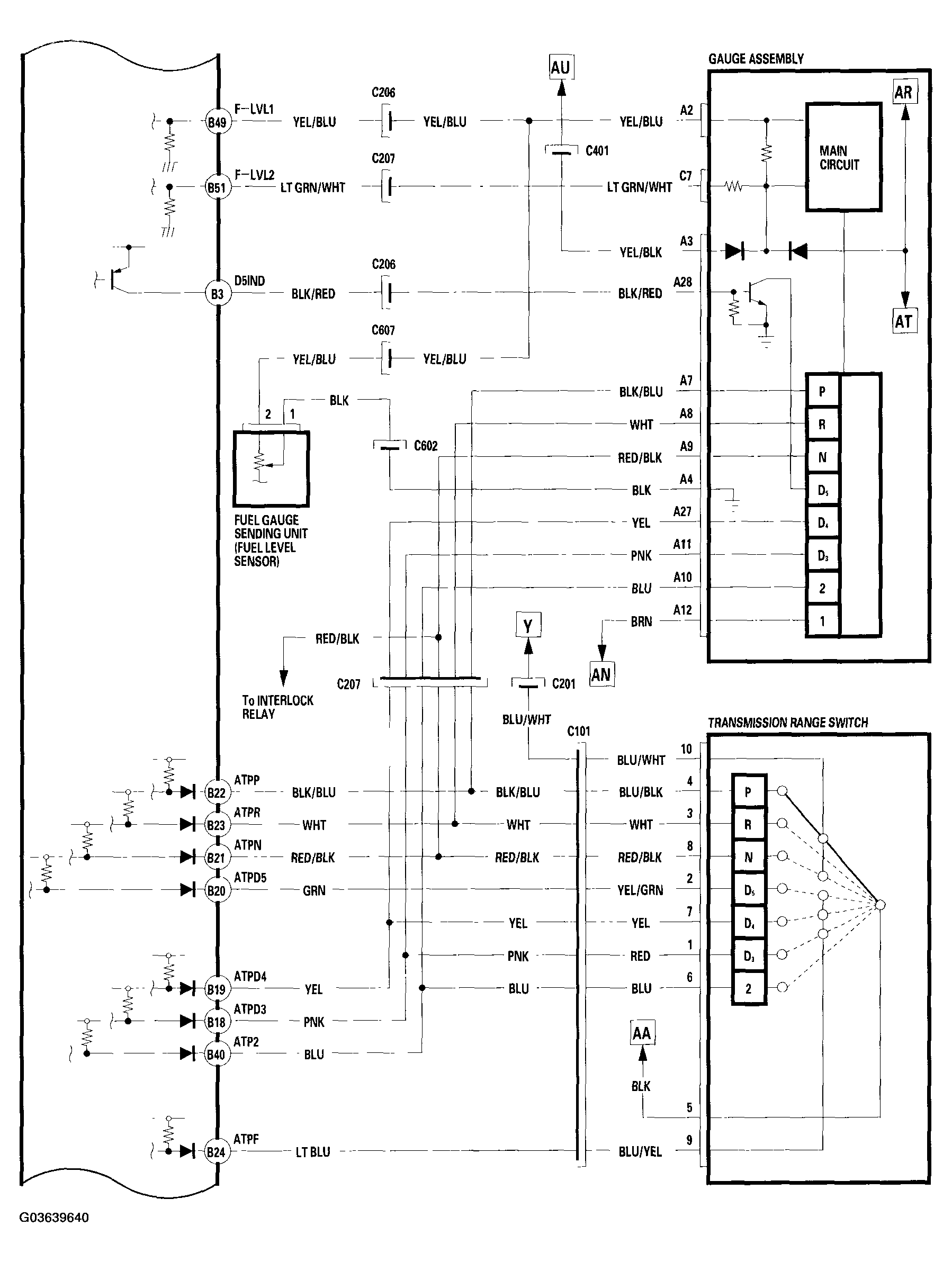

Fig 28: Identifying PCM Circuit Diagram (2004 Model - 12 Of 15)

G03639640

Courtesy of AMERICAN HONDA MOTOR CO., INC.

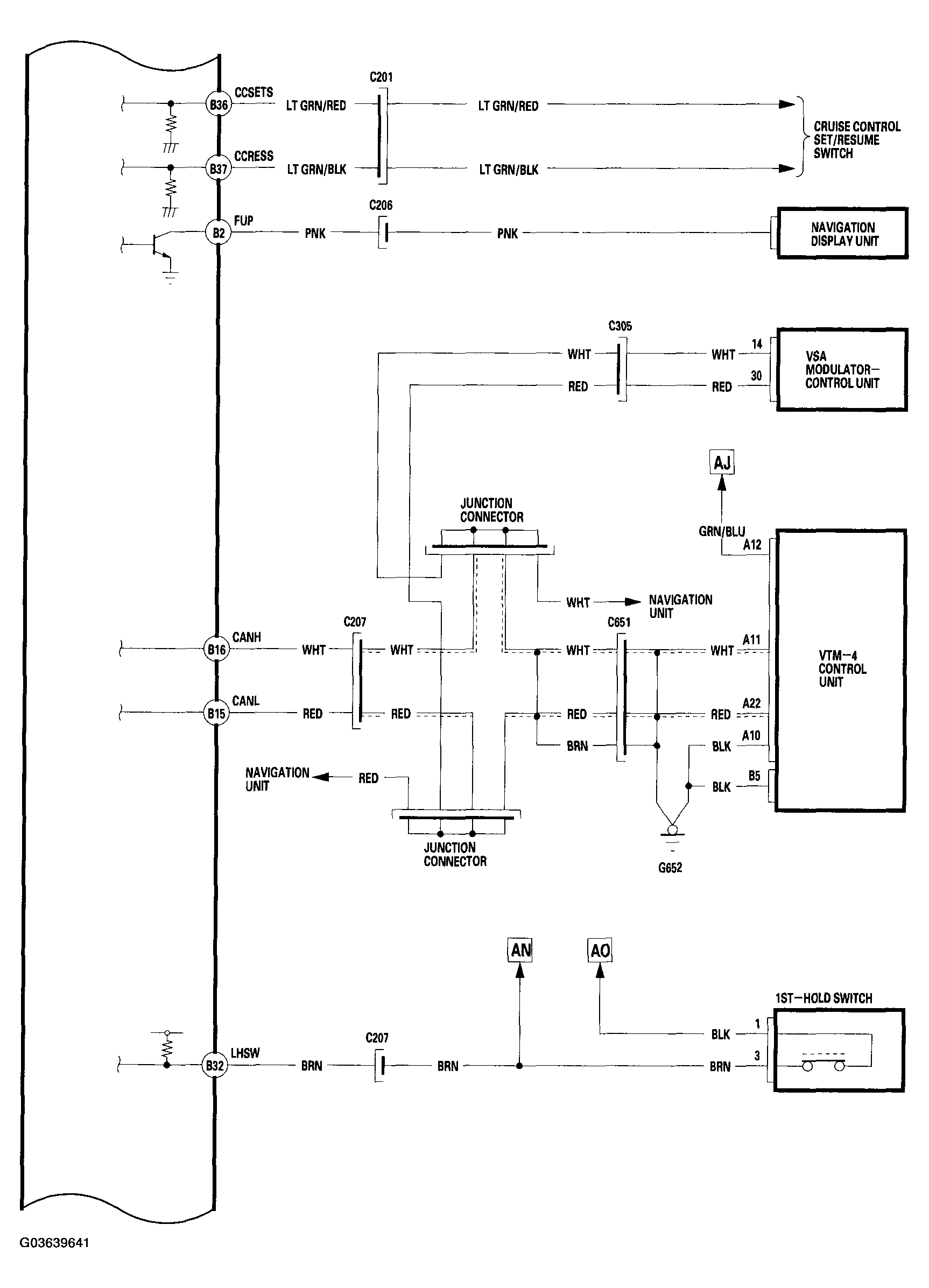

Fig 29: Identifying PCM Circuit Diagram (2004 Model - 13 Of 15)

G03639641

Courtesy of AMERICAN HONDA MOTOR CO., INC.

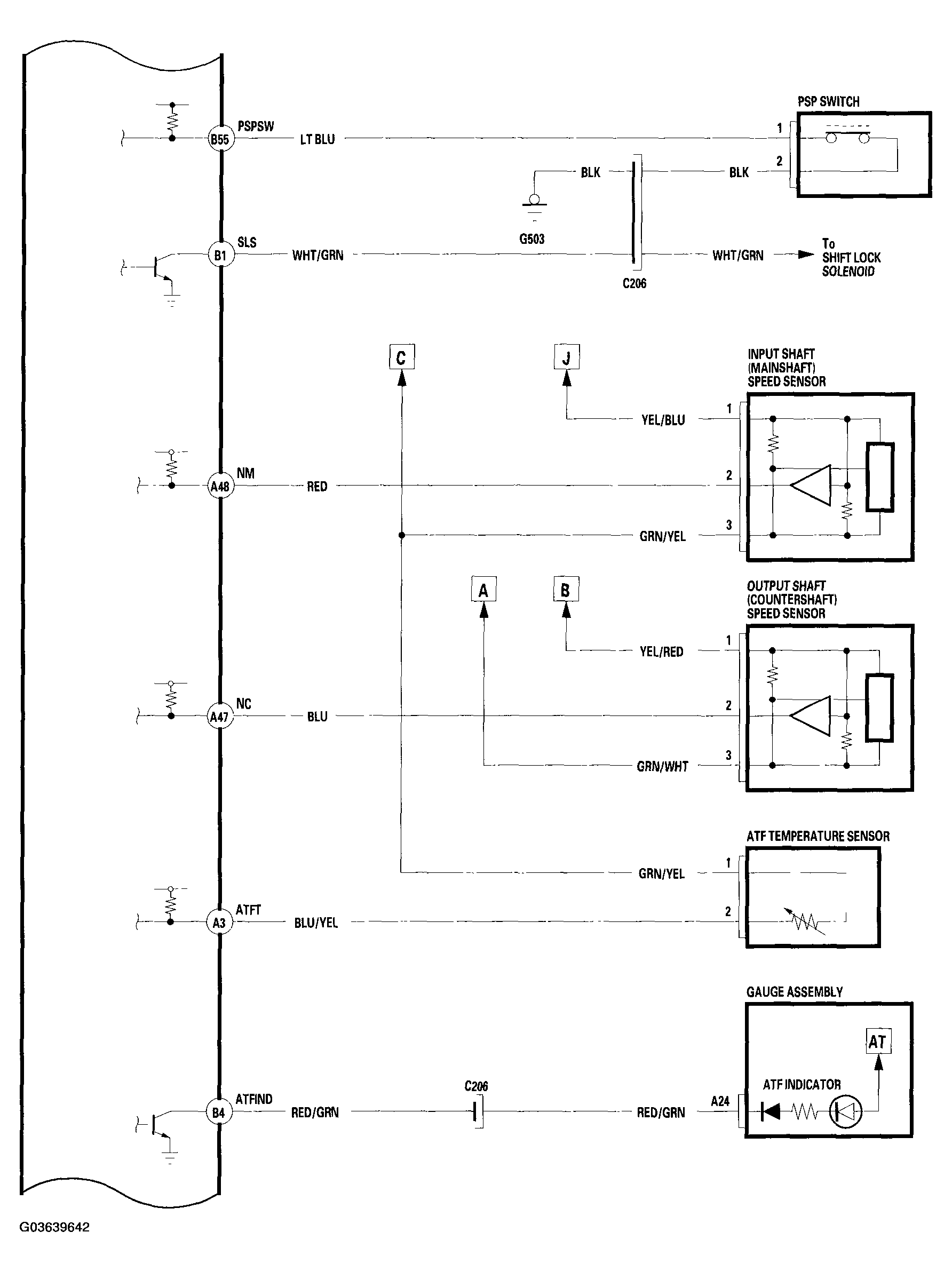

Fig 30: Identifying PCM Circuit Diagram (2004 Model - 14 Of 15)

G03639642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Identifying PCM Circuit Diagram (2004 Model - 15 Of 15)

G03639643

Courtesy of AMERICAN HONDA MOTOR CO., INC.

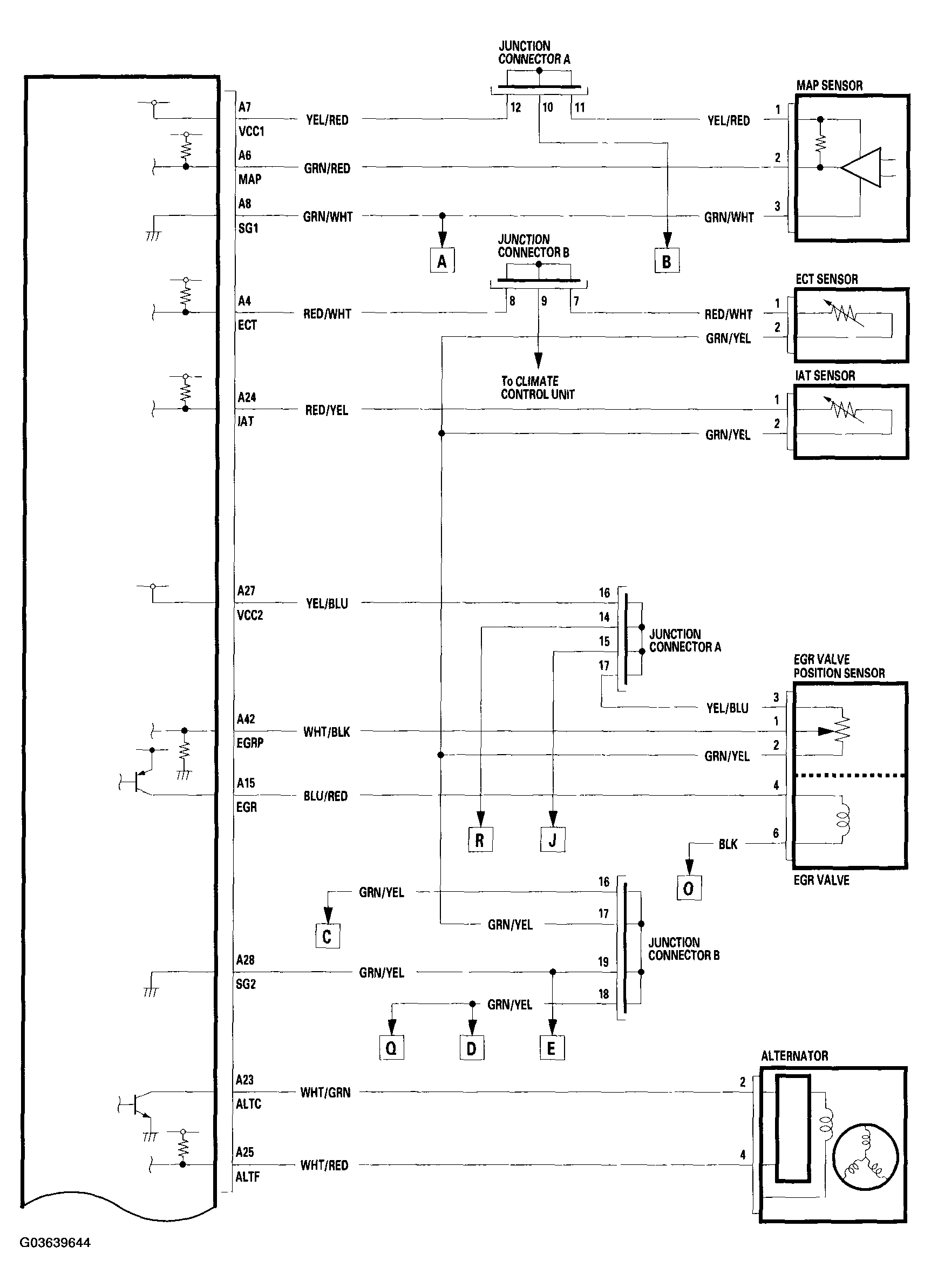

Fig 32: Identifying PCM Circuit Diagram (2005-06 Models - 1 Of 15)

G03639644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: Identifying PCM Circuit Diagram (2005-06 Models - 2 Of 15)

G03639645

Courtesy of AMERICAN HONDA MOTOR CO., INC.

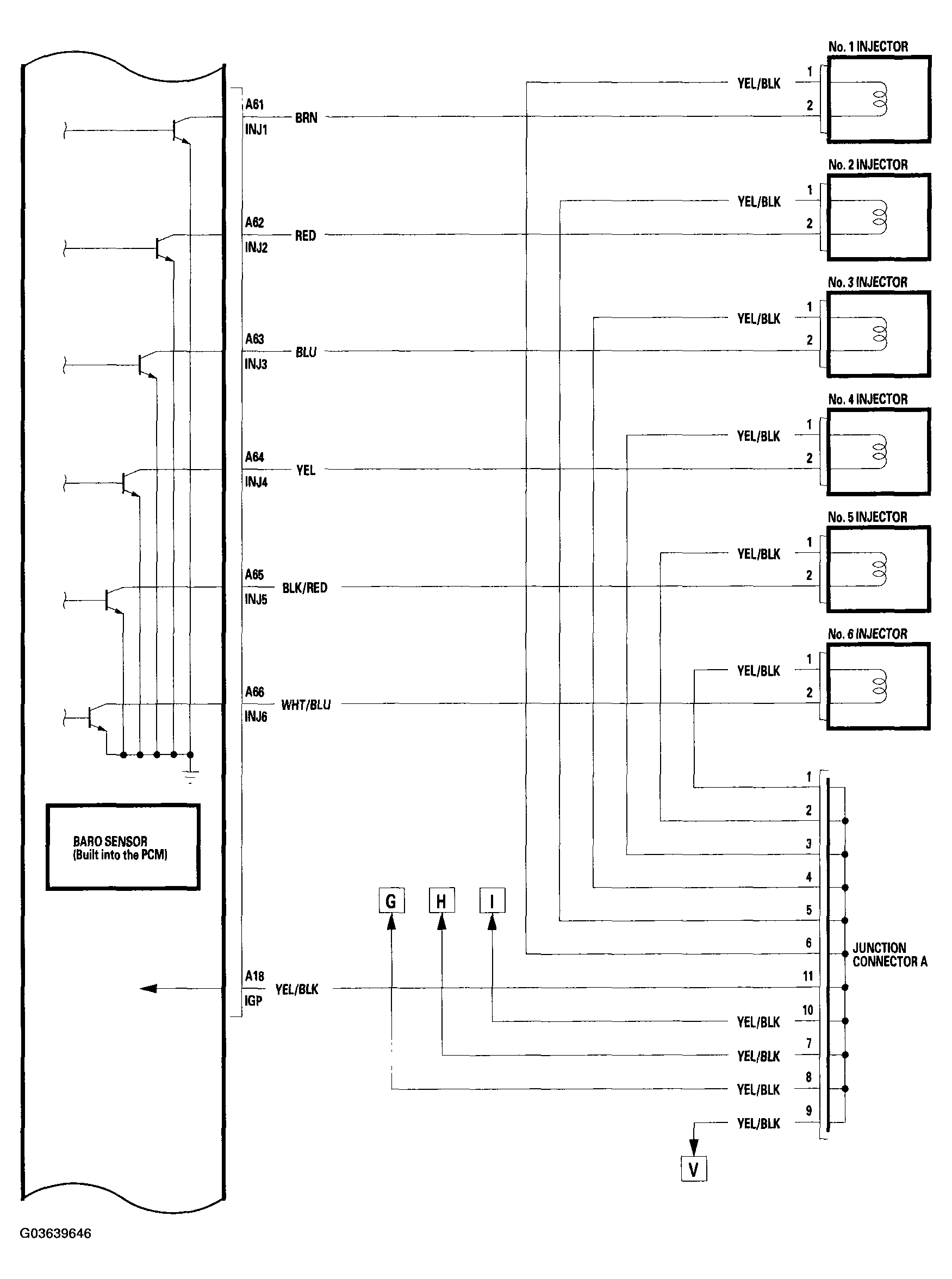

Fig 34: Identifying PCM Circuit Diagram (2005-06 Models - 3 Of 15)

G03639646

Courtesy of AMERICAN HONDA MOTOR CO., INC.

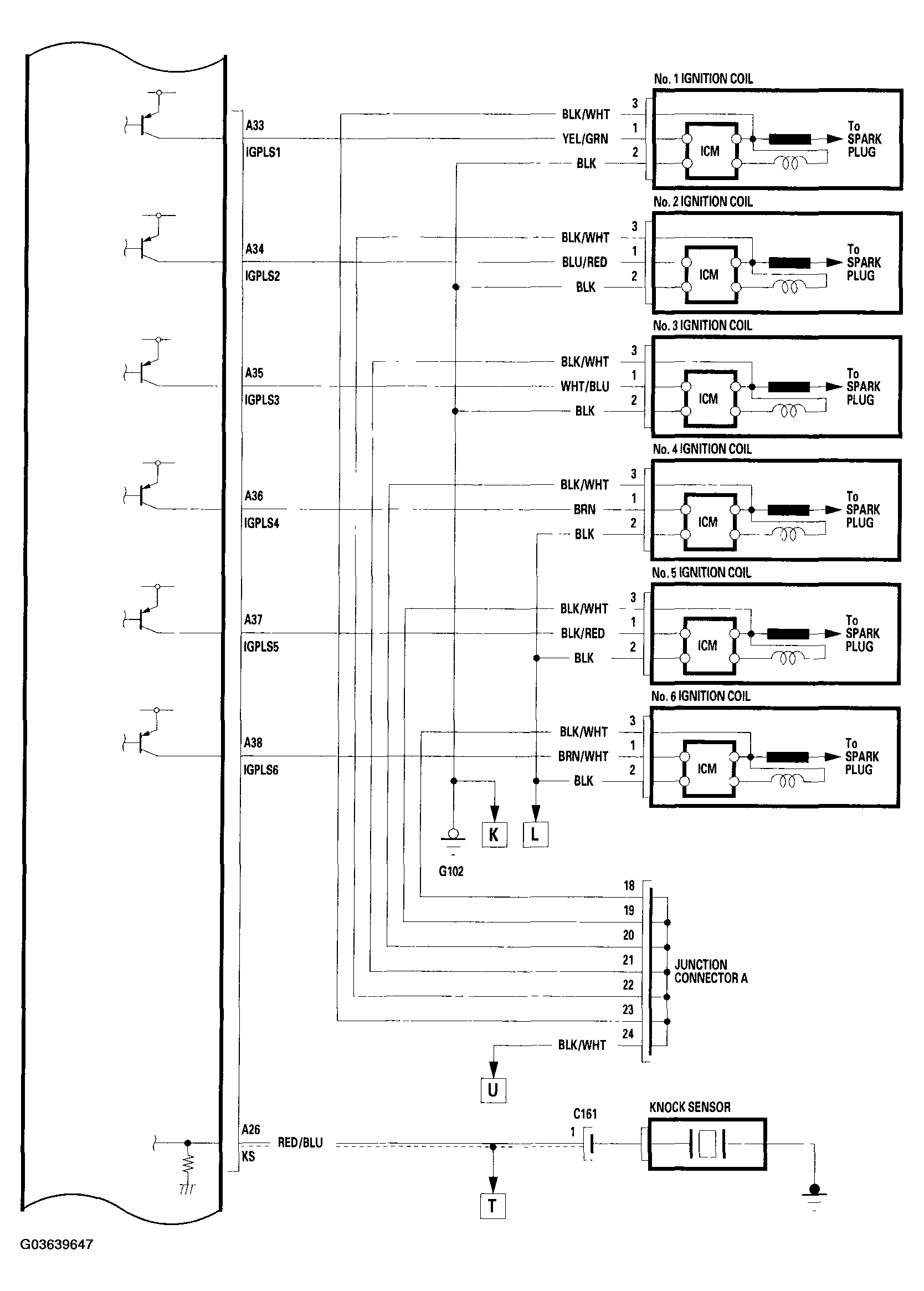

Fig 35: Identifying PCM Circuit Diagram (2005-06 Models - 4 Of 15)

G03639647

Courtesy of AMERICAN HONDA MOTOR CO., INC.

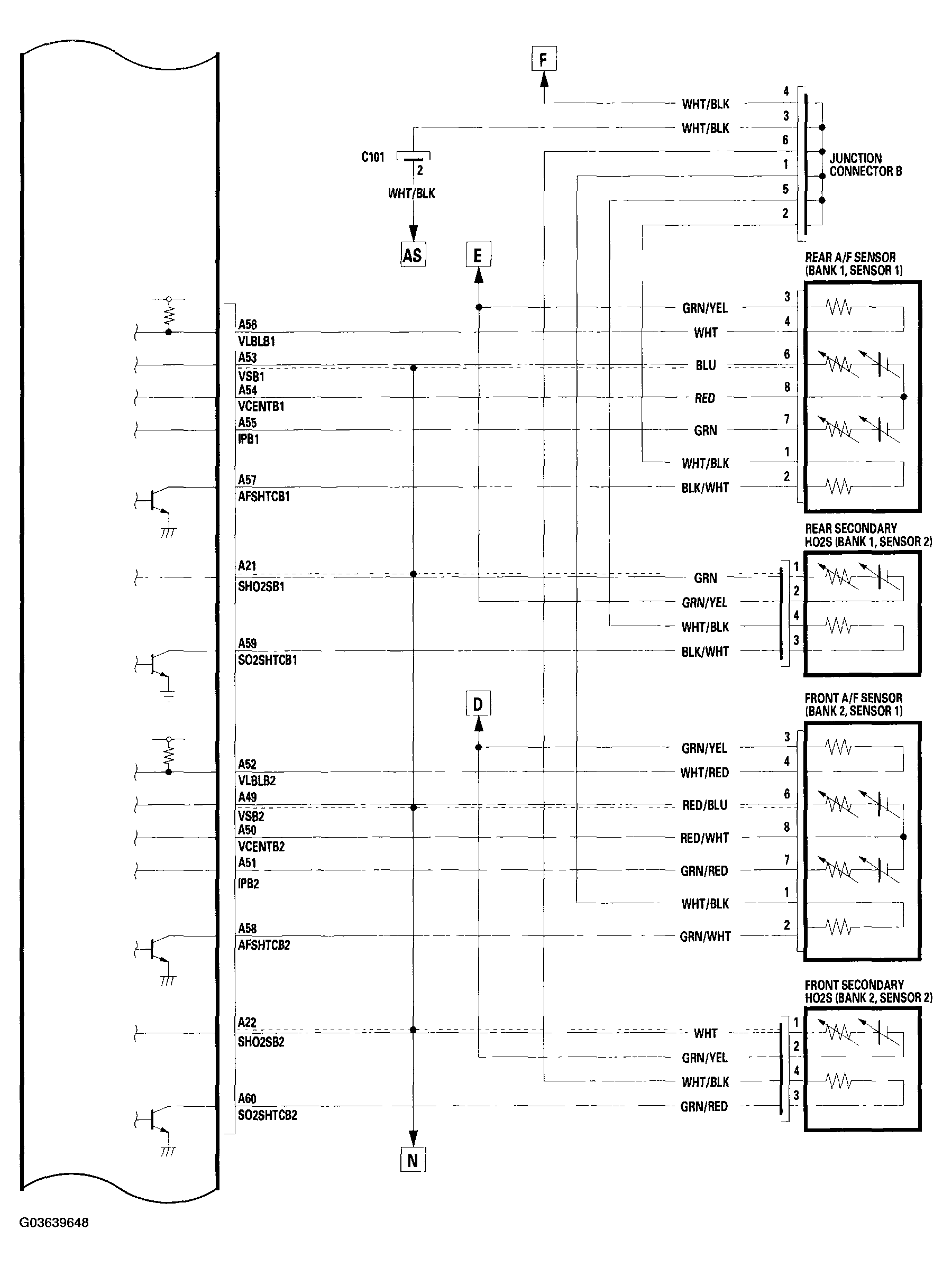

Fig 36: Identifying PCM Circuit Diagram (2005-06 Models - 5 Of 15)

G03639648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

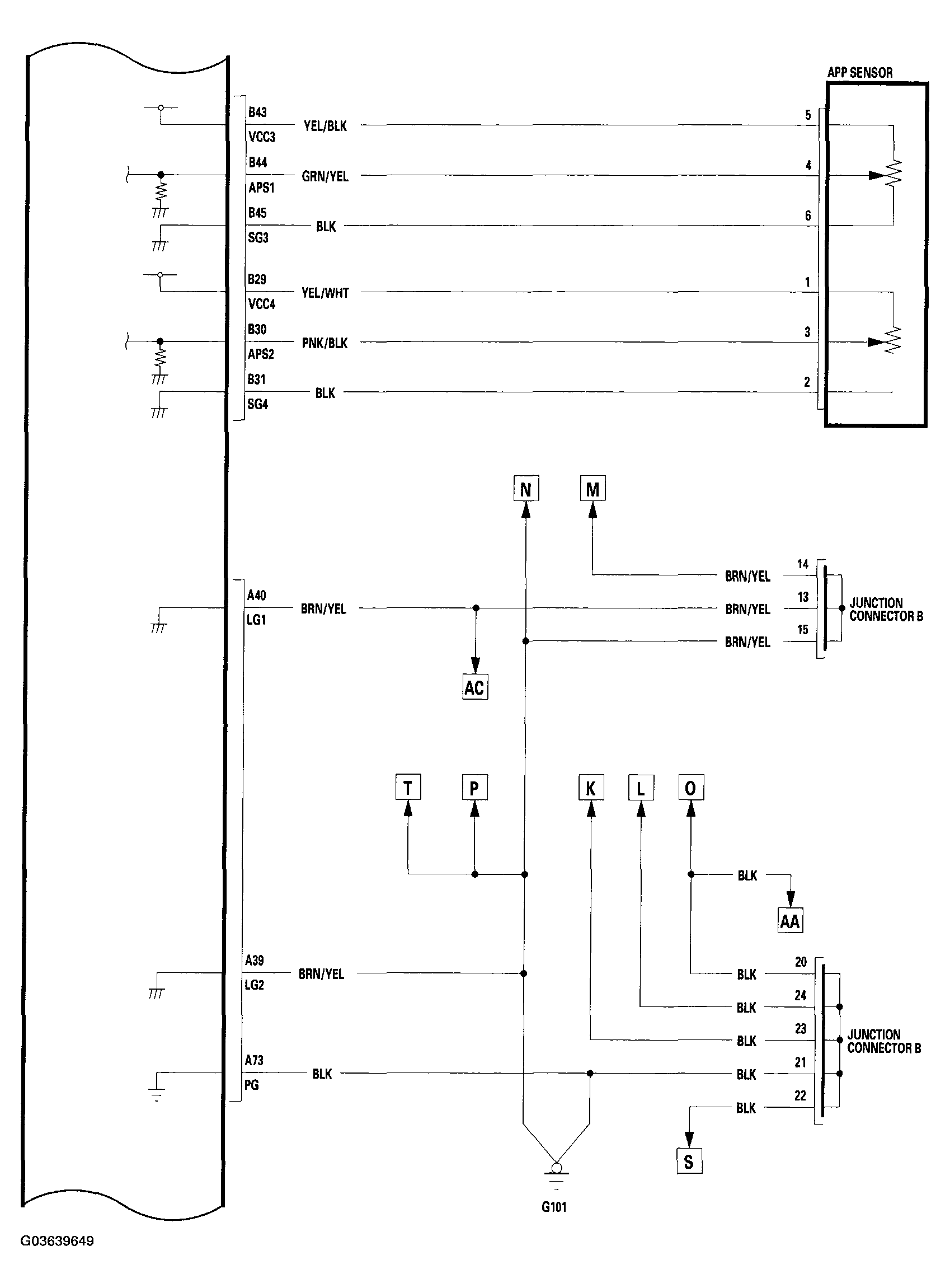

Fig 37: Identifying PCM Circuit Diagram (2005-06 Models - 6 Of 15)

G03639649

Courtesy of AMERICAN HONDA MOTOR CO., INC.

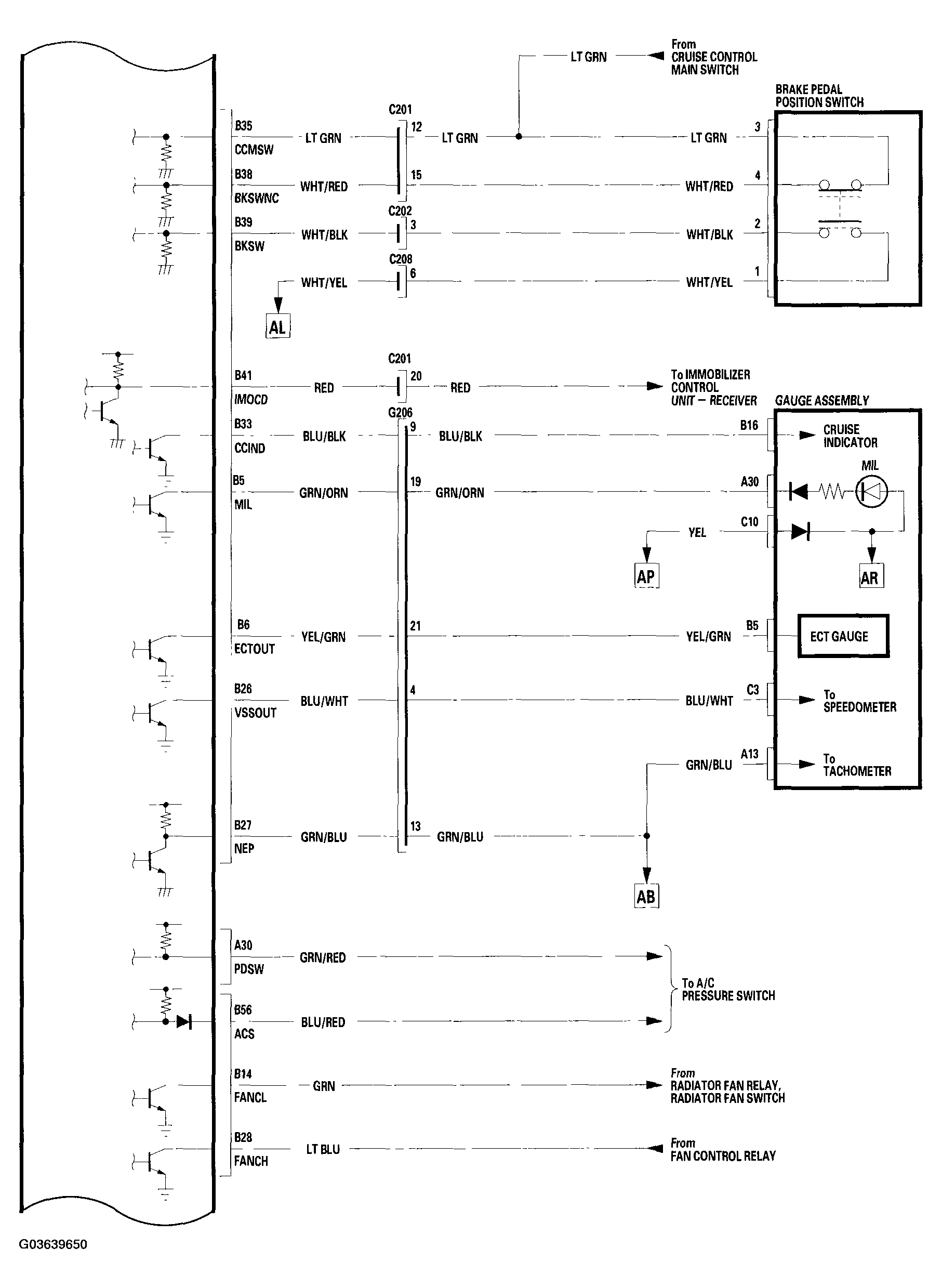

Fig 38: Identifying PCM Circuit Diagram (2005-06 Models - 7 Of 15)

G03639650

Courtesy of AMERICAN HONDA MOTOR CO., INC.

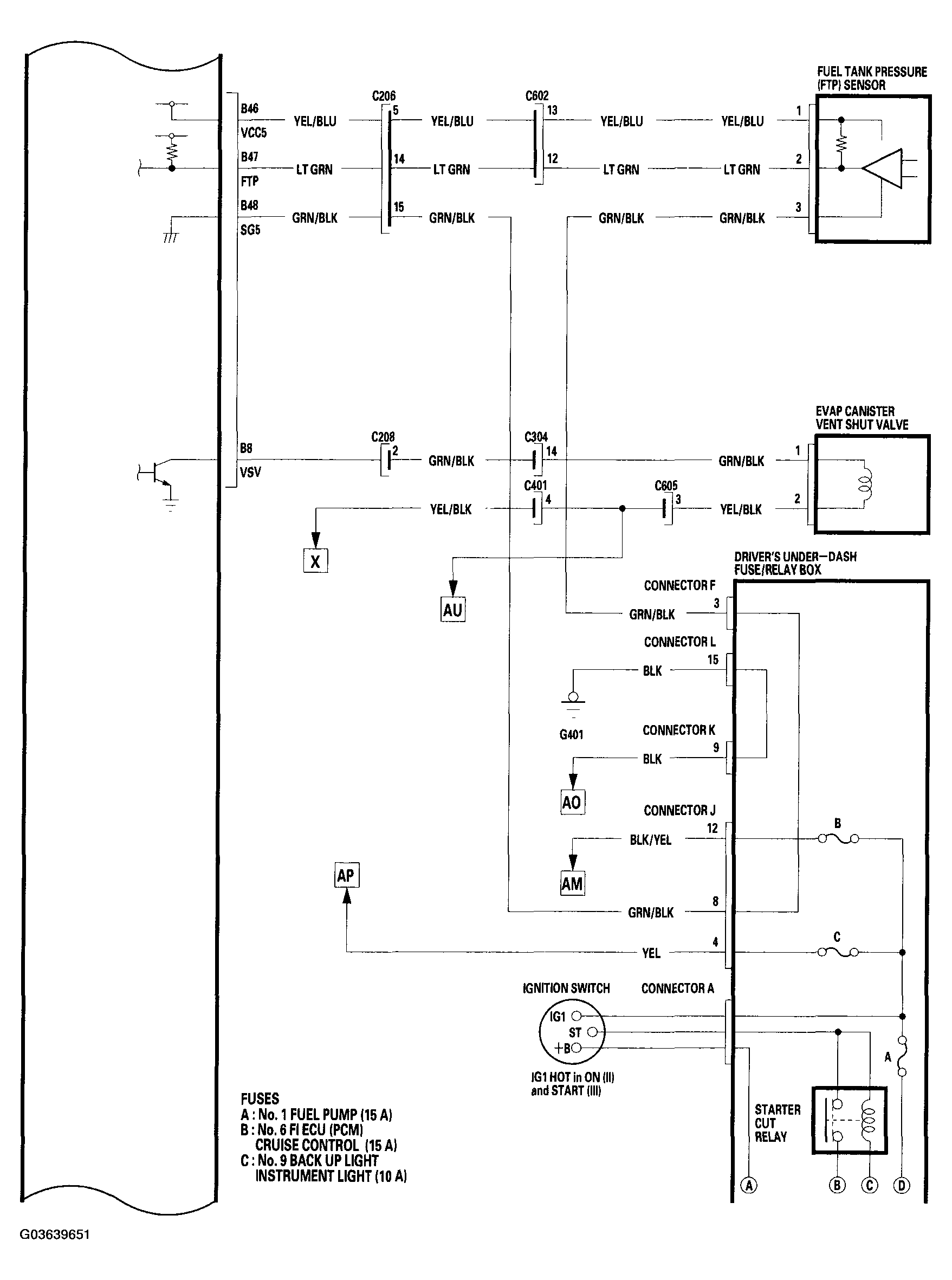

Fig 39: Identifying PCM Circuit Diagram (2005-06 Models - 8 Of 15)

G03639651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

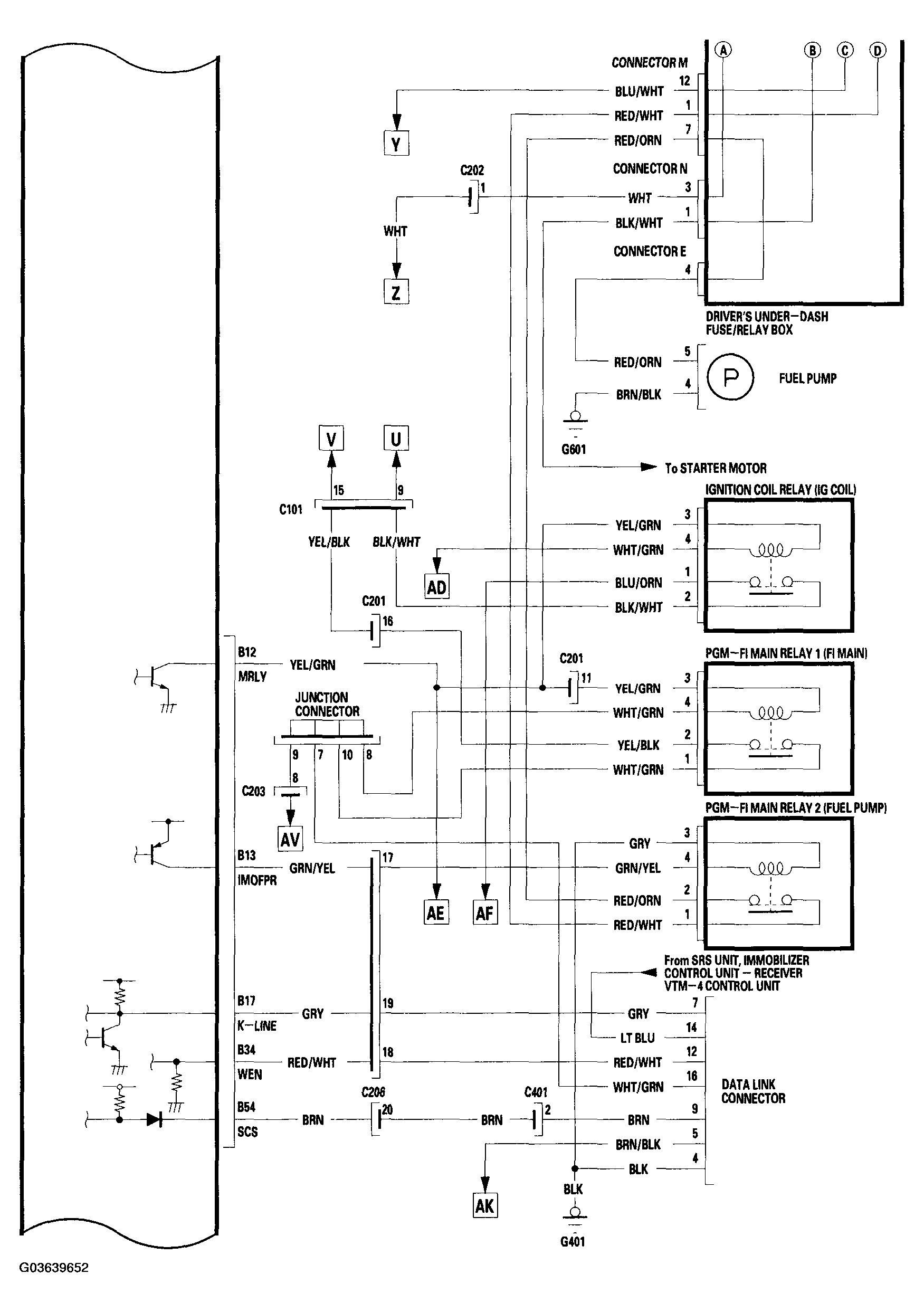

Fig 40: Identifying PCM Circuit Diagram (2005-06 Models - 9 Of 15)

G03639652

Courtesy of AMERICAN HONDA MOTOR CO., INC.

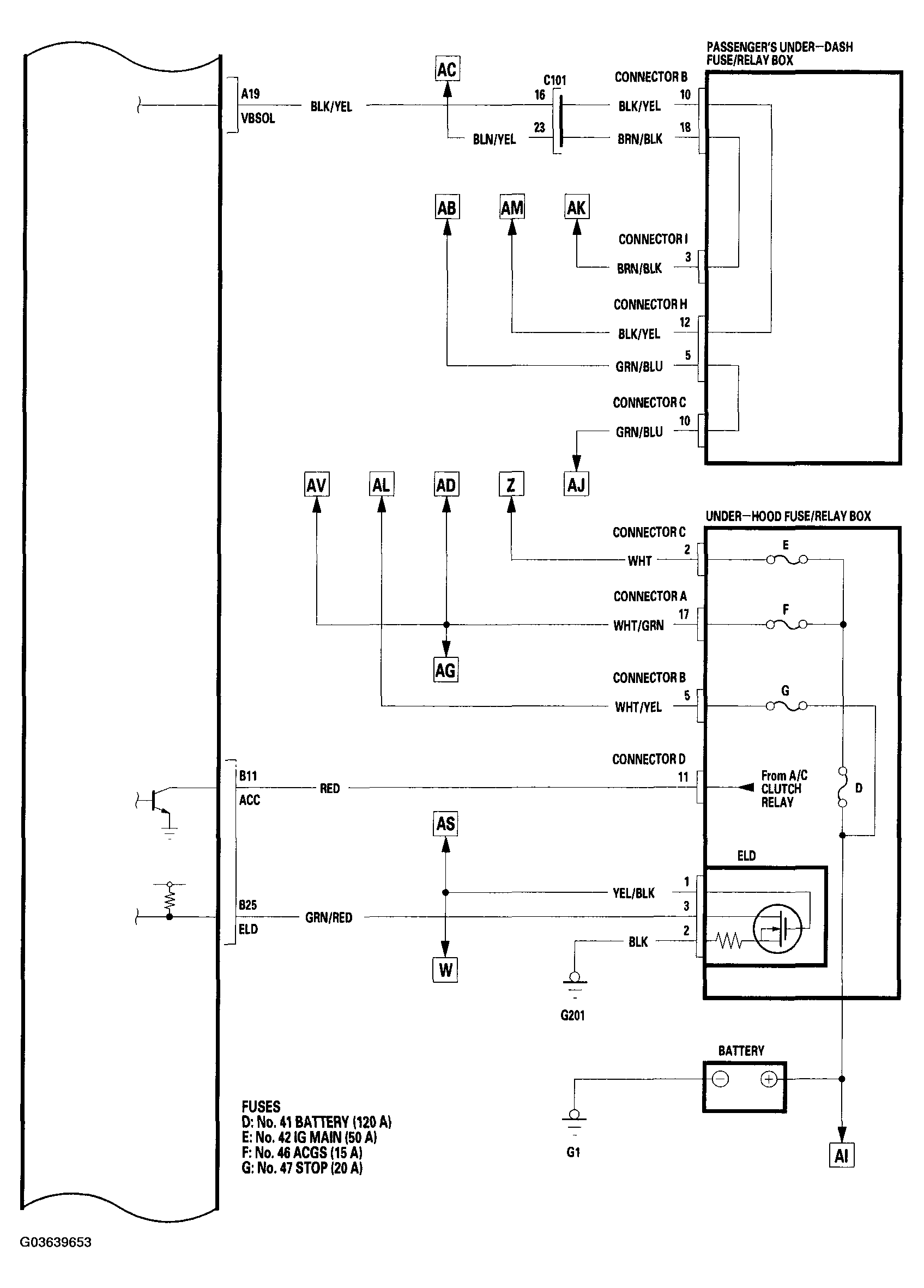

Fig 41: Identifying PCM Circuit Diagram (2005-06 Models - 10 Of 15)

G03639653

Courtesy of AMERICAN HONDA MOTOR CO., INC.

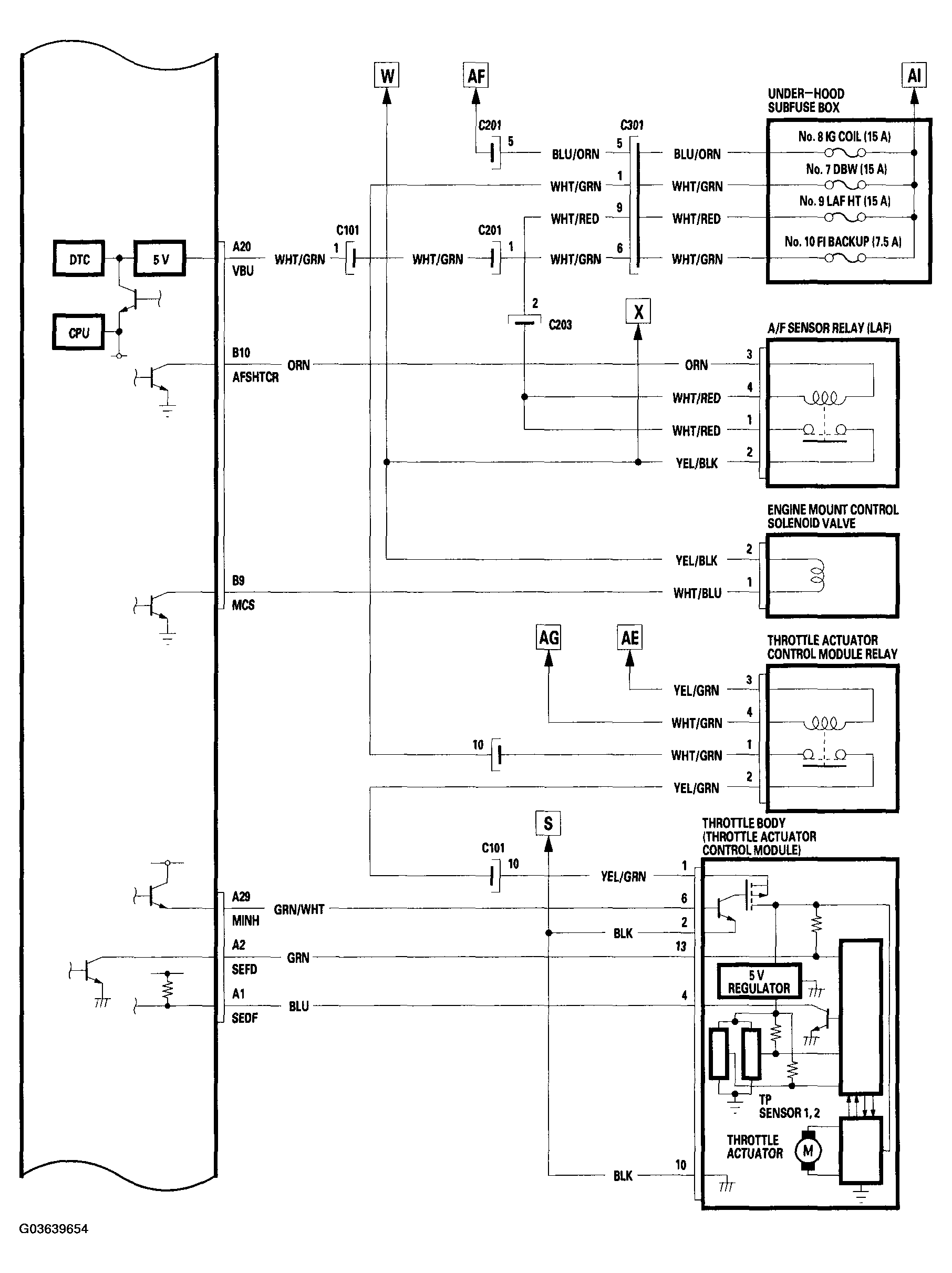

Fig 42: Identifying PCM Circuit Diagram (2005-06 Models - 11 Of 15)

G03639654

Courtesy of AMERICAN HONDA MOTOR CO., INC.

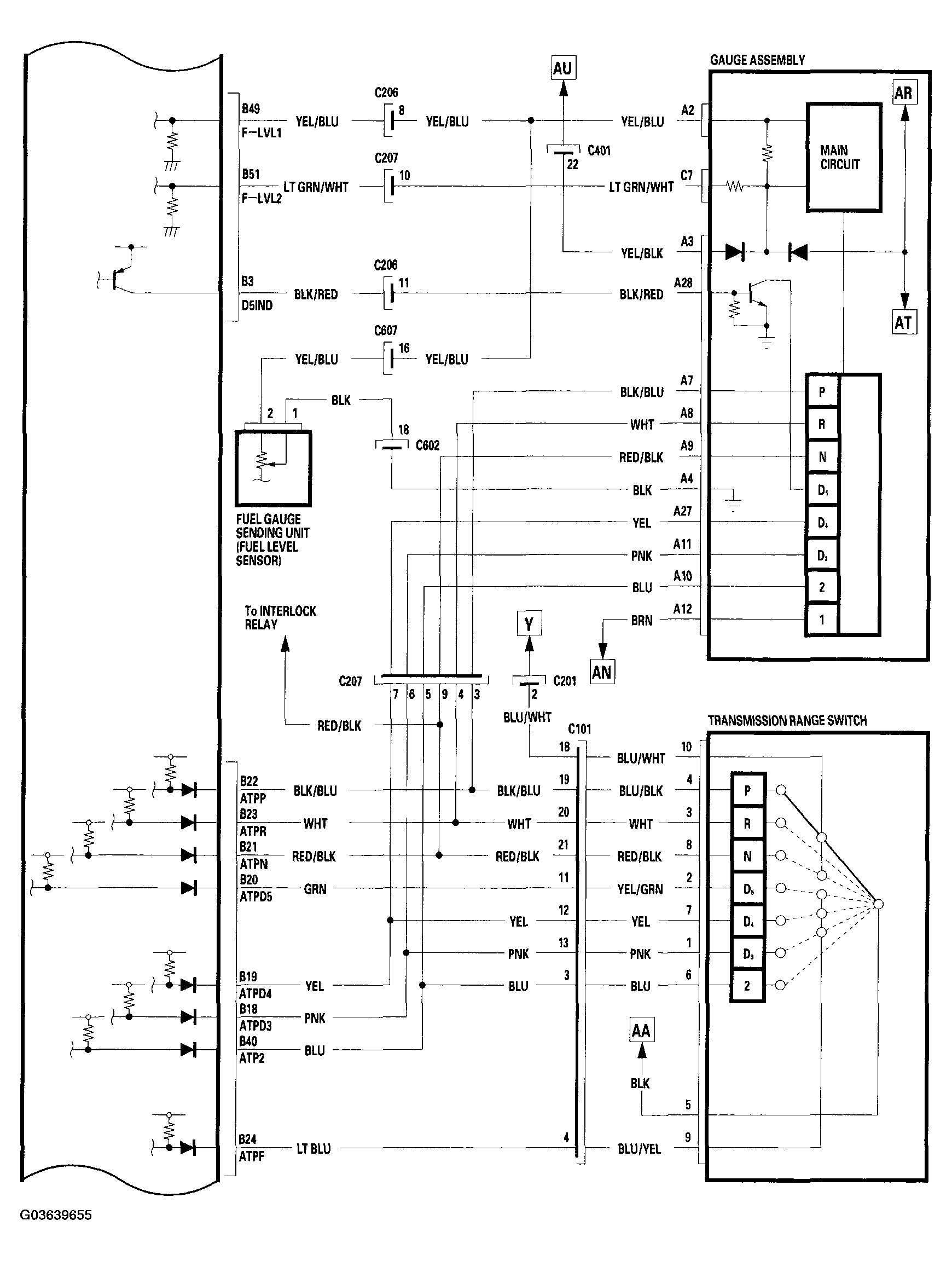

Fig 43: Identifying PCM Circuit Diagram (2005-06 Models - 12 Of 15)

G03639655

Courtesy of AMERICAN HONDA MOTOR CO., INC.

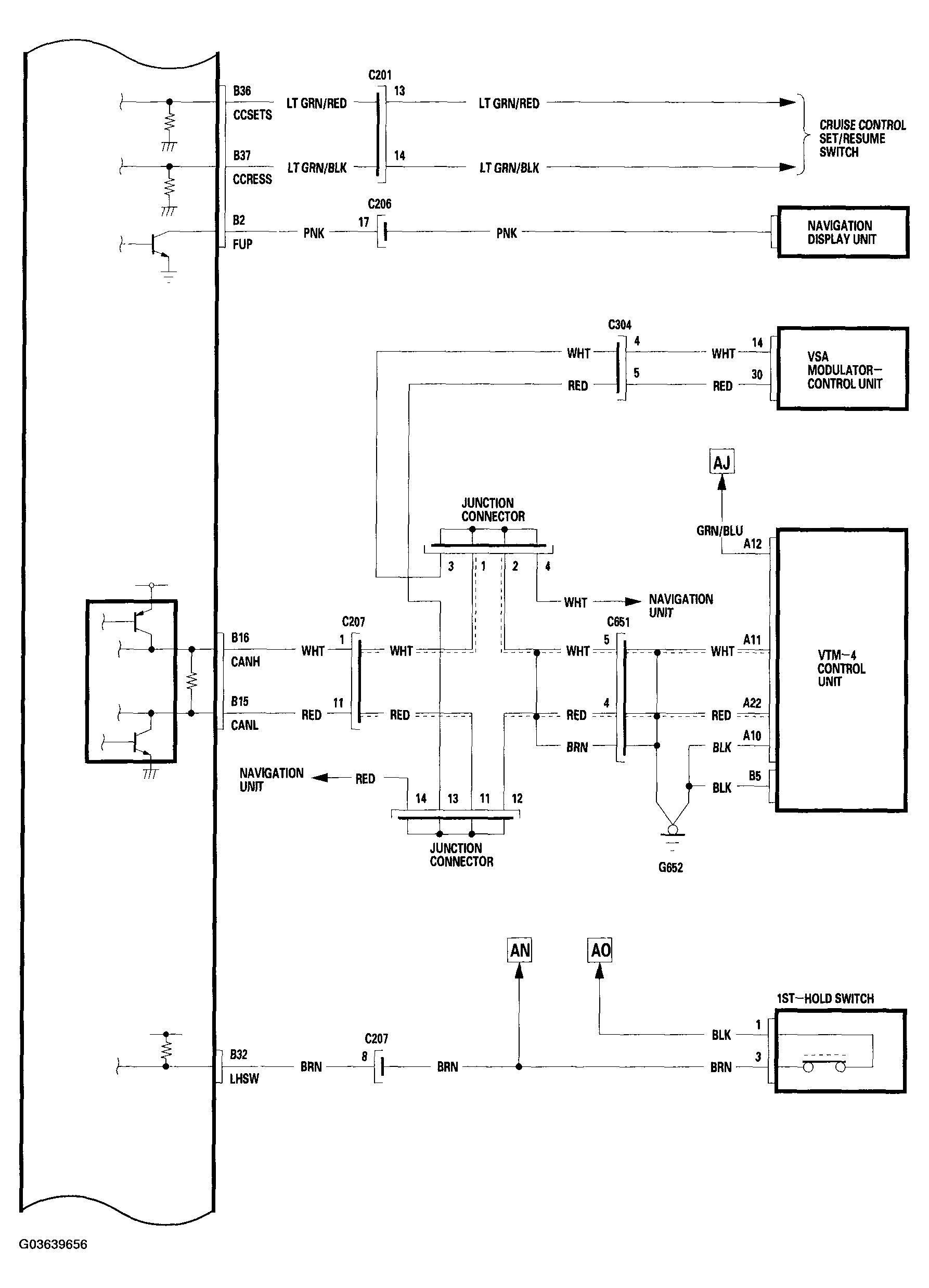

Fig 44: Identifying PCM Circuit Diagram (2005-06 Models - 13 Of 15)

G03639656

Courtesy of AMERICAN HONDA MOTOR CO., INC.

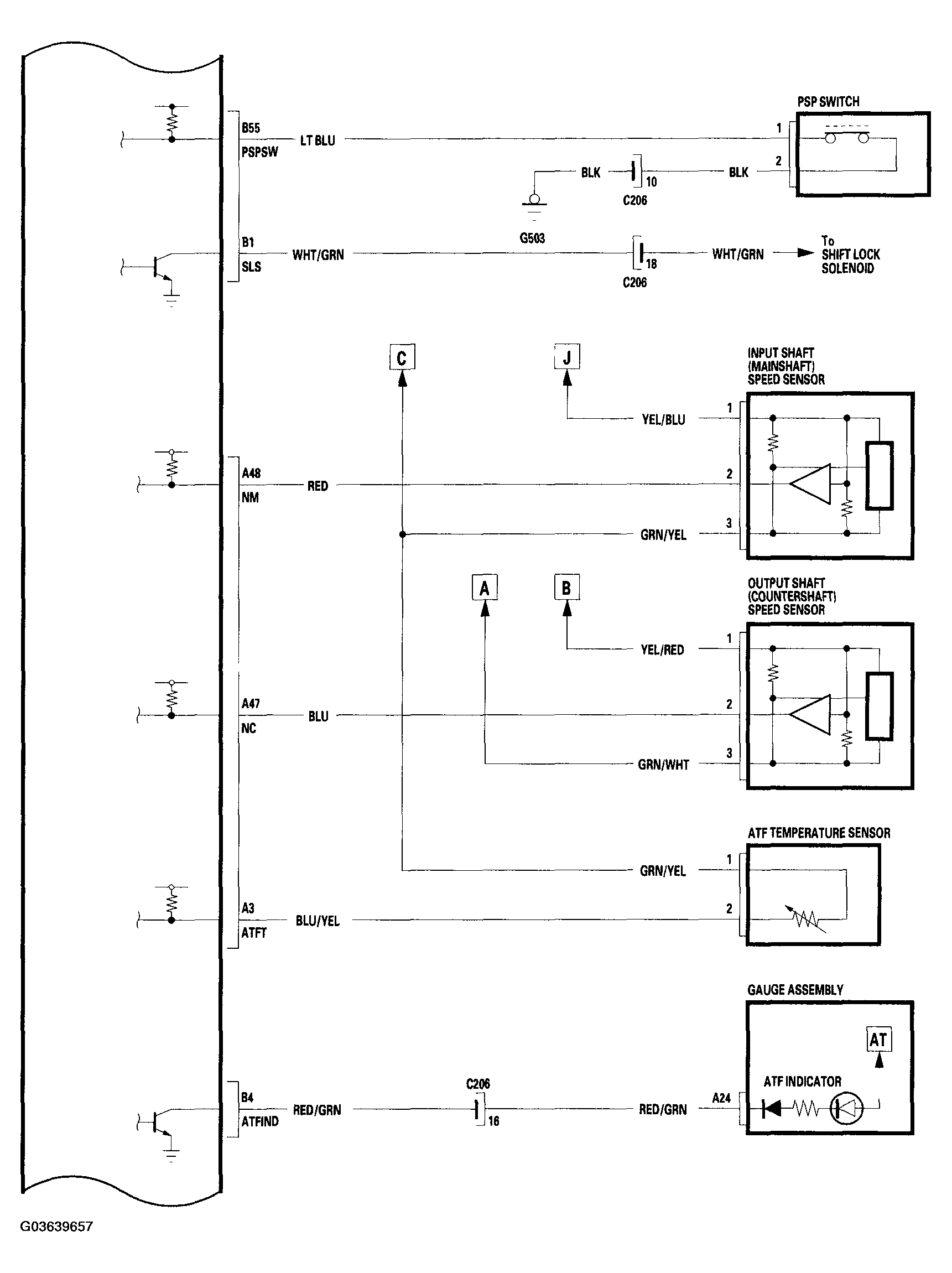

Fig 45: Identifying PCM Circuit Diagram (2005-06 Models - 14 Of 15)

G03639657

Courtesy of AMERICAN HONDA MOTOR CO., INC.

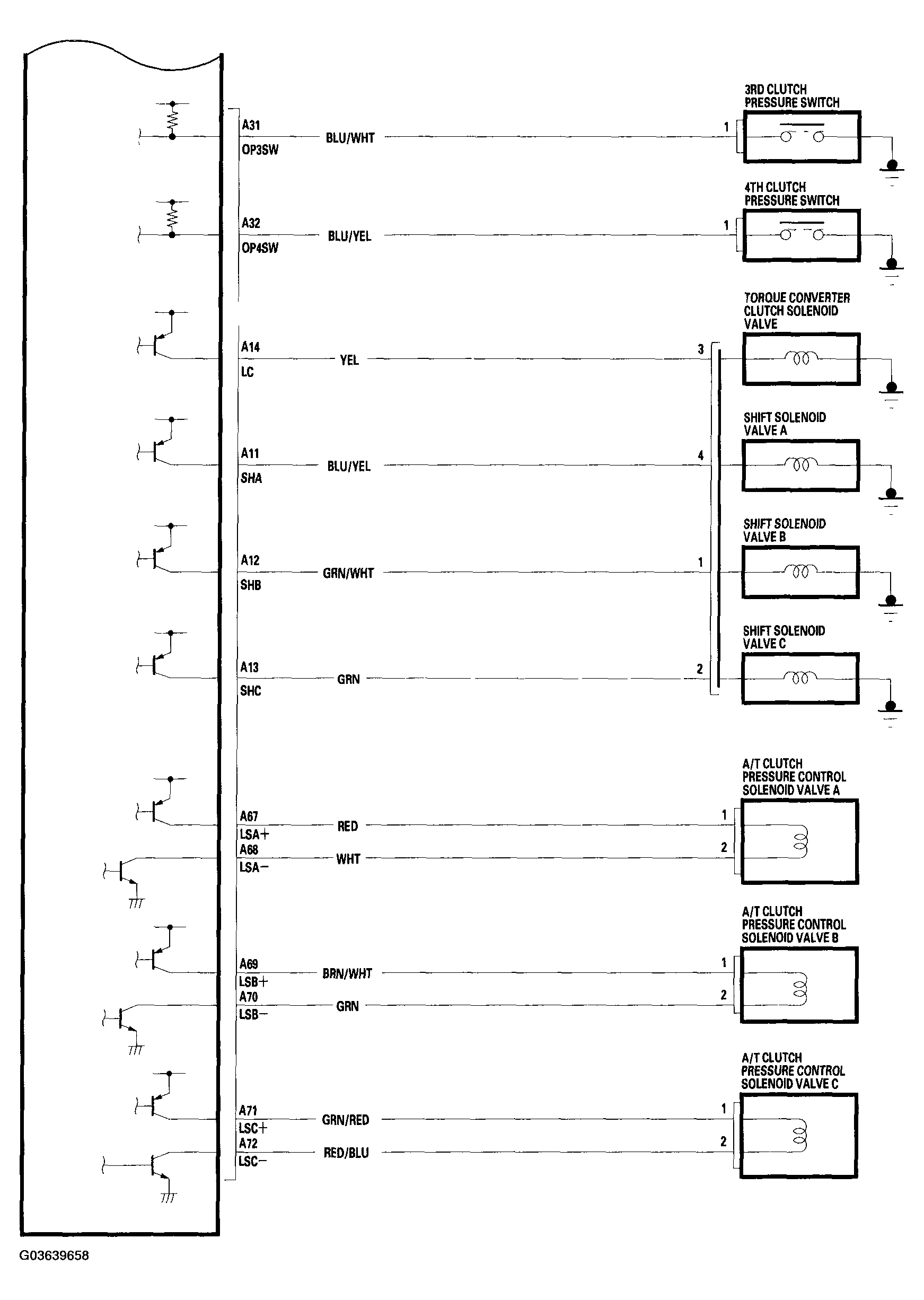

Fig 46: Identifying PCM Circuit Diagram (2005-06 Models - 15 Of 15)

G03639658

Courtesy of AMERICAN HONDA MOTOR CO., INC.
