Dimmer Relay, Intermittent Wiper Relay, Fan Control Relay and Automatic Wiper Relay (Auto Wiper) Connector End View

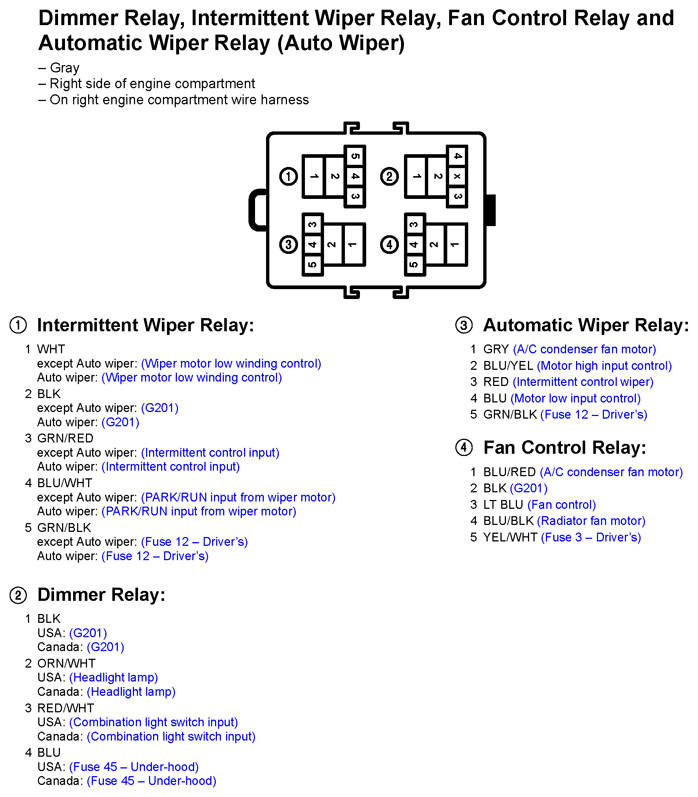

Fig 1: Dimmer Relay, Intermittent Wiper Relay, Fan Control Relay and Automatic Wiper Relay (Auto Wiper) Connector End View
G11248140Courtesy of AMERICAN HONDA MOTOR CO., INC.
