Navigation Unit (Touring) Connector End View

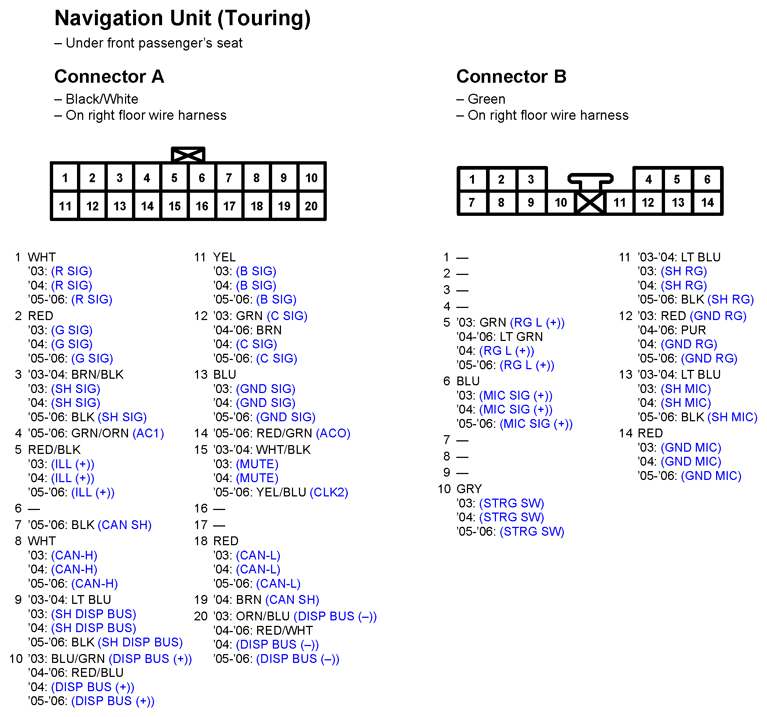

Fig 1: Navigation Unit (Touring) Connector End View (1 Of 2)
G11248279Courtesy of AMERICAN HONDA MOTOR CO., INC.

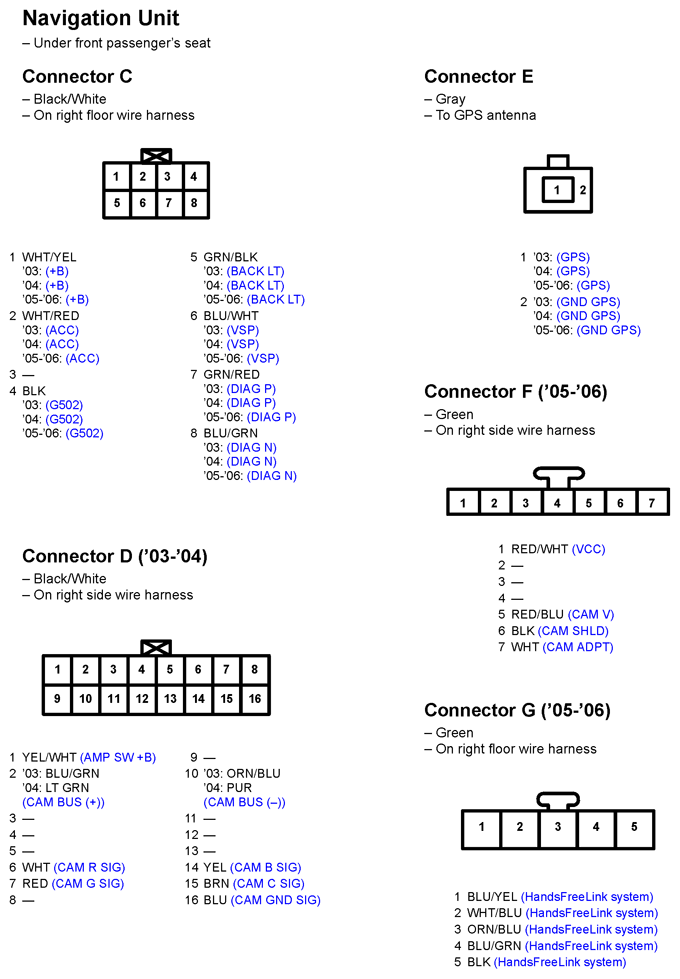

Fig 2: Navigation Unit (Touring) Connector End View (2 Of 2)
G11248280Courtesy of AMERICAN HONDA MOTOR CO., INC.
