Rear Heater-A/C Control Panel-Unit Connector End View

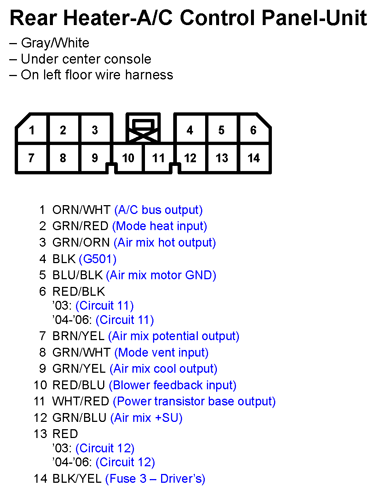

Fig 1: Rear Heater-A/C Control Panel-Unit Connector End View
G11248228Courtesy of AMERICAN HONDA MOTOR CO., INC.
