Driver's Switch ('04-06 Models With DPMS)
- Remove the power seat adjustment switch knobs and recline cover from the driver's seat, then remove the power seat switch (see '04-06 MODELS
).

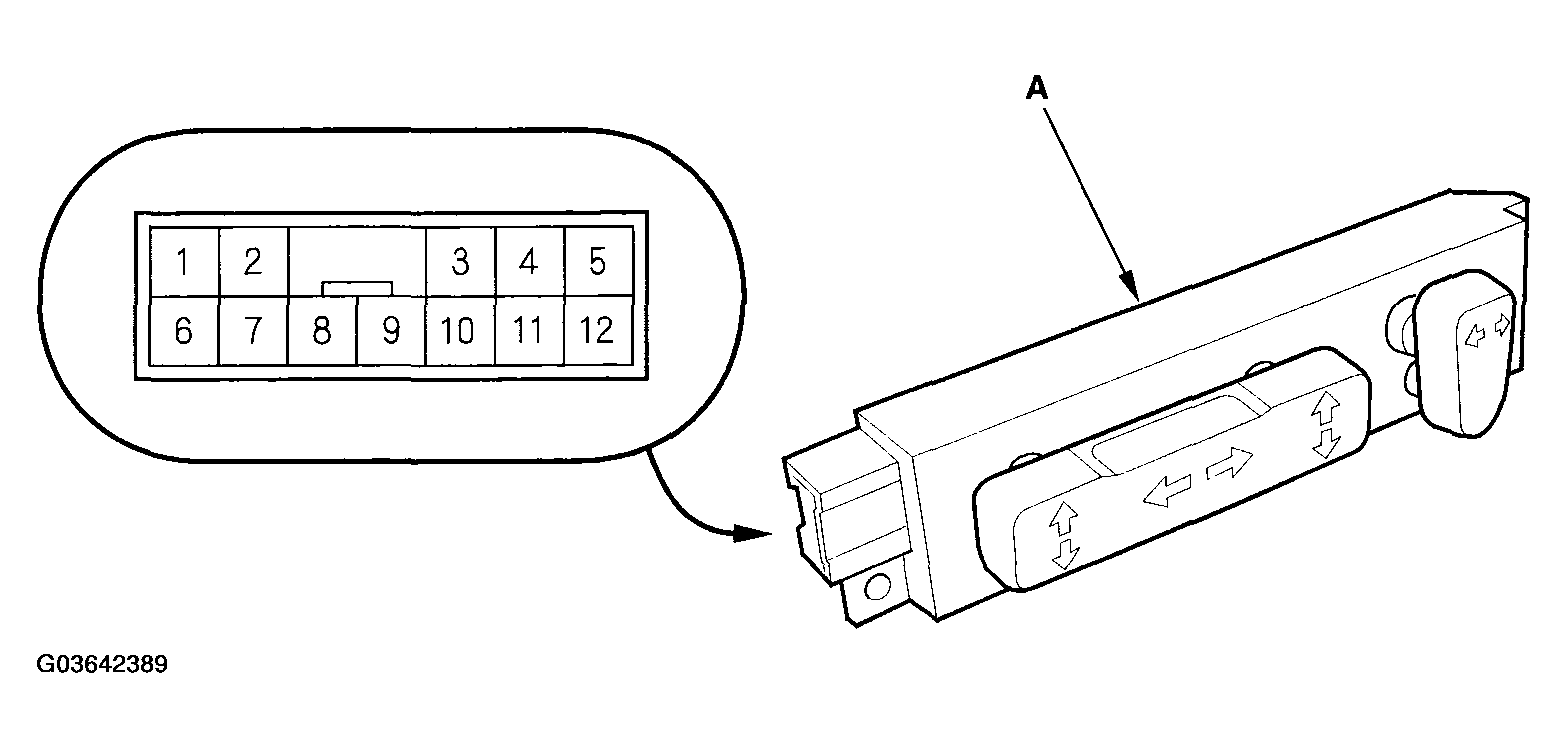

- Disconnect the 12P connector from the power seat adjustment switch (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Reinstall the adjustment switch knobs to the switch.

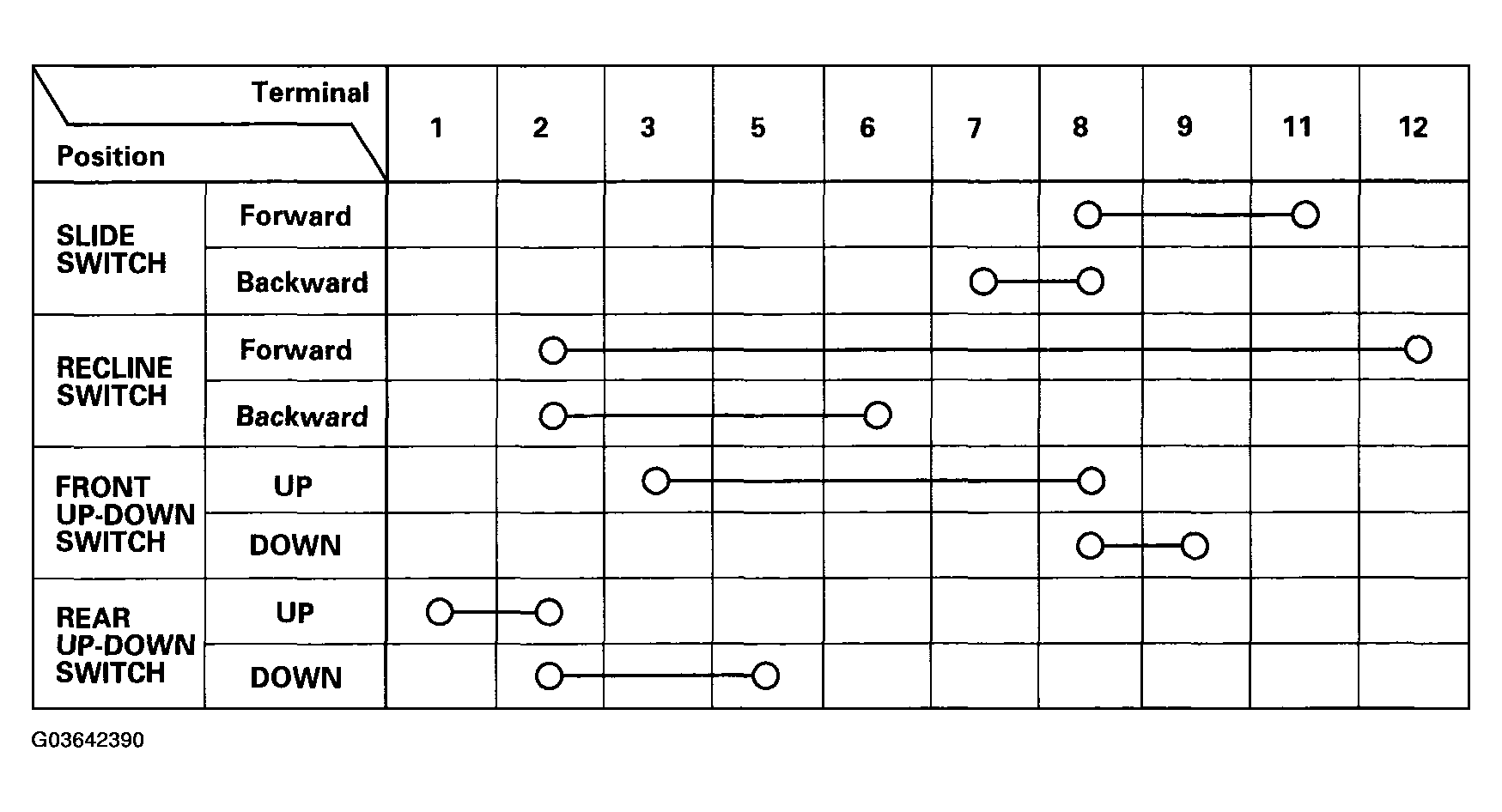

- Check for continuity between the terminals in each switch position according to Fig 2
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the continuity is not as specified, replace the switch.
