Component Location Index

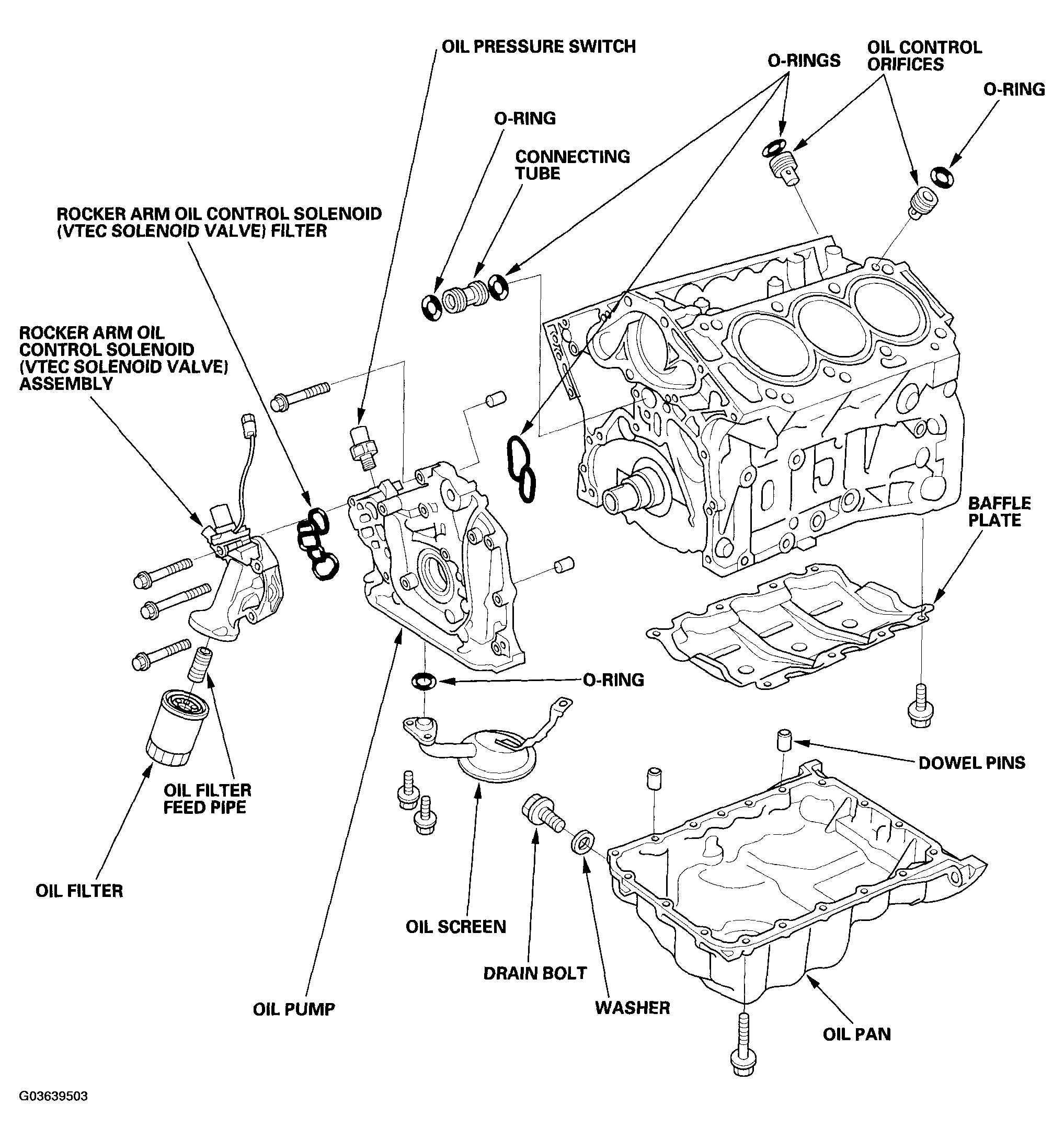

Fig 1: Identifying Engine Lubrication Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
