Engine Oil Filter Replacement

Special Tools Required

Oil filter wrench 07HAA-PJ70100

1. Remove the oil filter with the special tool.
2. Inspect the threads (A) and rubber seal (B) on the new filter. Clean the seat on the engine block, then apply a light coat of new engine oil to the filter rubber seal. Use only filters with a built-in bypass system.

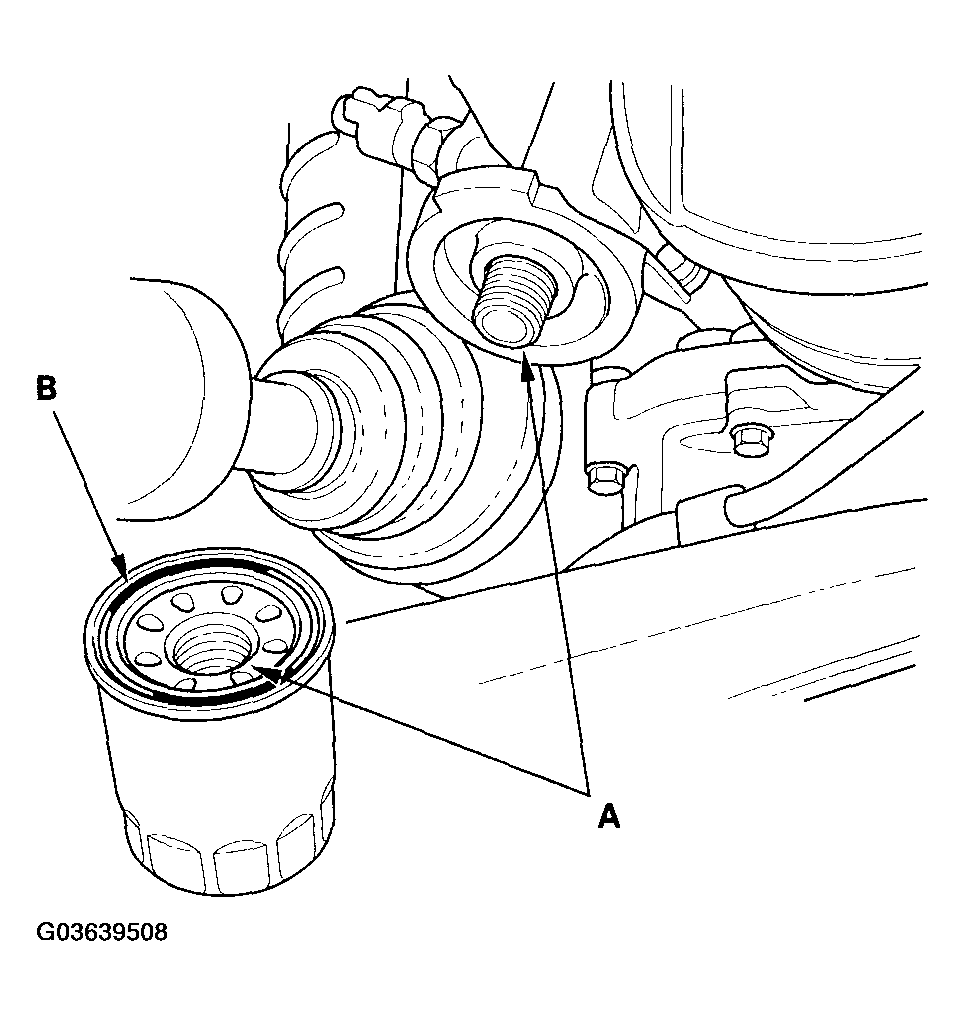

   Fig 1: Inspecting Threads And Rubber SealOn Filter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the oil filter by hand.
4. After the rubber seal seats, tighten the oil filter clockwise with the special tool.
   • Tighten: 3/4 Turn Clockwise
   • Tightening Torque: 12 N.m (1.2 kgf.m, 8.7 lbf.ft)

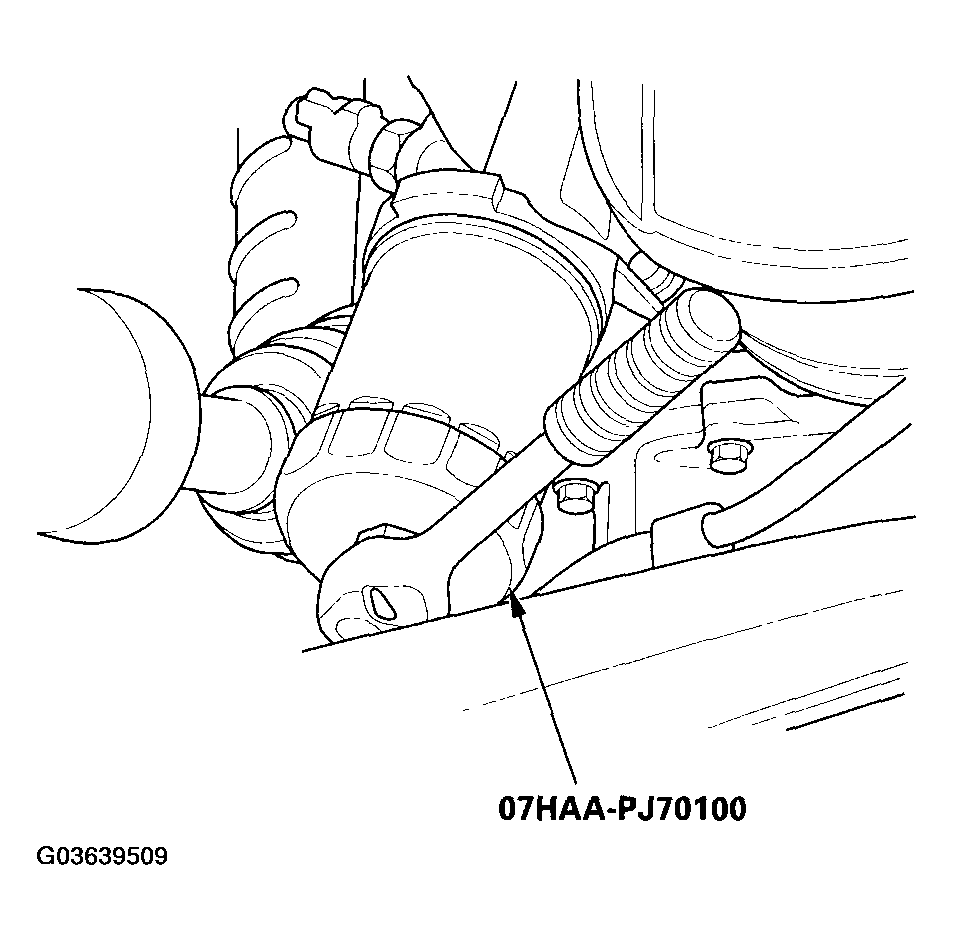

   Fig 2: Tightening Oil Filter With Special Tool

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If four numbers or triangle(s) are printed around the outside of the filter, you can use the following procedure to tighten the filter.
   • Spin the filter on until its seal lightly seats against the block, and note which number or triangle(s) is at the bottom.
   • Tighten the filter by turning it clockwise three numbers or triangle(s) from the one you noted. For example, if triangle is at the bottom when the seal is lightly seated, tighten the filter until the triangles comes around to the bottom.

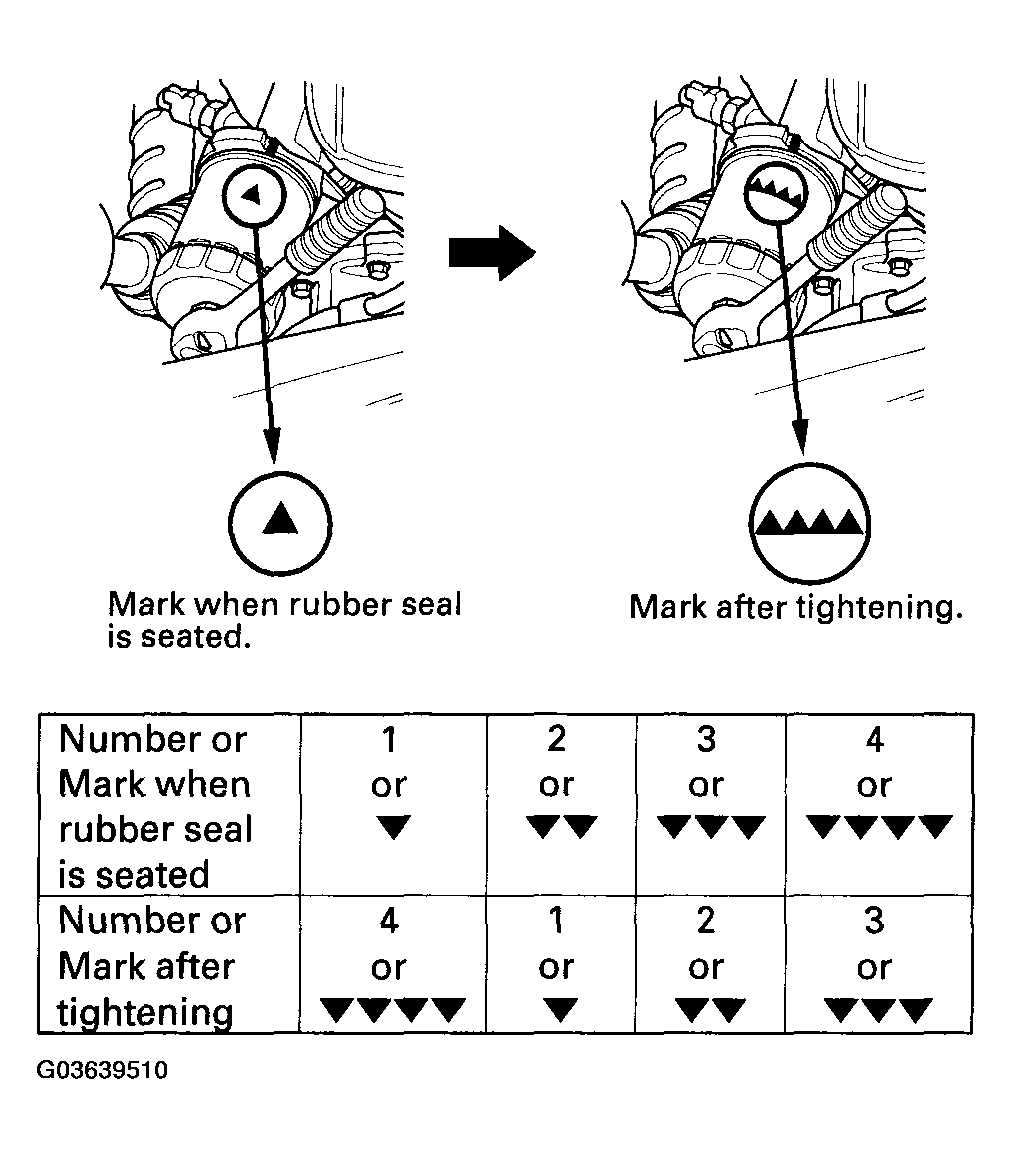

     Fig 3: Tightening Filter

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. After installation, fill the engine with oil up to the specified level, run the engine for more than 3 minutes, then check for oil leakage.
