A/C Condenser Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling charging station (see REFRIGERANT RECOVERY  ).
  2. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Remove the bolt, then disconnect the discharge hose (A) from the A/C condenser.
    Fig 1: A/C Condenser Discharge Hose Bolt With Torque Specification
    G05487744Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolt, then disconnect the front receiver line (A) from the A/C condenser.
    Fig 2: A/C Condenser Front Receiver Line With Bolt With Torque Specification
    G05487745Courtesy of AMERICAN HONDA MOTOR CO., INC.

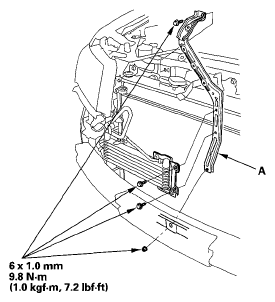

  5. Remove the bolts, nut, and the ATF cooler bracket (A).
    Fig 3: ATF Cooler Bracket Nut And Bolts With Torque Specification
    G05487746Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Loosen the bolts, then remove the A/C condenser upper mount brackets (A).
    Fig 4: A/C Condenser Upper Mount Brackets Bolts With Torque Specification
    G05487747Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the hood latch (see HOOD LATCH REPLACEMENT ).
  8. Remove the A/C condenser (A) by lifting it up. Be careful not to damage the radiator and A/C condenser fins when removing the A/C condenser.
    Fig 5: Identifying A/C Condenser
    G05487748Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the A/C condenser in the reverse order of removal, and note these items:
    • If you're installing a new A/C condenser, add refrigerant oil (DENSO ND-OIL 8) (see A/C REFRIGERANT OIL REPLACEMENT  ).
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
    • Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
    • Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
    • Be careful not to damage the radiator or the A/C condenser fins when installing the A/C condenser.
    • Charge the system (see SYSTEM CHARGING  ).
    • Adjust the hood latch (see HOOD ADJUSTMENT ).
