Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
Remove the harness clips (A), the bolts, and the glove box frame (B).

Fig 1: Identifying Harness Clips And Glove Box Frame With Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cut the plastic cross brace (A) in the glove box opening with diagonal cutters in the area shown, and discard it.

Fig 2: Identifying Plastic Cross Brace Cutting Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the wire harness clips (A), the self-tapping screws, and the passenger's heater duct (B).

Fig 3: Identifying Wire Harness Clips And Passenger'sHeater Duct With Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (A) from the front blower motor. Remove the wire harness clips (B).

Fig 4: Identifying Front Blower Motor Connector And Wire Harness Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

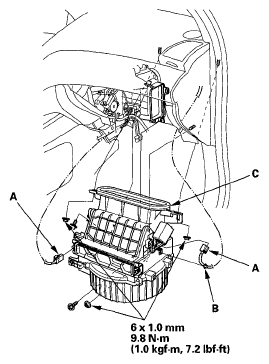

Disconnect the connectors (A) from the recirculation control motor and adaptive front lighting control unit, then remove the harness clip (B). Remove the self-tapping screws, the mounting nuts, and the blower unit (C).

Fig 5: Recirculation Control Motor Connector, Harness Clip And Blower Unit With Screws With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal. Make sure that there is no air leakage.
