Engine Control Module

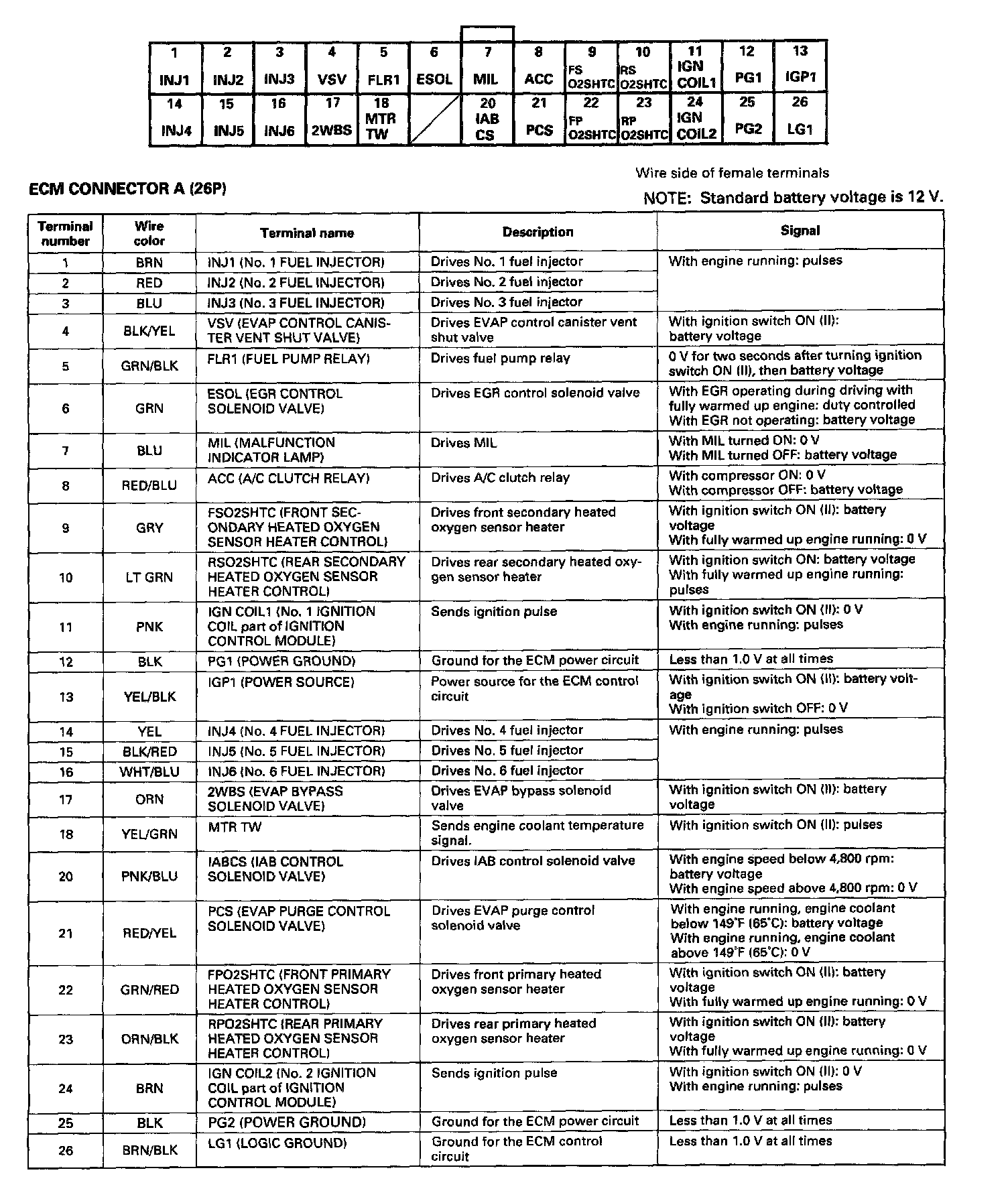

ECM Connector A (26P):

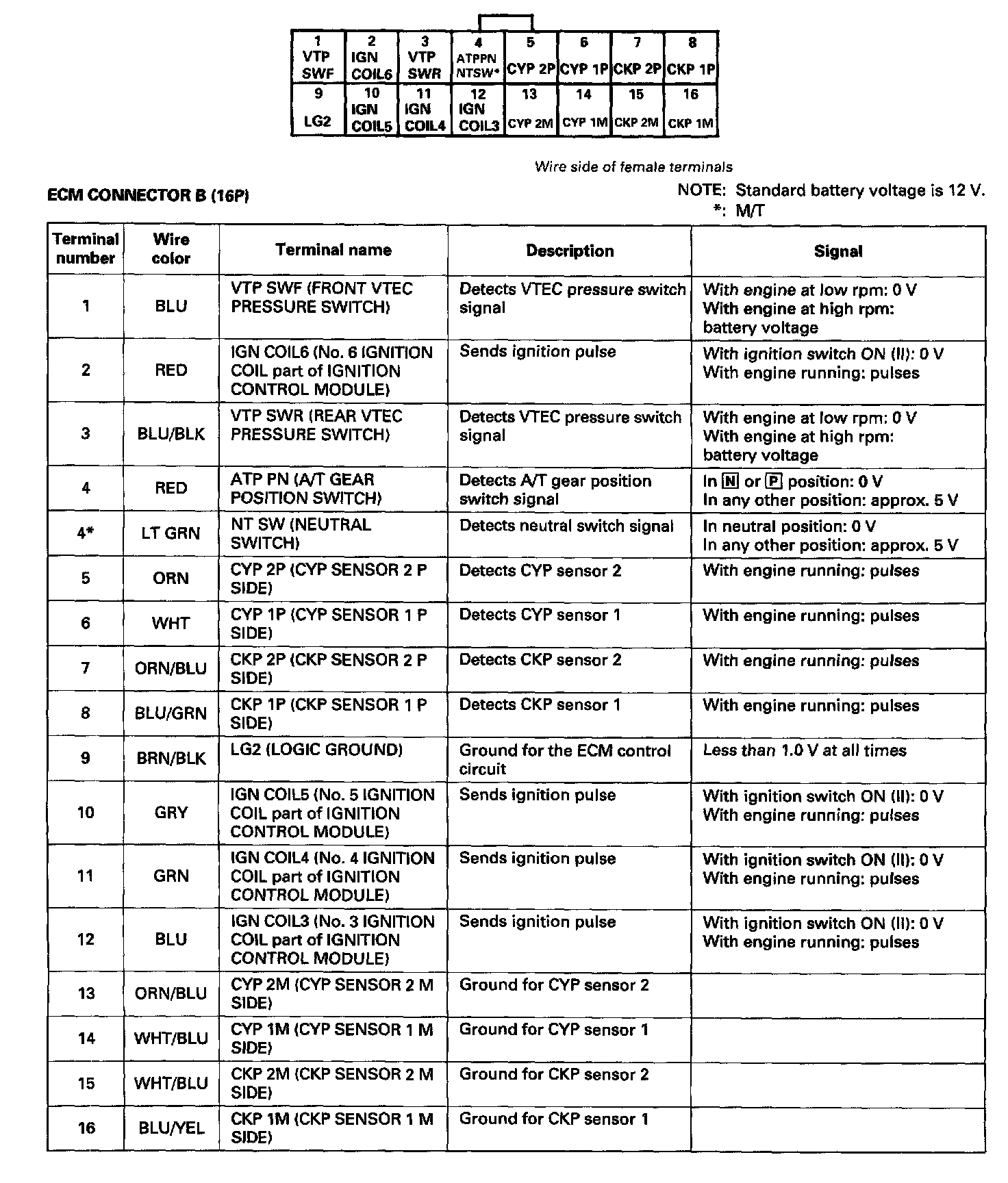

ECM Connector B (16P):

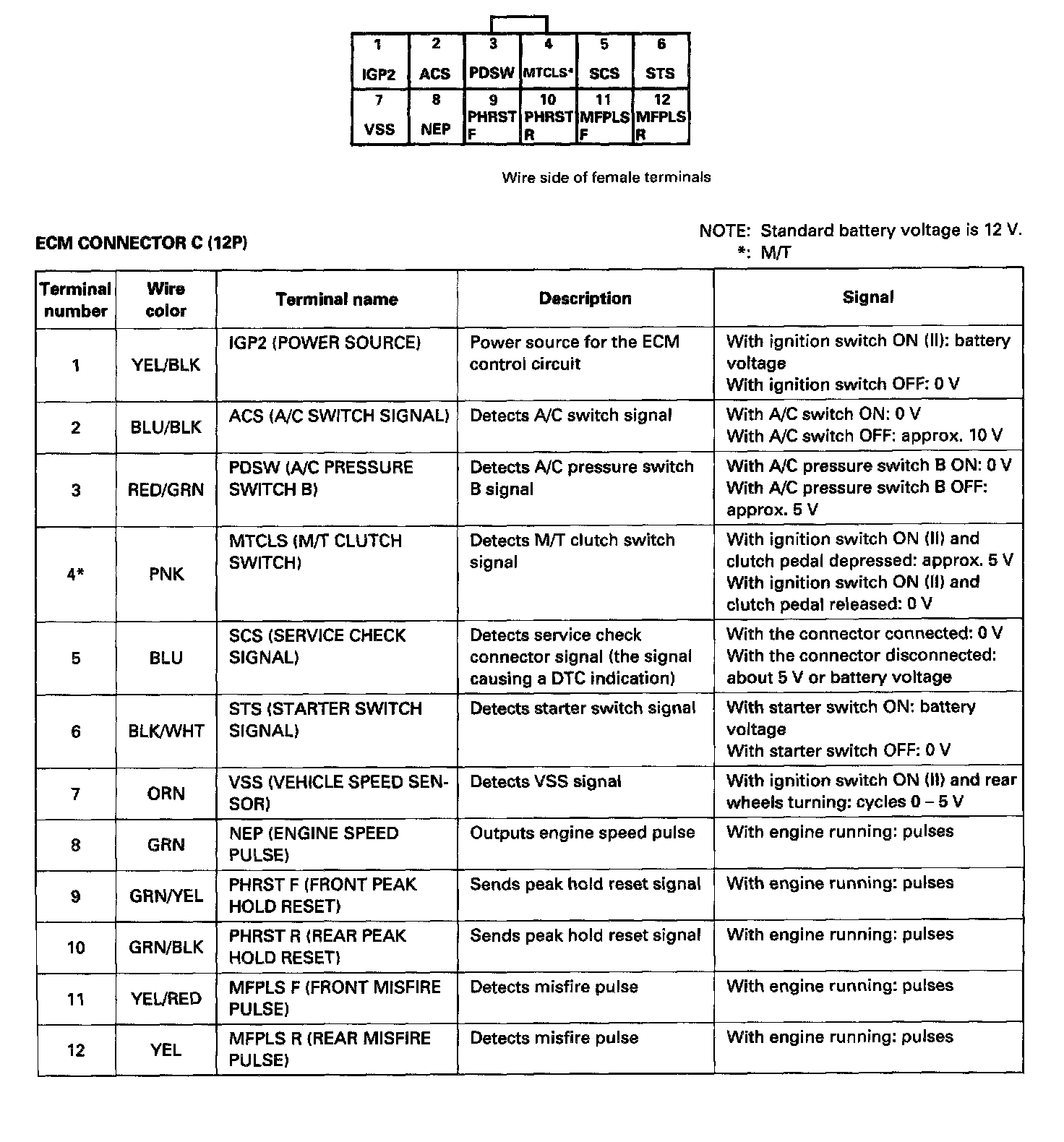

ECM Connector C (12P):

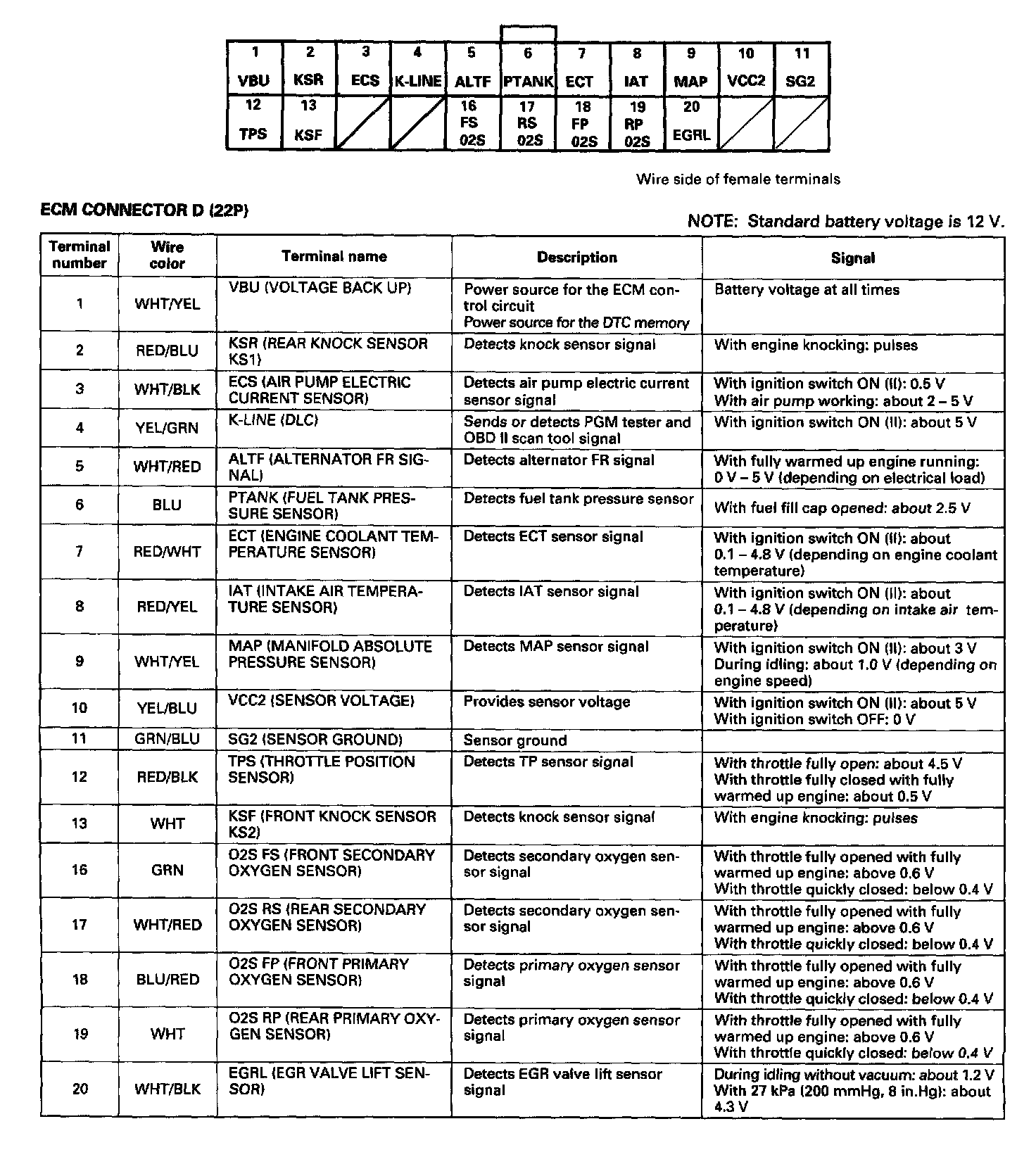

ECM Connector D (22P):

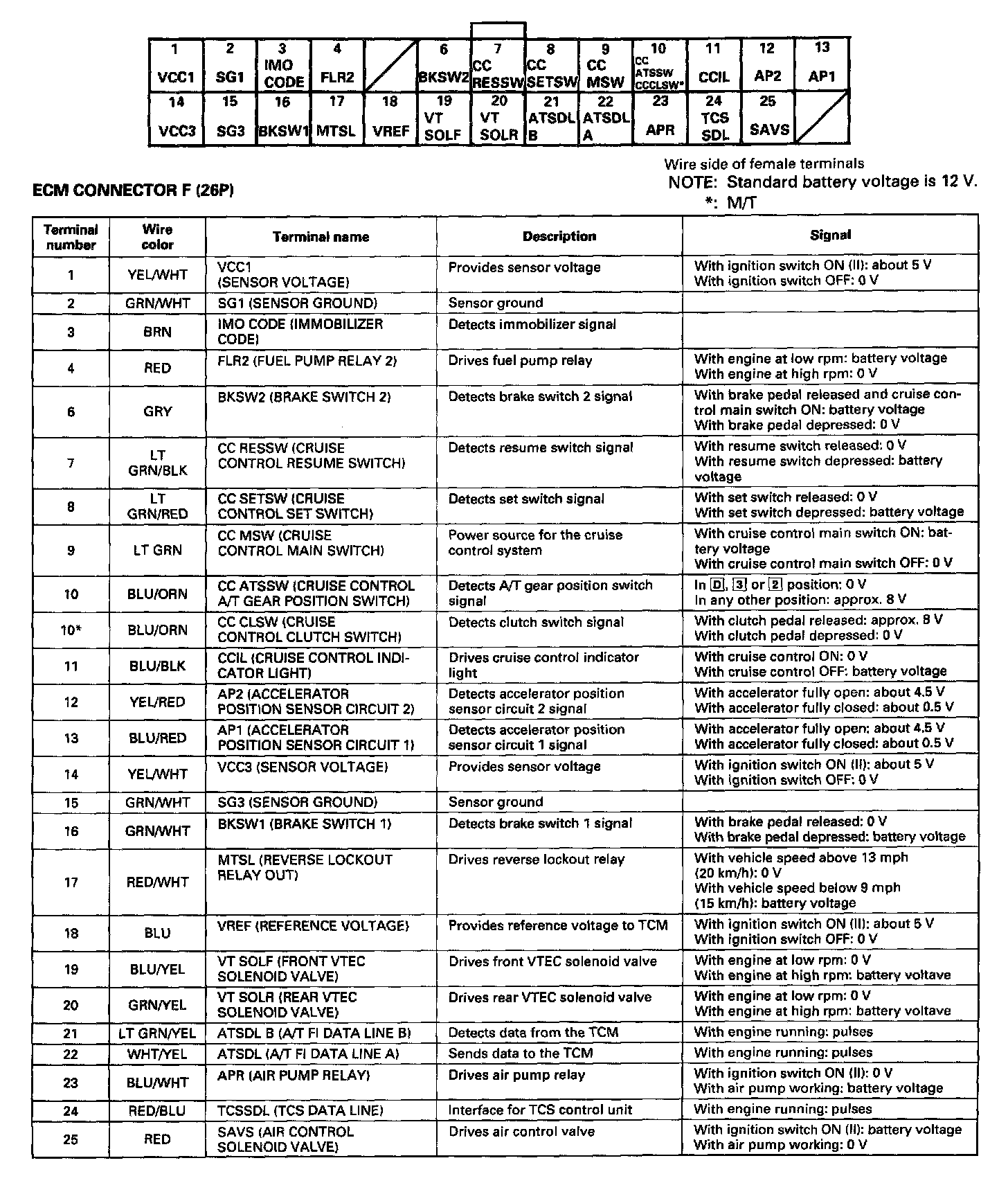

ECM Connector F (26P):

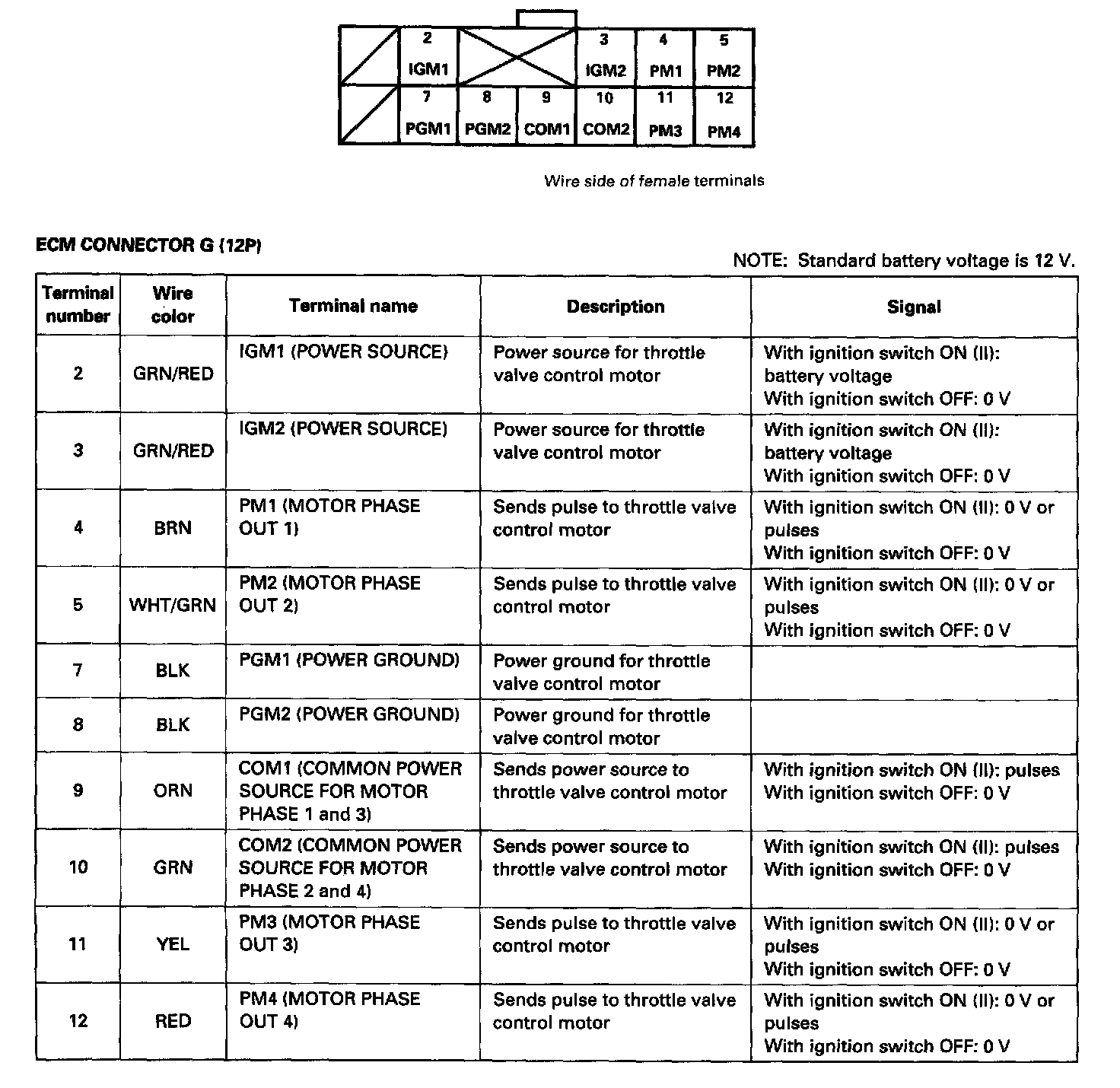

ECM Connector G (12P):
