Service Check Signal (SCS) Circuit Method

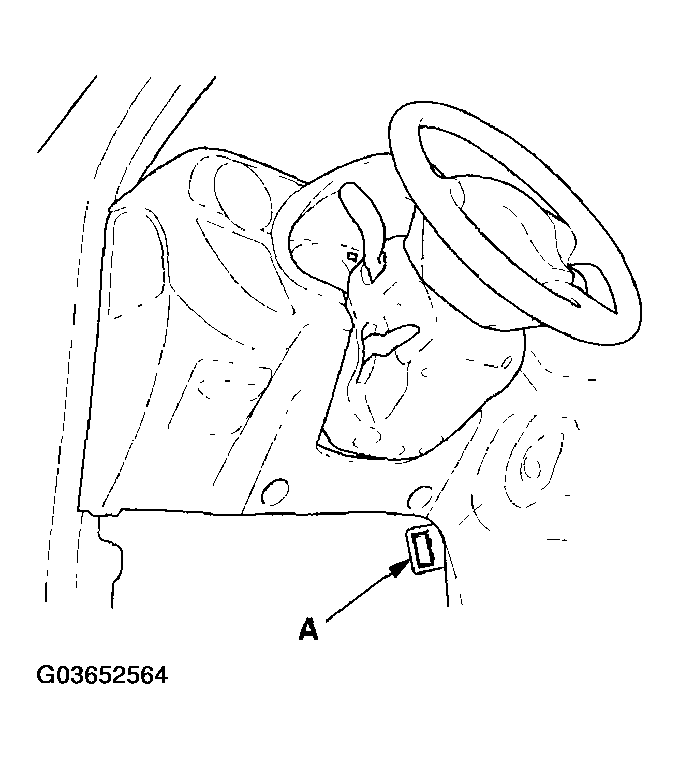

- With the ignition switch OFF, connect the HDS to the 16P data link connector (DLC) (A) under the driver's side of the dashboard next to the accelerator pedal.
- Short the SCS circuit to body ground using the HDS.
- Press the brake pedal.
- Turn the ignition switch ON (II) while continuing to press the brake pedal.
- After the ABS indicator goes off, release the brake pedal.
- After the ABS indicator comes on, press the brake pedal again.
- After the ABS indicator goes off, release the brake pedal.
You cannot clear the DTC unless these conditions are met:
- The vehicle speed is 6 mph (10 km/h) or less.
- The SCS circuit is shorted to body ground before the ignition switch is turned ON (II).
- The brake pedal is pressed before the ignition switch is turned ON (II).
- After a few seconds, the ABS indicator blinks twice and the DTC is cleared. If the indicator does not blink twice, repeat steps 1 thru 7. If the ABS indicator stays on after it blinks twice, check the DTC, because a problem was detected during initial diagnosis before shifting to DTC clearing mode.
- Turn the ignition switch OFF.
- Disconnect the HDS from the DLC.
