Keyless Receiver Unit Input Test
- Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).

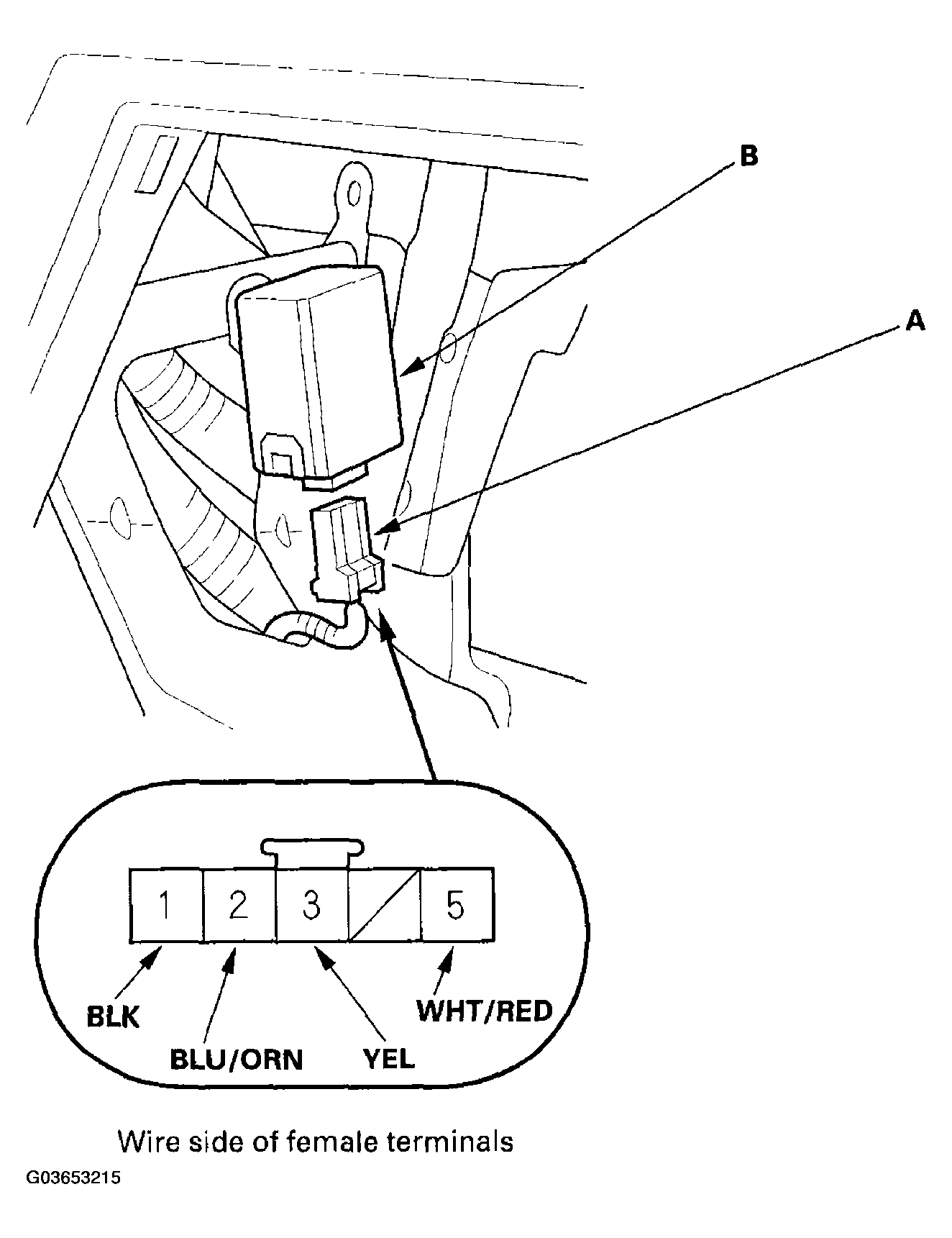

- Disconnect the 5P connector (A) from the keyless receiver unit (B).
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.
- With the connector still disconnected, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the keyless receiver unit.POSSIBLE CAUSE
Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained 1 BLK Under all conditions Check for continuity to ground:
There should be continuity.- Poor ground (G401)
- An open in the wire
3 YEL Ignition switch ON (II) Check for voltage to ground:
There should be battery voltage.- Blown No. 10 (7.5 A) fuse in the under-dash fuse/relay box
- An open in the wire
5 WHT/RED Under all conditions Check for voltage to ground:
There should be battery voltage.- Blown No. 9 (7.5 A) fuse in the underhood fuse/relay box
- An open in the wire
2 BLU/ORN Under all conditions Check for continuity between the No. 2 terminal and the No. 2 terminal of the under-dash fuse/relay box connector K (17P):
There should be continuity.An open in the wire
