Function Test: Notes

Carefully pry out the driver's switch panel (see DRIVER'S SWITCH PANEL REMOVAL/INSTALLATION ).
Disconnect the 13P connector (A) from the power mirror switch (B).

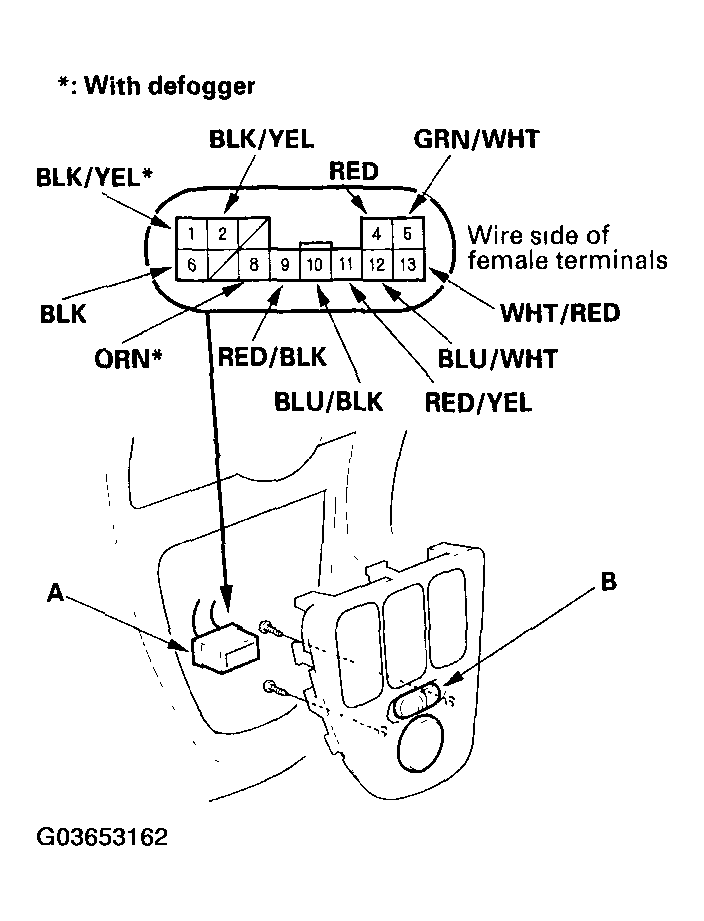

Fig 1: Disconnecting 13P Connector From Power Mirror Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the power mirror switch.
Choose the appropriate test based on the symptom:
- Both mirrors don't work, go to step 5.
- Left mirror doesn't work, go to step 7 .
- Right mirror doesn't work, go to step 8 .
- Defogger doesn't work, go to step 9 .
