ABS Modulator-Control Unit Inputs and Outputs for 25P Connector

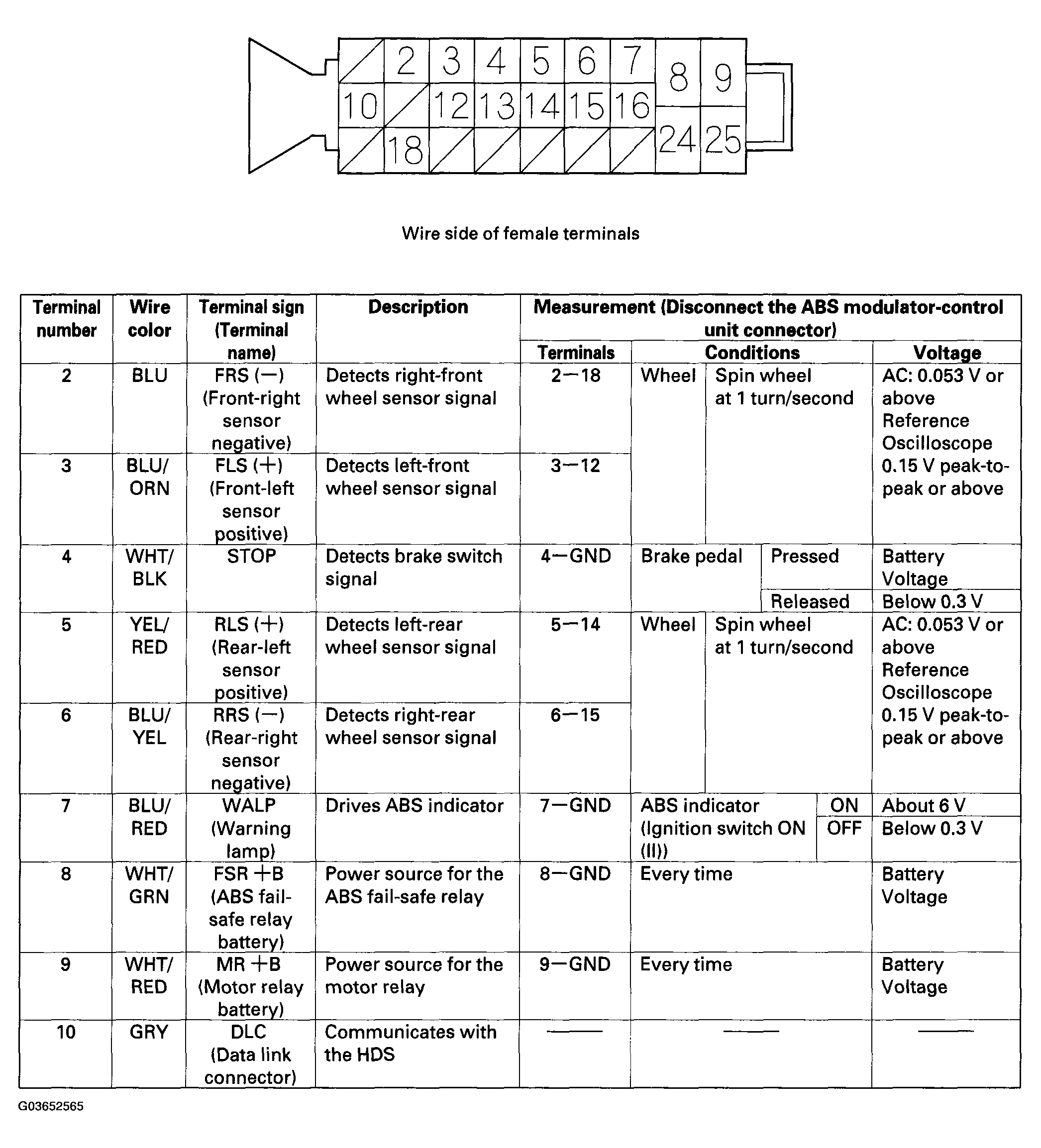

Fig 1: View Of Connector 25P Terminal Voltage Specification (2-10)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
