Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

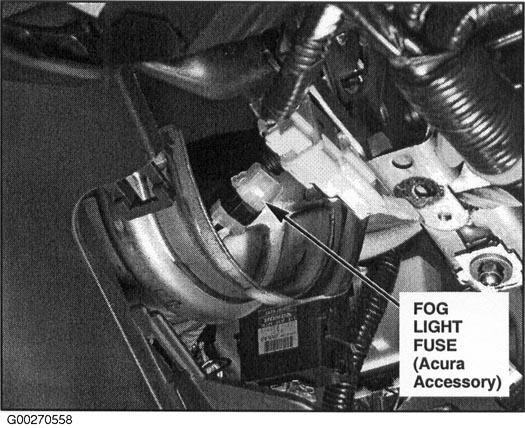

| Fog Light Fuse |
Under left side of dash. See Figure
. |

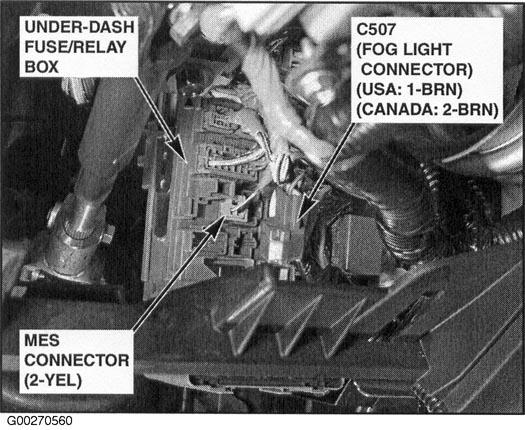

| Under-Dash Fuse/Relay Box |
Under left side of dash. See Figure
. |

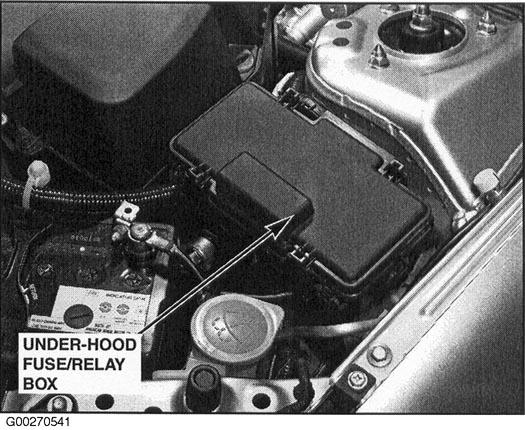

| Under-Hood Fuse/Relay Box |
Left side of engine compartment. See Figure
. |
