CMP Sensor B (TDC Sensor)

CMP Sensor B Replacement

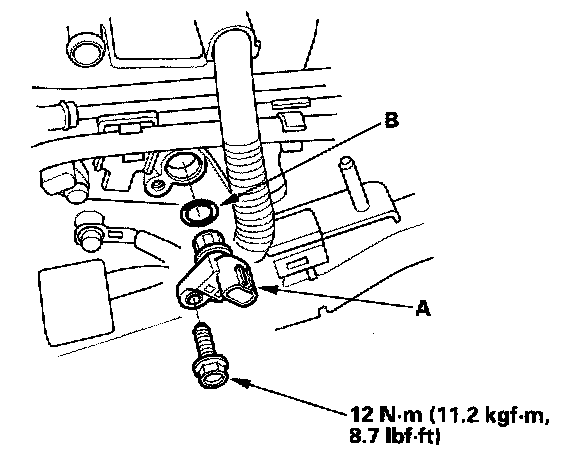

1. Remove the air cleaner.
2. Disconnect the CMP sensor B 3P connector.




3. Remove the CMP sensor B (A) from the exhaust camshaft side of the cylinder head.
4. Install the sensor in the reverse order of removal with a new O-ring (B).
