Computers and Control Systems: Locations

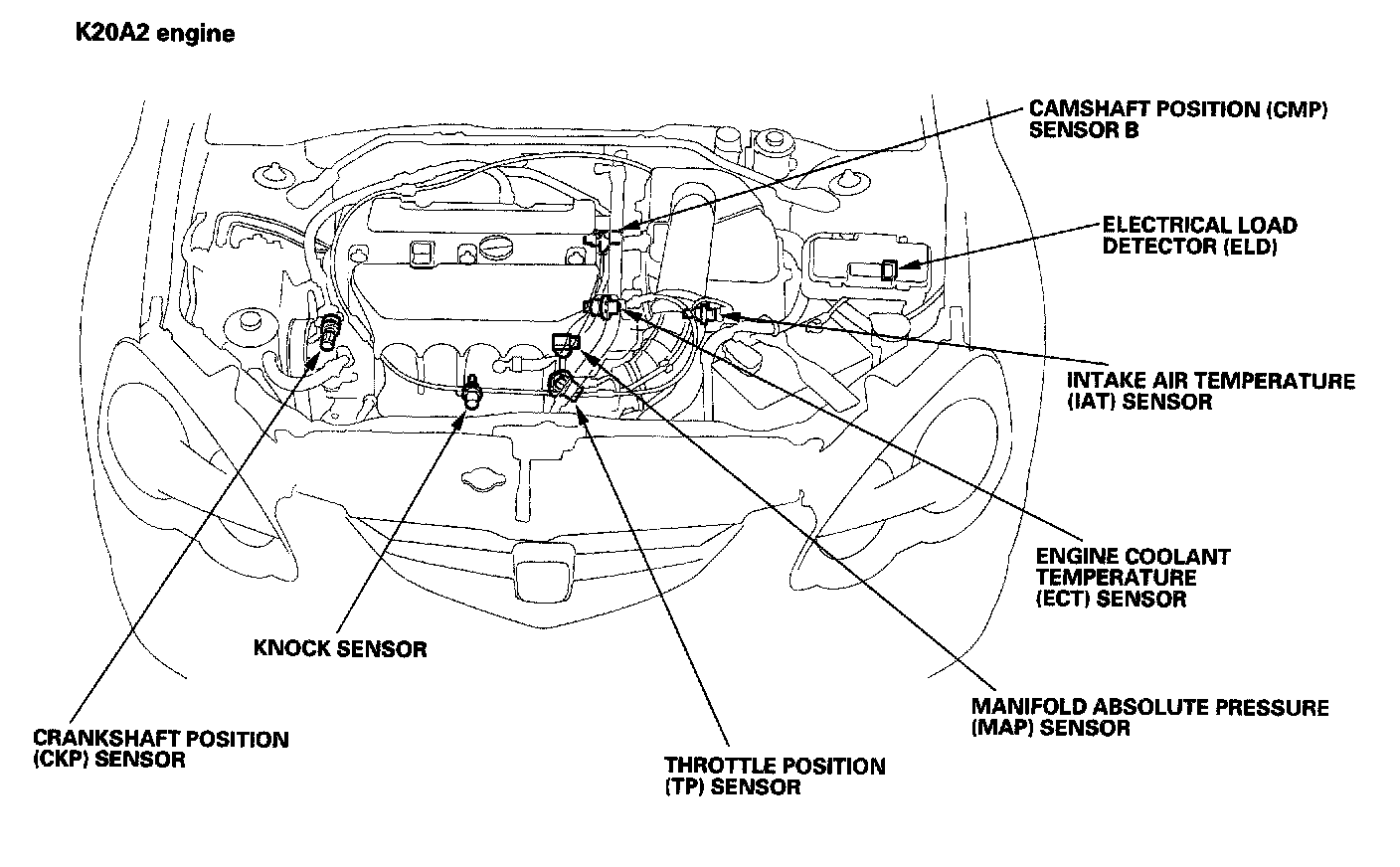

PGM-FI System - Component Location Index (K20A2):

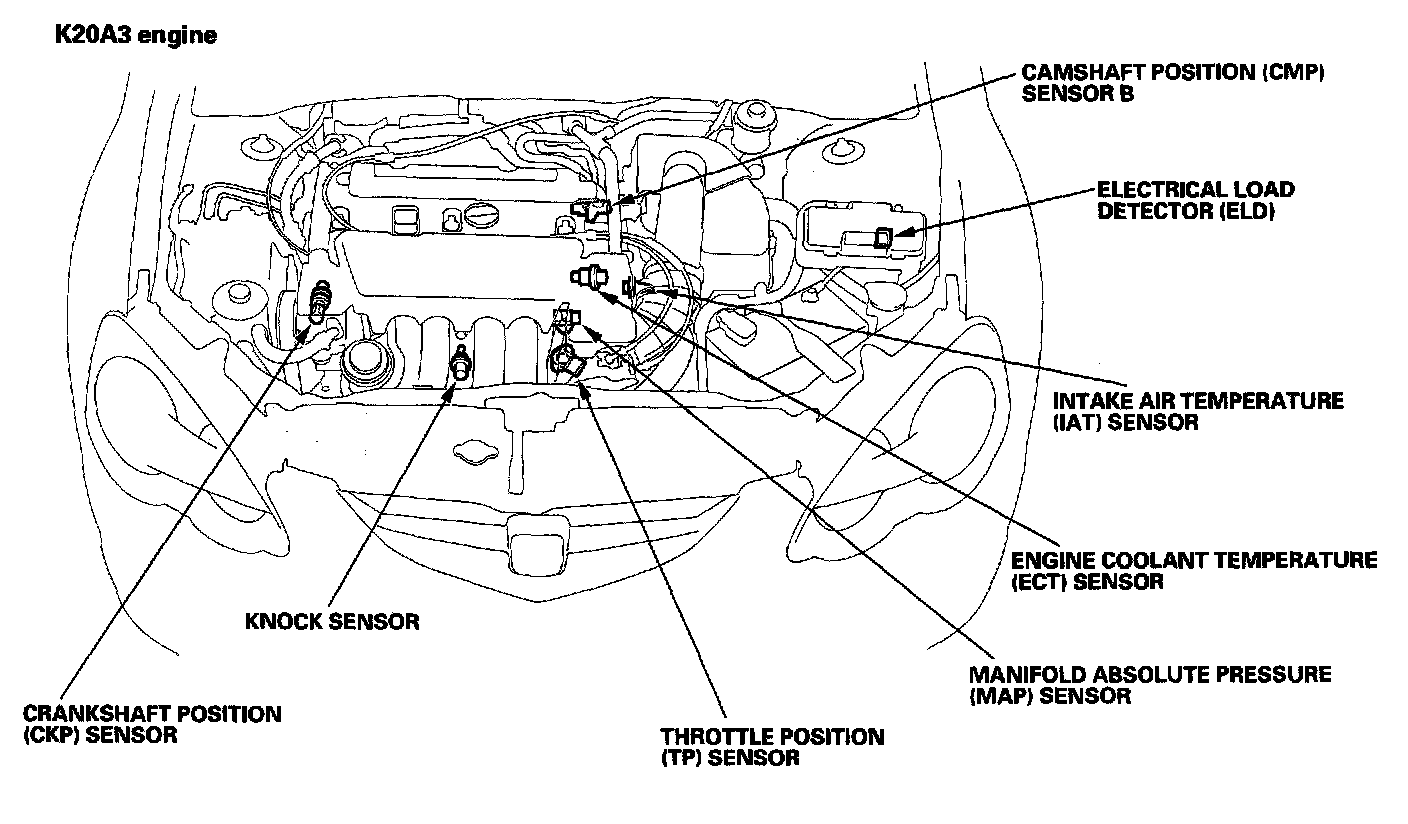

PGM-FI System - Component Location Index (K20A3):

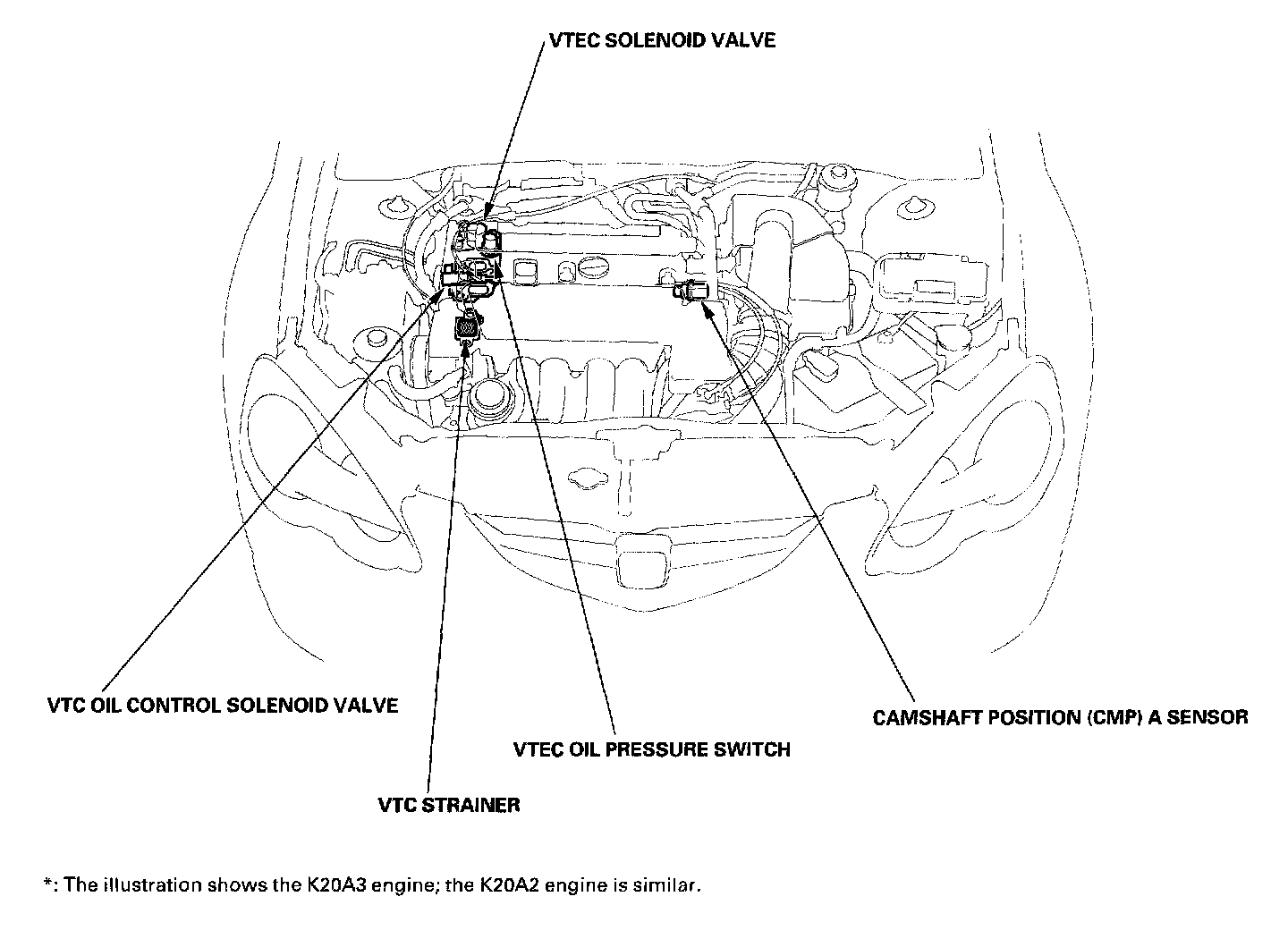

VTEC/VTC - Component Location Index:

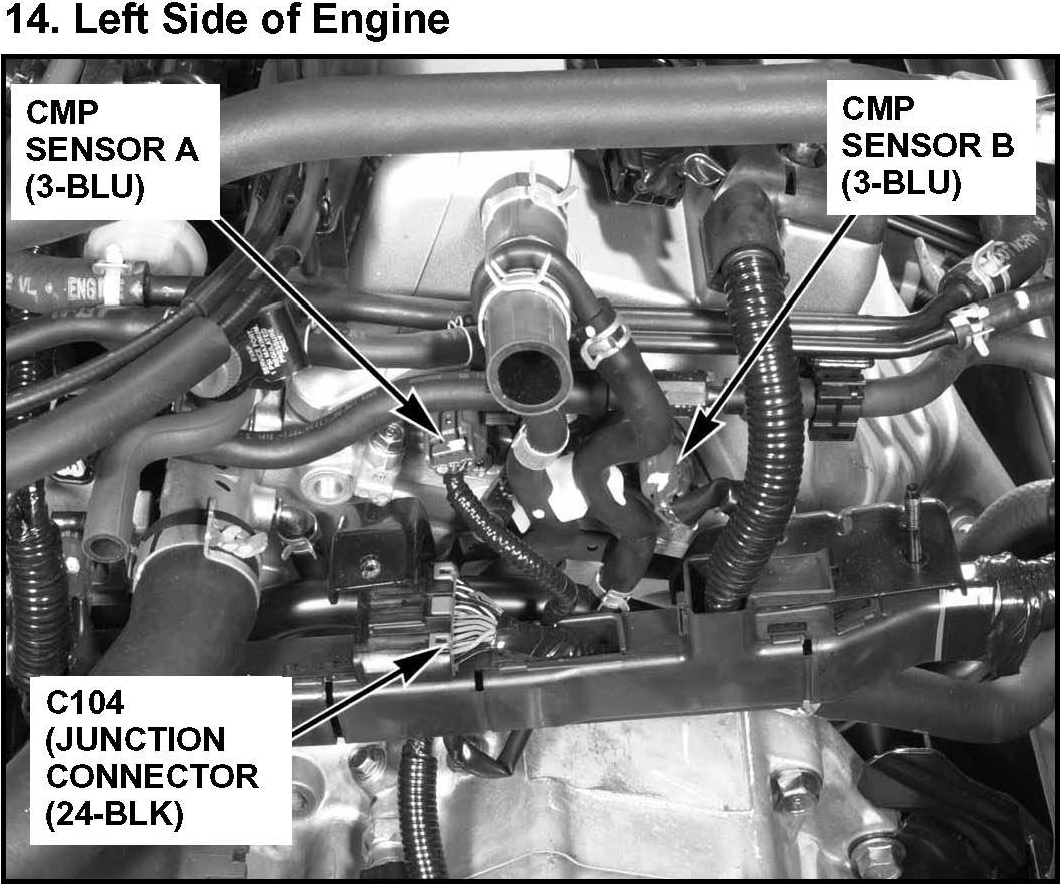

14. Left Side Of Engine:
