Audio Unit Connector Inputs and Outputs

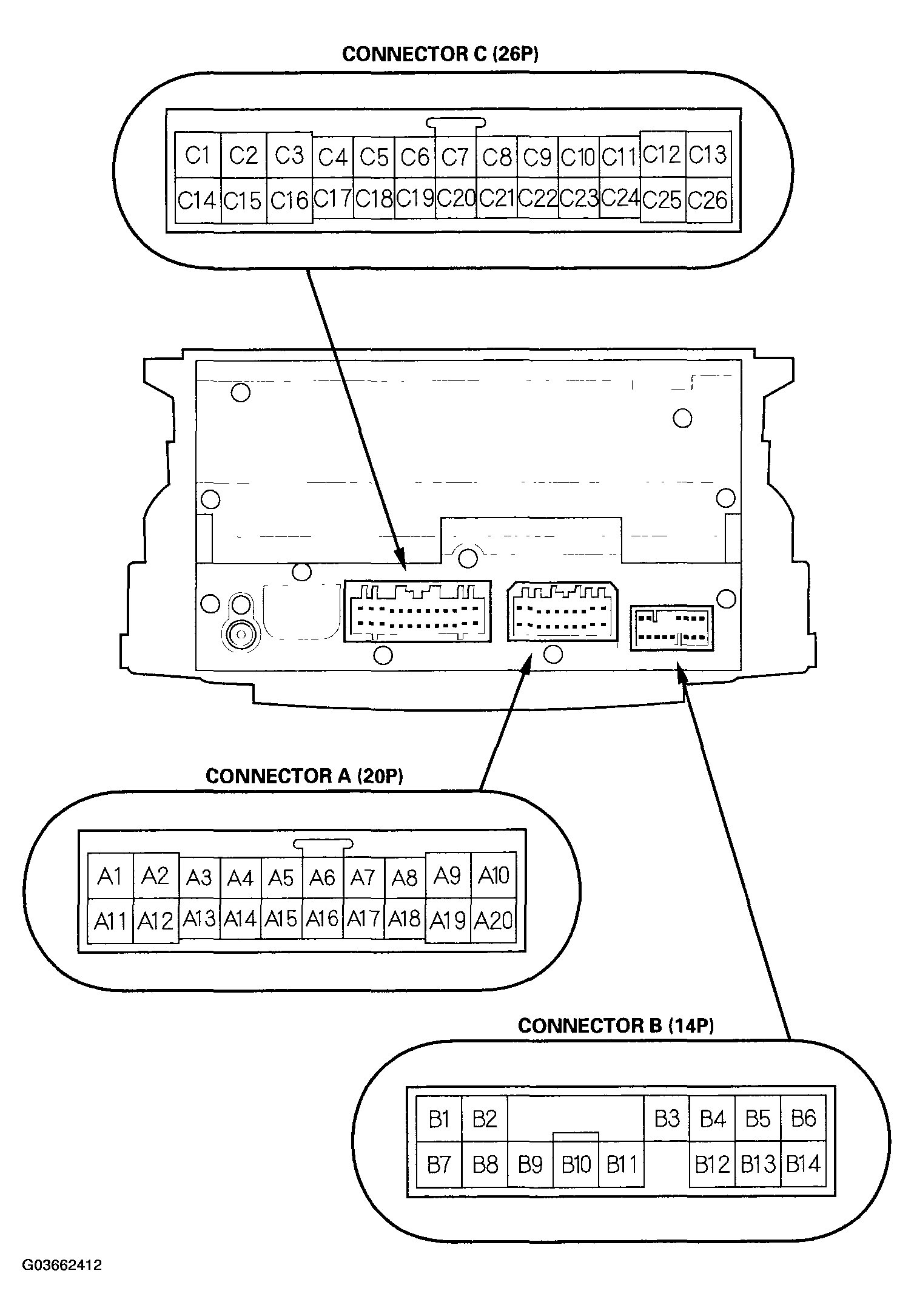

Fig 1: Identifying Audio Unit Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When replacing an audio unit connector, match the wires to the cavities listed in the following table.

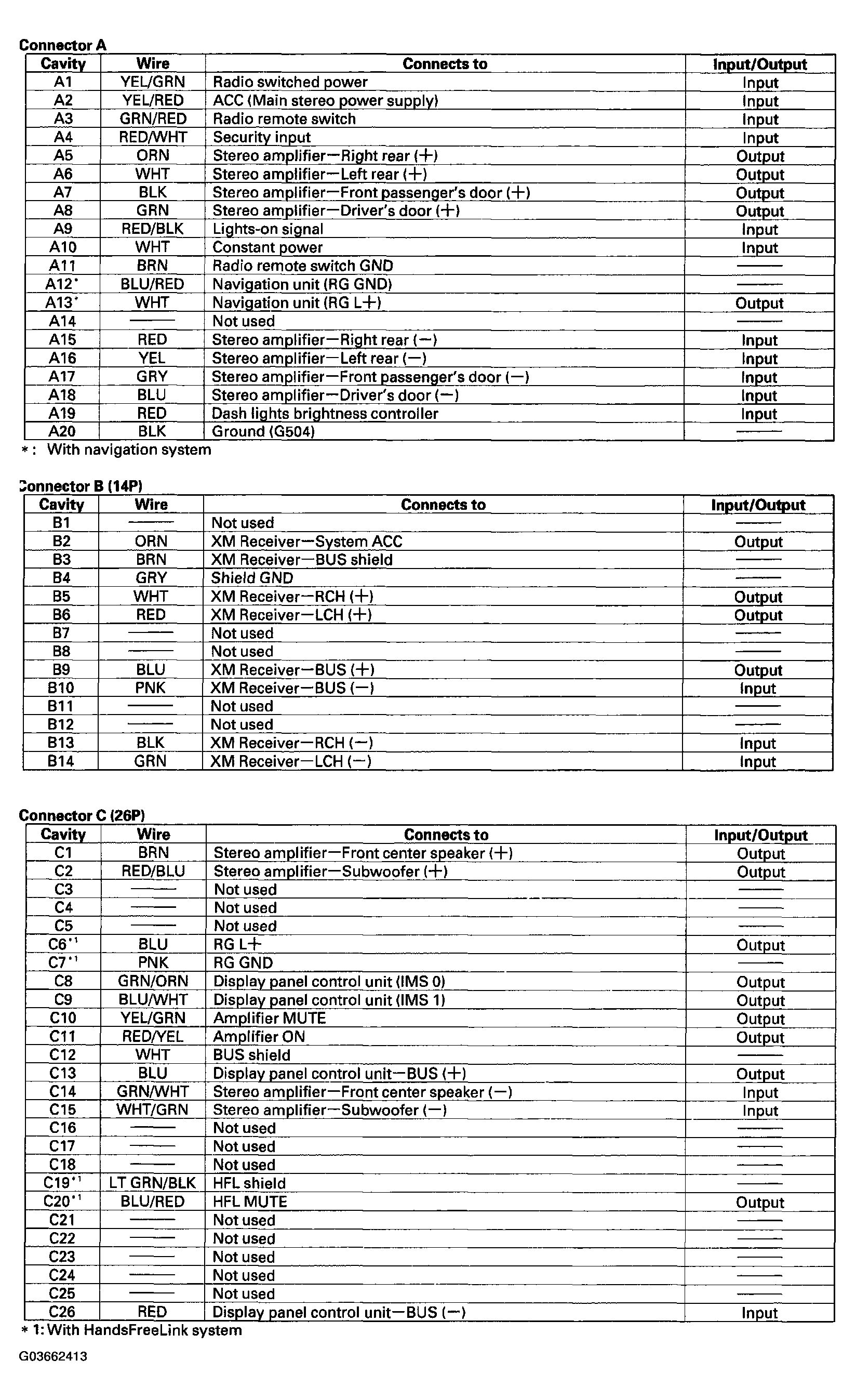

Fig 2: Connector Reference Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
