Audio-HVAC Subdisplay Unit Inputs and Outputs for 10P Connector

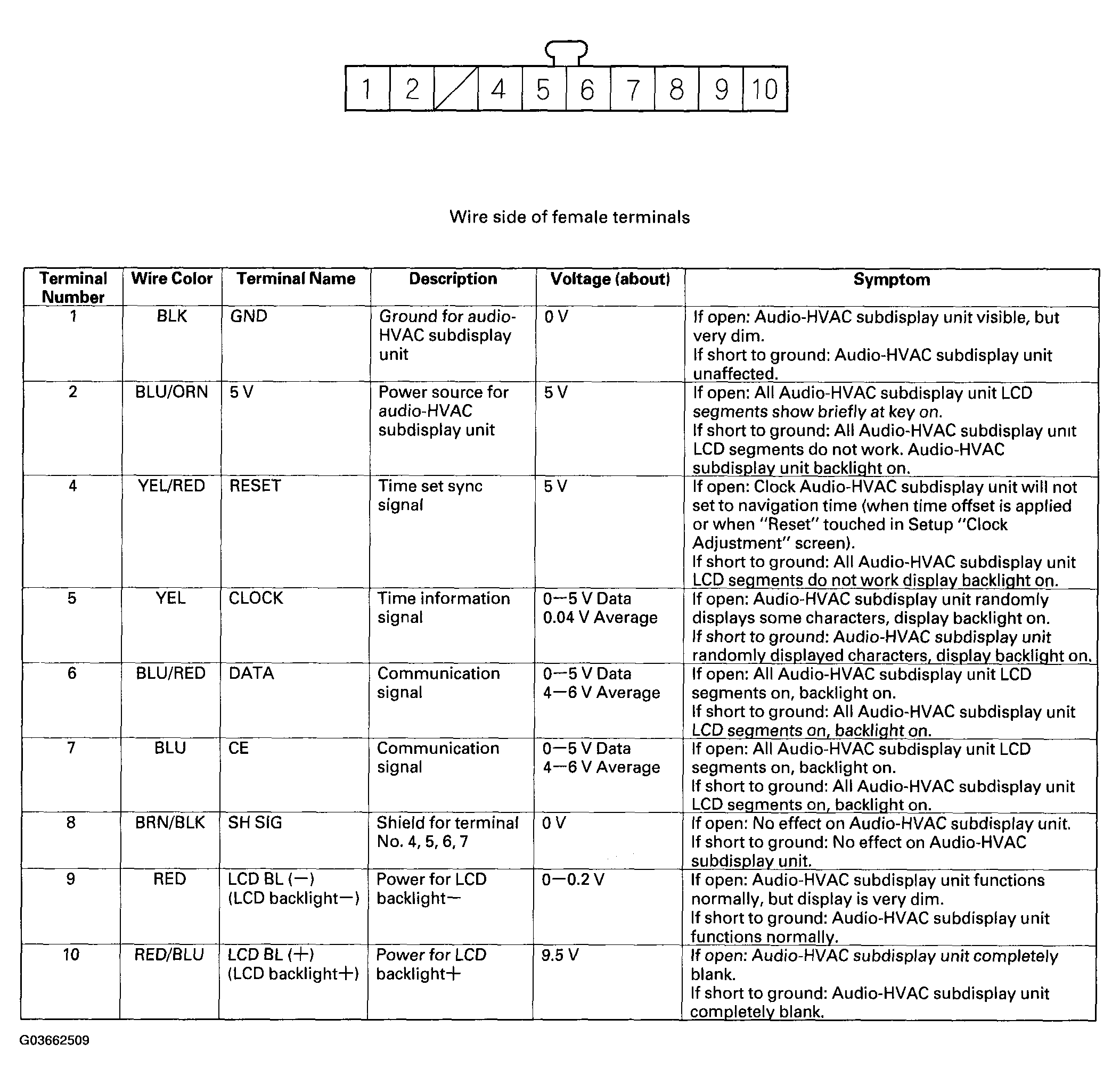

Fig 1: Identifying 10P Connector Audio-HVAC Subdisplay Unit Inputs And Outputs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
