C633 Connector End View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
C633 Connector End View

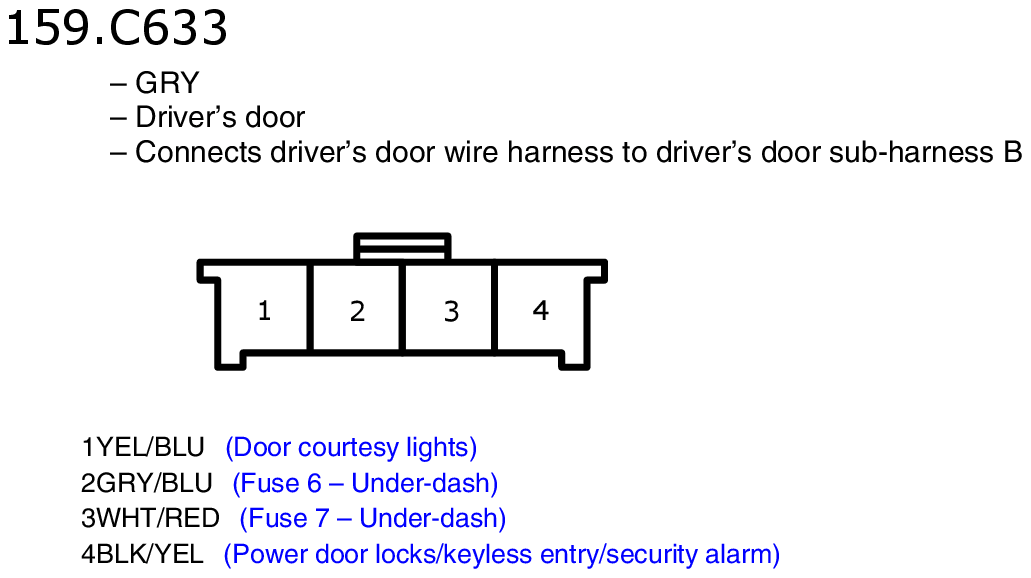

Fig 1: C633 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
