ECT Sensor Replacement
- Drain the engine coolant (see COOLANT CHECK
).
- Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION
).

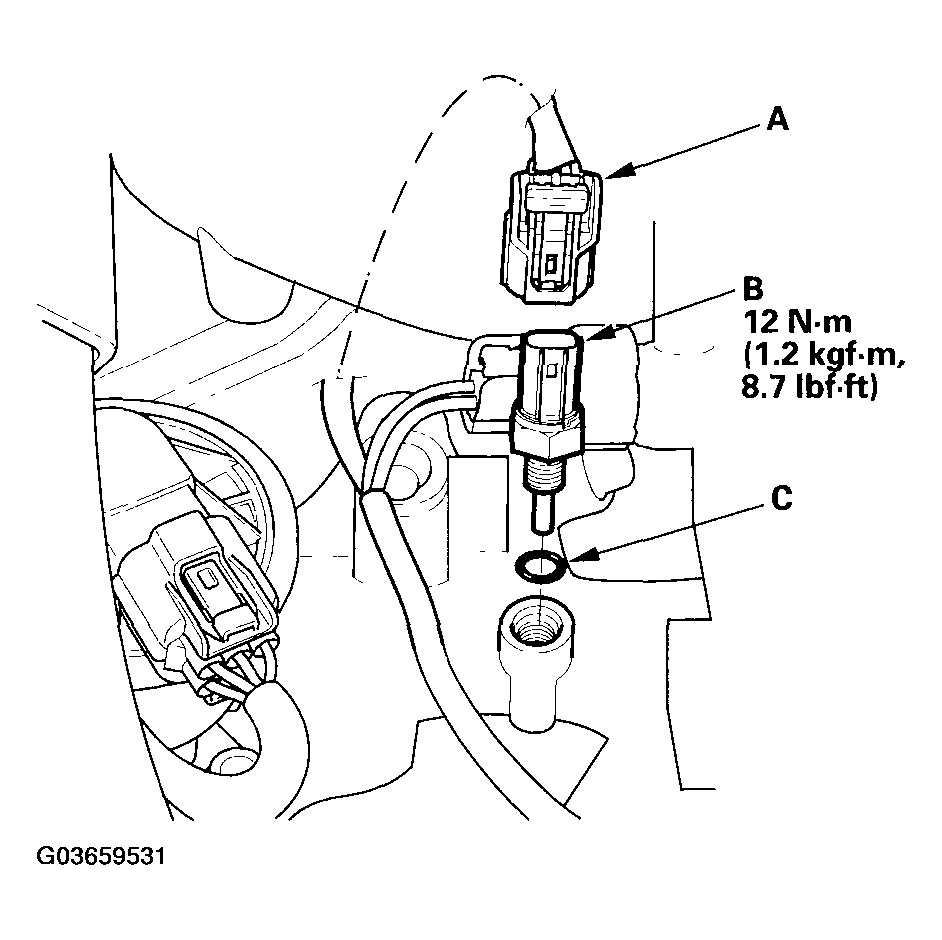

- Disconnect the ECT sensor 2P connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the ECT sensor (B).
- Install the sensor in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant (see COOLANT CHECK
).
