Park Pin Switch Test
- Remove the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION
).

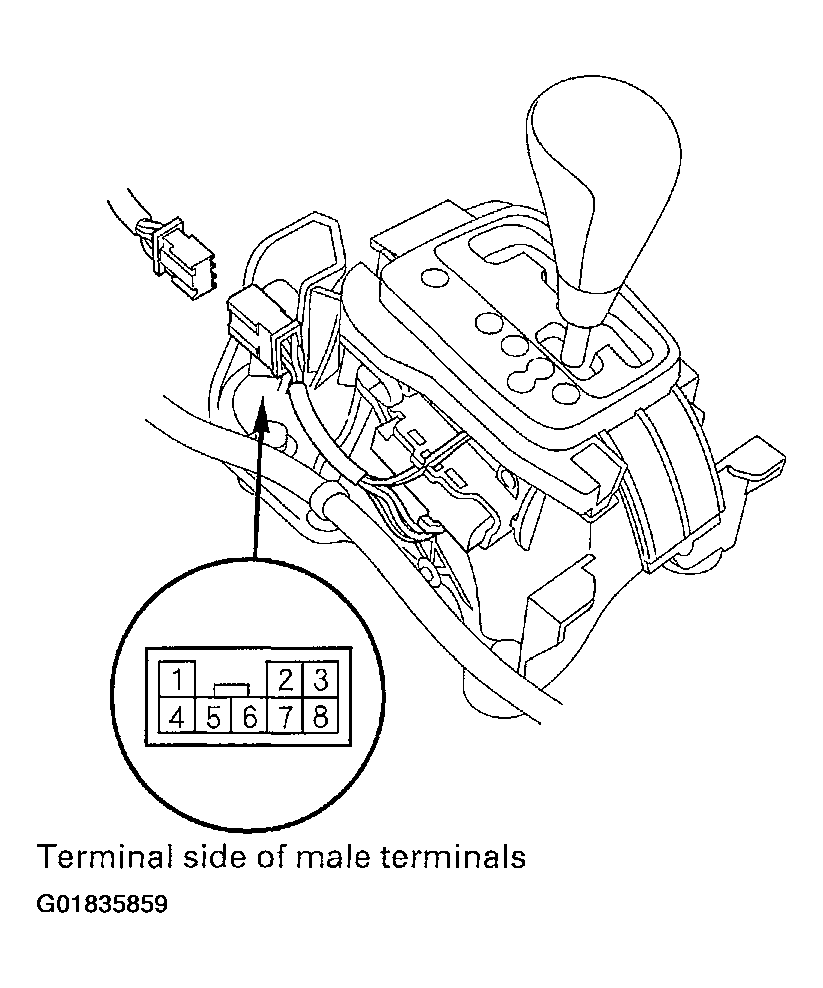

- Disconnect transmission gear selection switch/park pin switch connector.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Shift the shift lever into the P position, then check for continuity between connector terminals No. 1 and No. 4. There should be no continuity.
- Shift out of the P position, and check for continuity between terminals No. 1 and No. 4. There should be continuity.
- If the park pin switch is faulty, replace it.
- Install the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION
).
