Gauge Control Module Replacement

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the screws from the gauge control module (A), and spread a protective cloth (B) on the upper column cover.

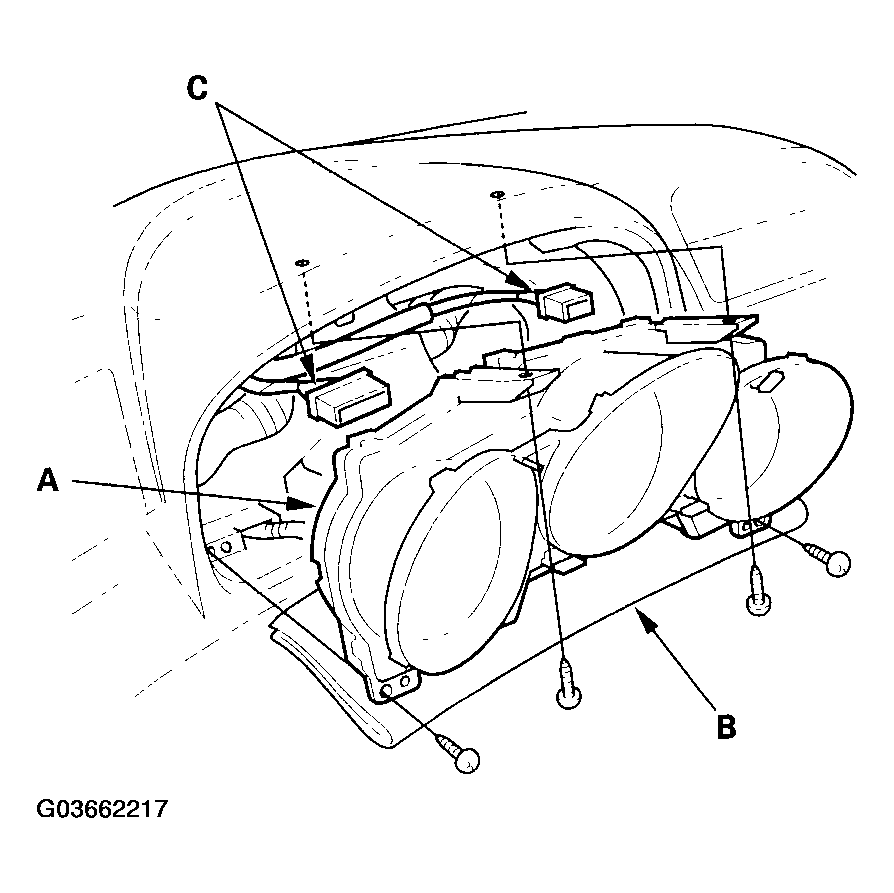

    Fig 1: Removing Gauge Control Module
    G03662217Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (C), and remove the gauge control module.
  4. Install the gauge in the reverse order or removal.
