Outside Air Temperature Sensor Test
- Remove the outside air temperature sensor (see OUTSIDE AIR TEMPERATURE SENSOR TEST
).
- Dip the sensor in ice water, and measure the resistance. Then pour warm water on the sensor, and check for a change in resistance.

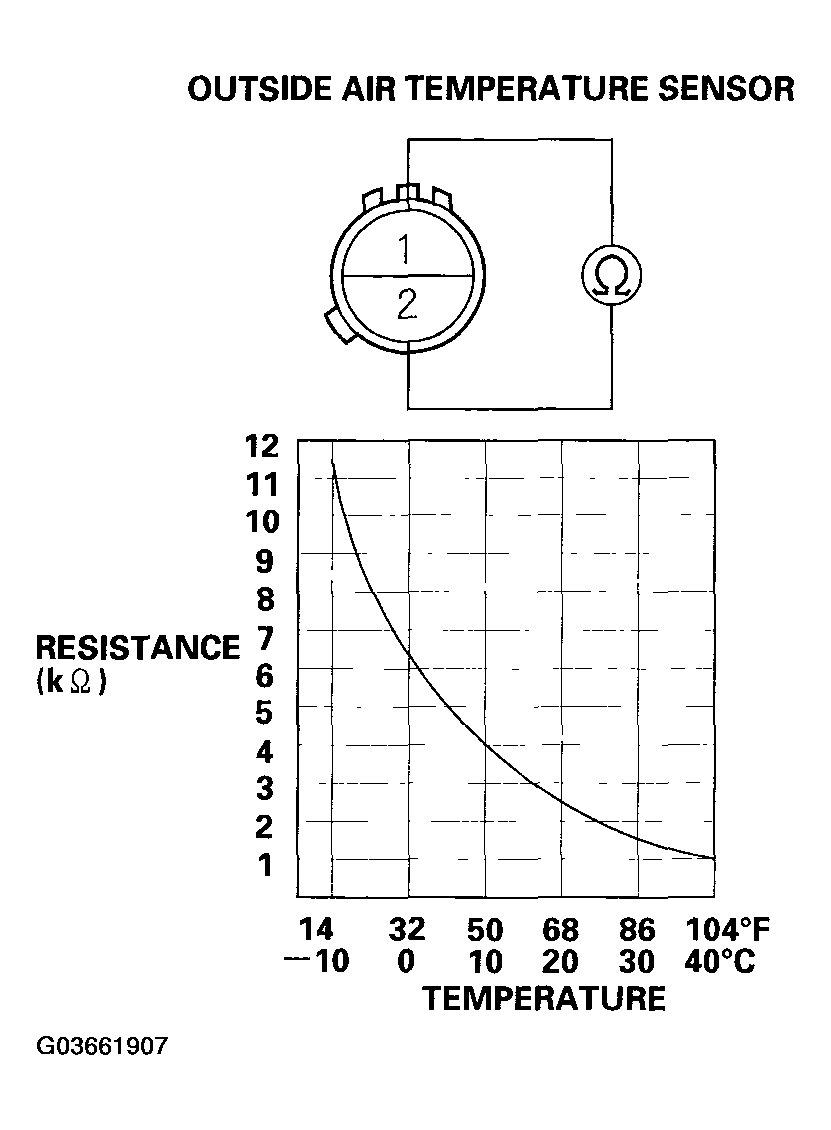

- Compare the resistance reading between the No. 1 and No. 2 terminals of the outside air temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the resistance is not as specified, replace the outside air temperature sensor (see OUTSIDE AIR TEMPERATURE SENSOR TEST
).
