Transmission Disassembly

Transmission Disassembly

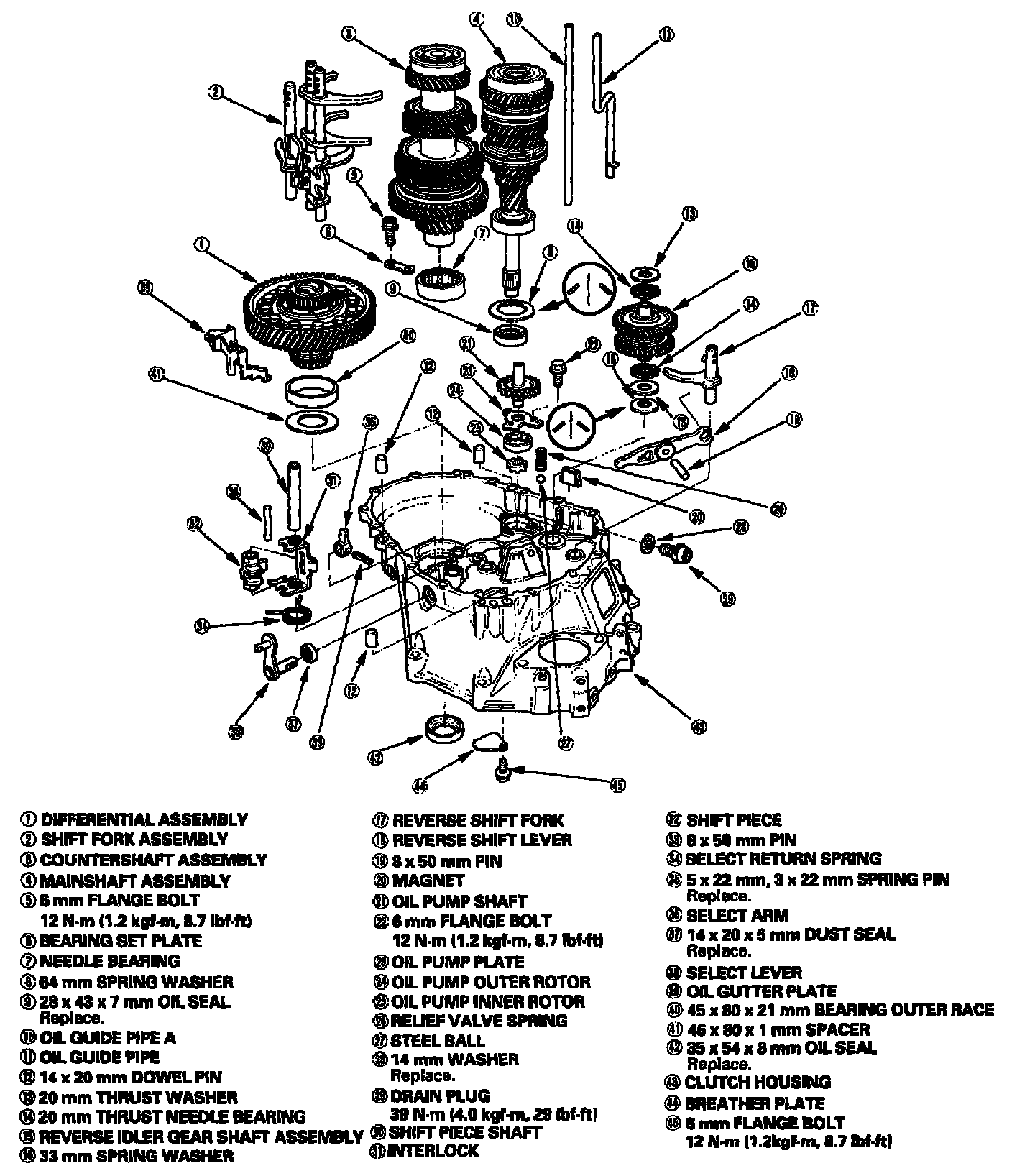

Exploded View - Clutch Housing

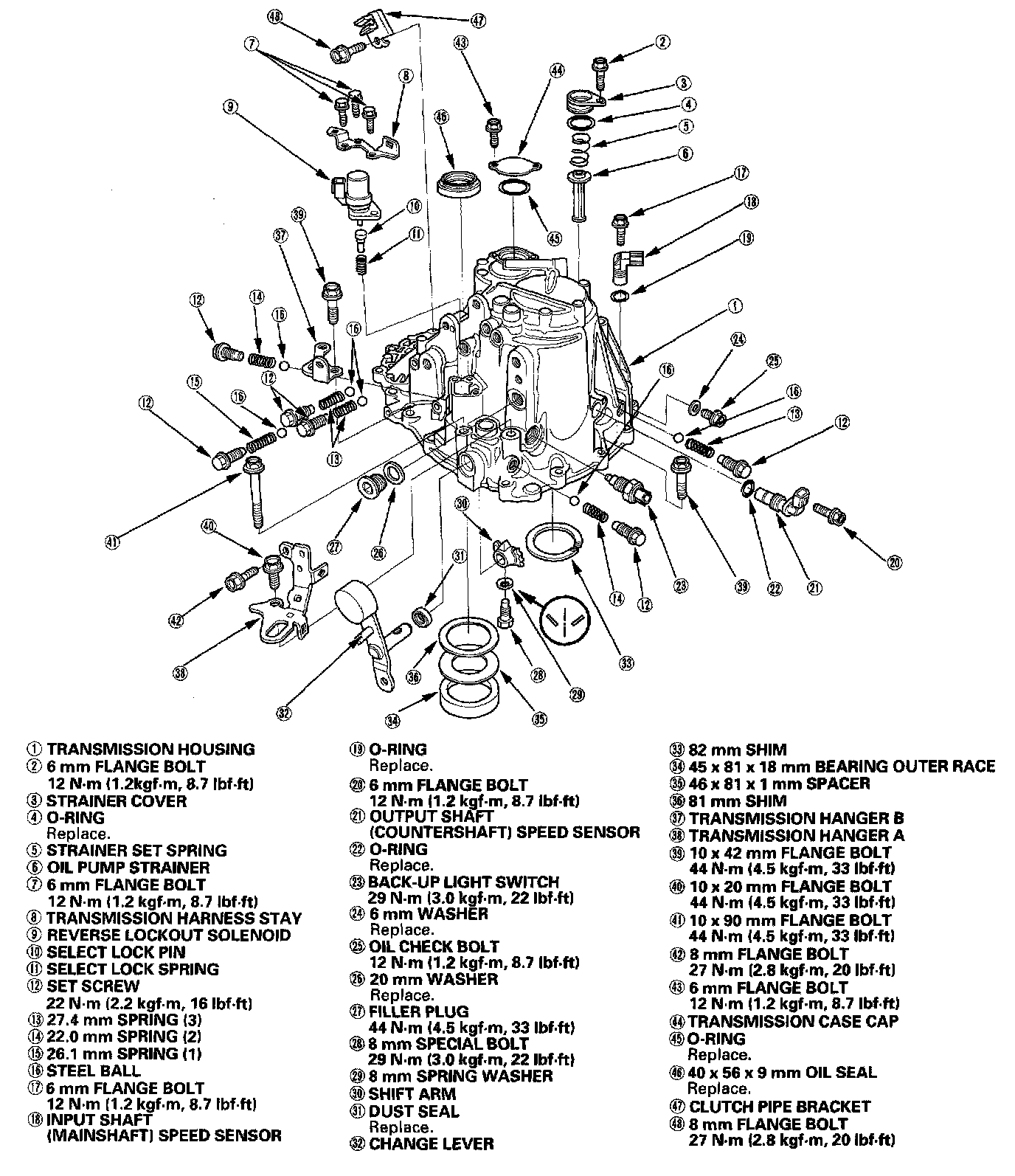

Exploded View - Transmission Housing
