Electronic Brake Control Module: Testing and Inspection

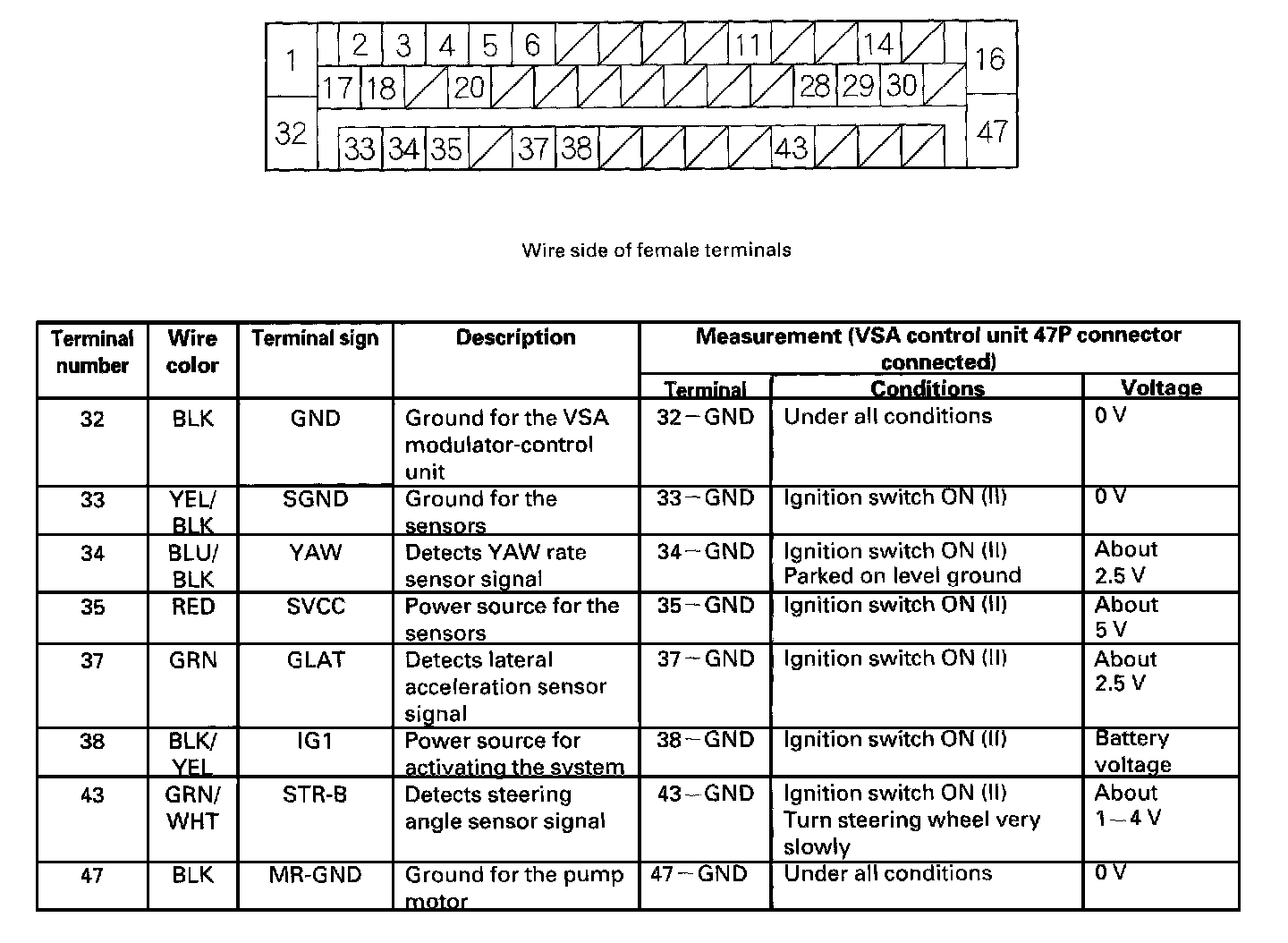

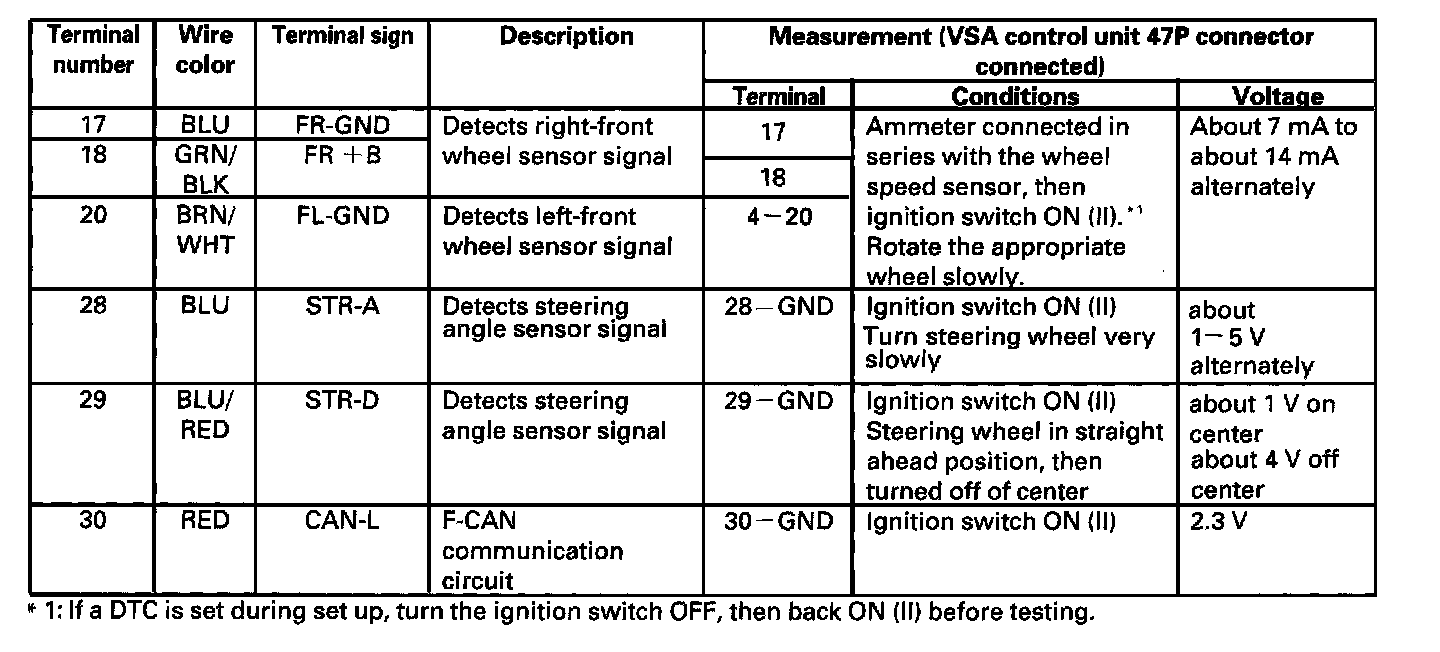

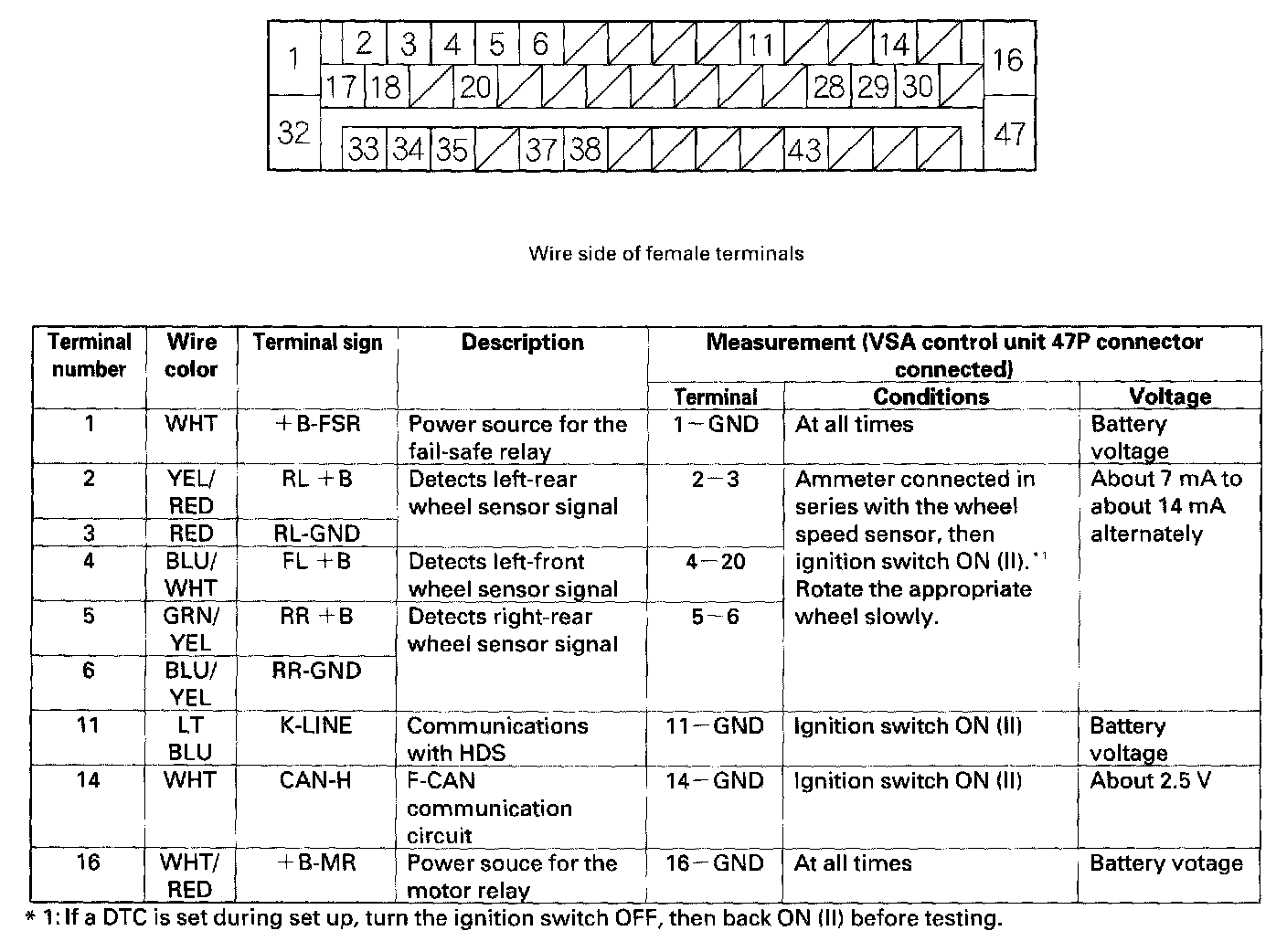

VSA Control Unit Inputs and Outputs for 47P Connector (connector attached to the VSA control unit. Back probe the terminals when testing in the table.)
