Rod Bearing Cap

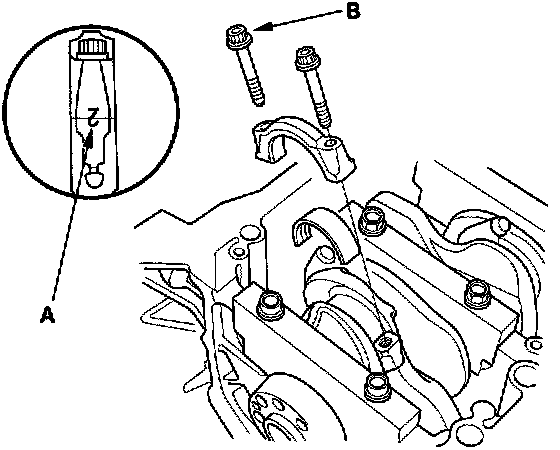

Apply engine oil to the bolt threads. Torque the bolts (B) to 20 Nm (2.0 kgf/m, 14 ft. lbs.).

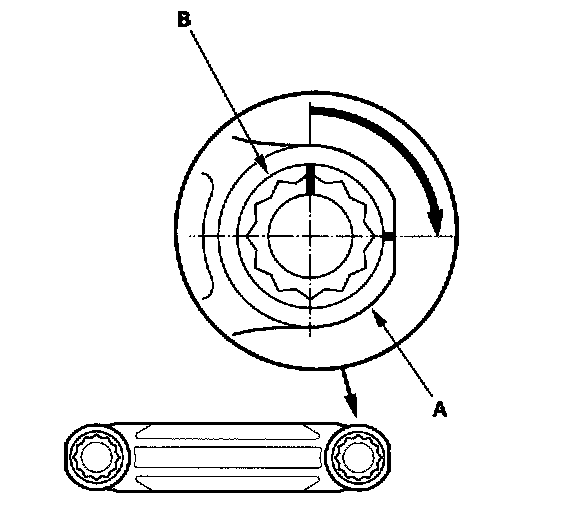

Mark the connecting rod (A) and bolt head (B) as shown.

Tighten the bolt until the mark on the bolt head lines up with the mark on the connecting rod (turn the bolt 90°).
