Voice Control Switch Removal/Installation

Voice Control Switch Removal/Installation

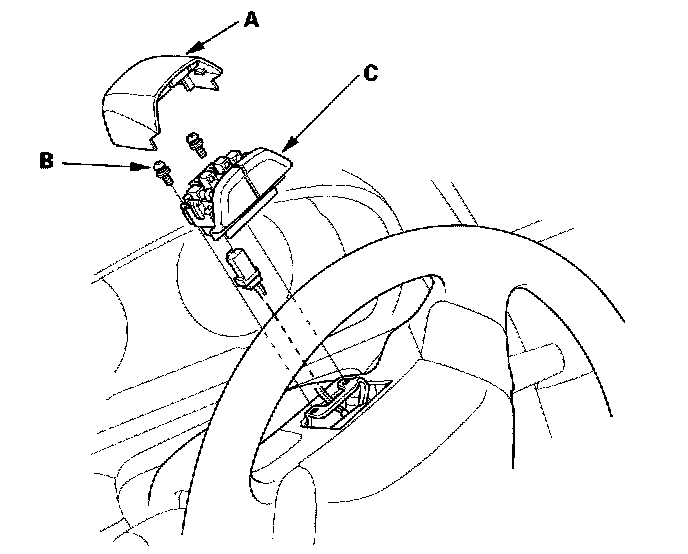

1. Remove the voice control switch cover (A) from left side of the steering wheel.
2. Remove the two screws (B) from the voice control switch (C), then remove the voice control switch.
3. Disconnect the voice control switch connector.
4. Install in the reverse order of removal.
