Connector End Views

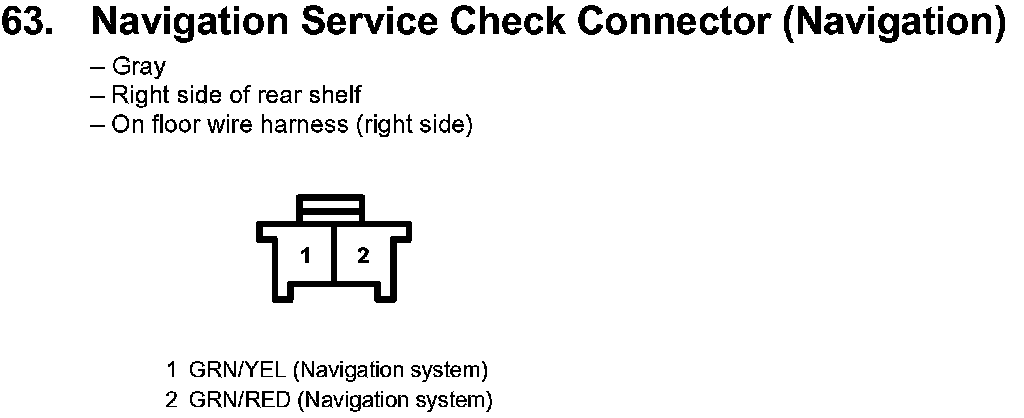

63. Navigation Service Check Connector (Navigation):

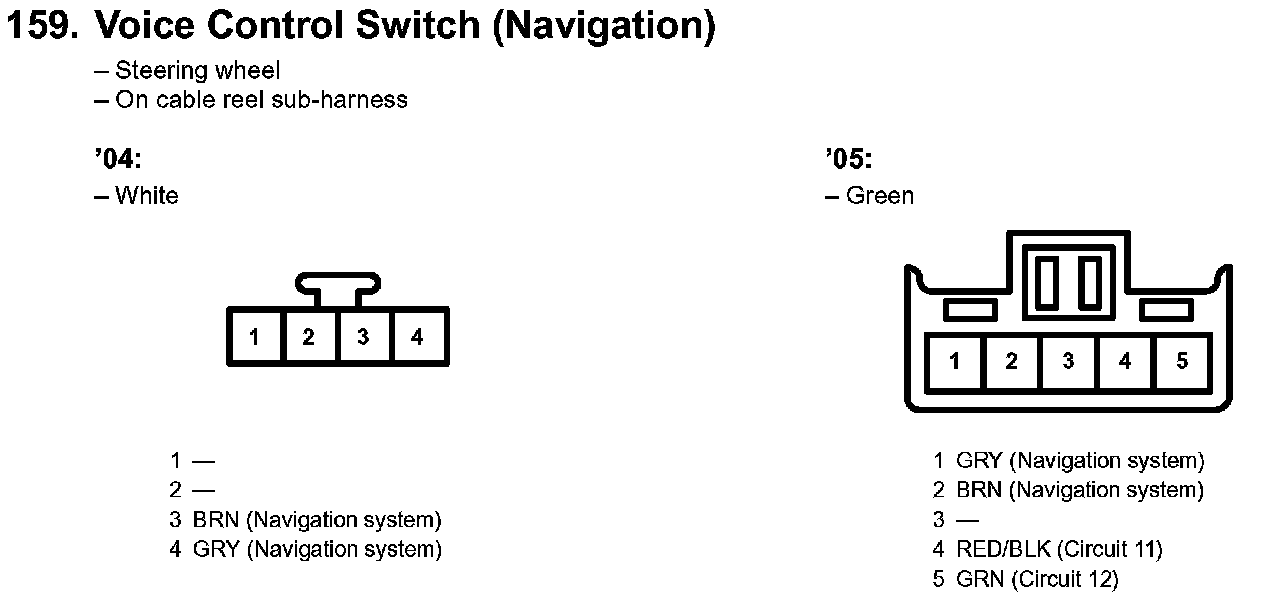

159. Voice Control Switch (Navigation):

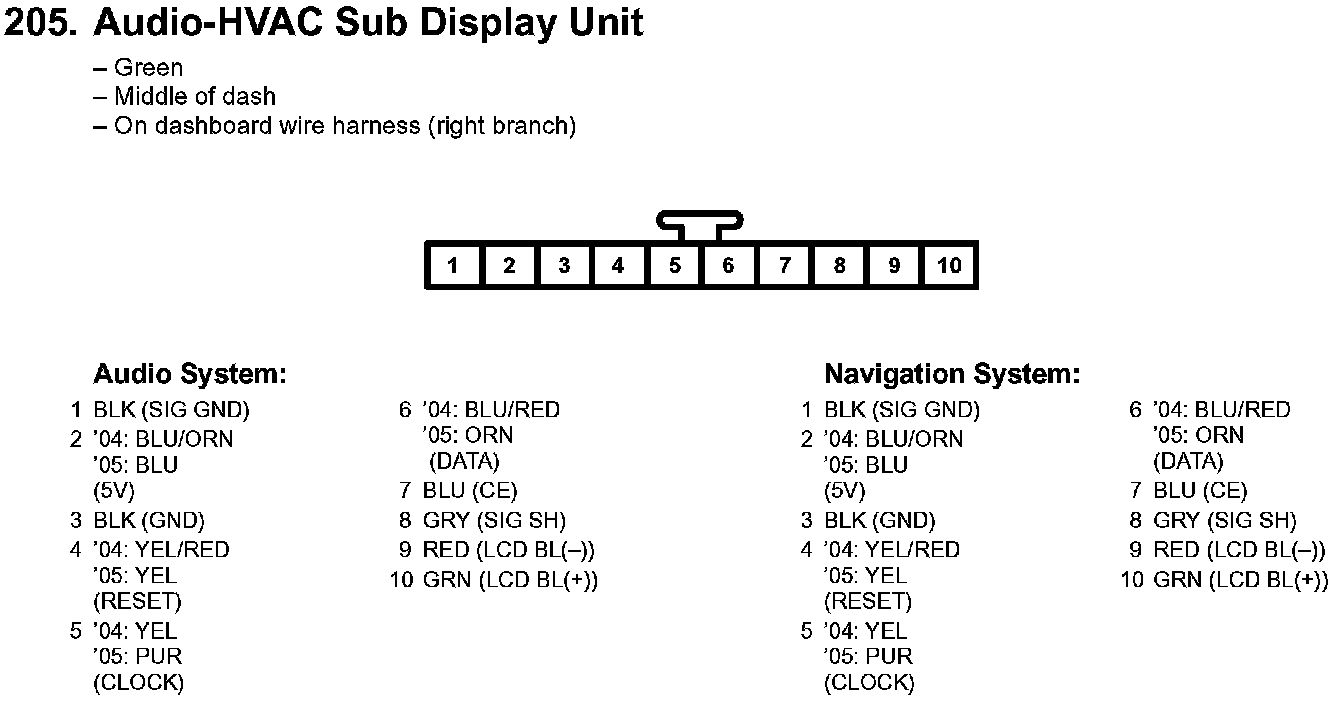

205. Audio-HVAC Sub Display Unit:
