Wheel Speed Sensor

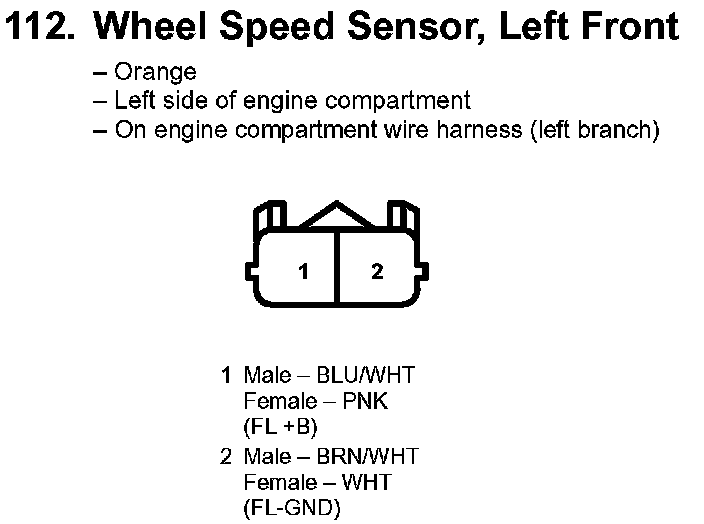

112. Wheel Speed Sensor, Left Front:

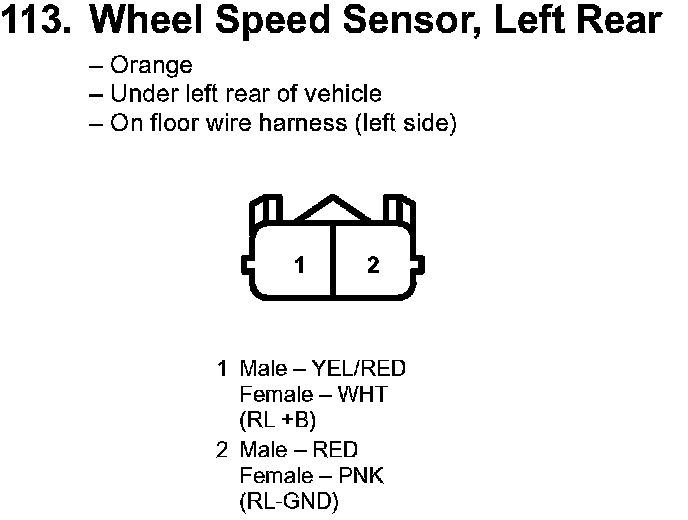

113. Wheel Speed Sensor, Left Rear:

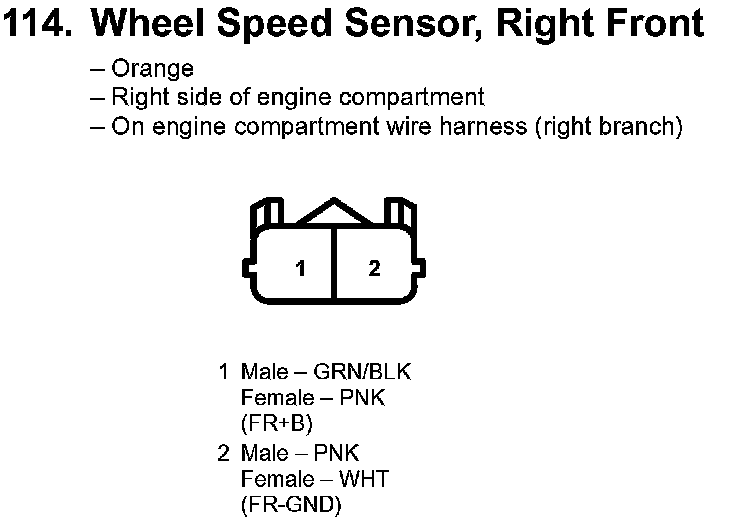

114. Wheel Speed Sensor, Right Front:

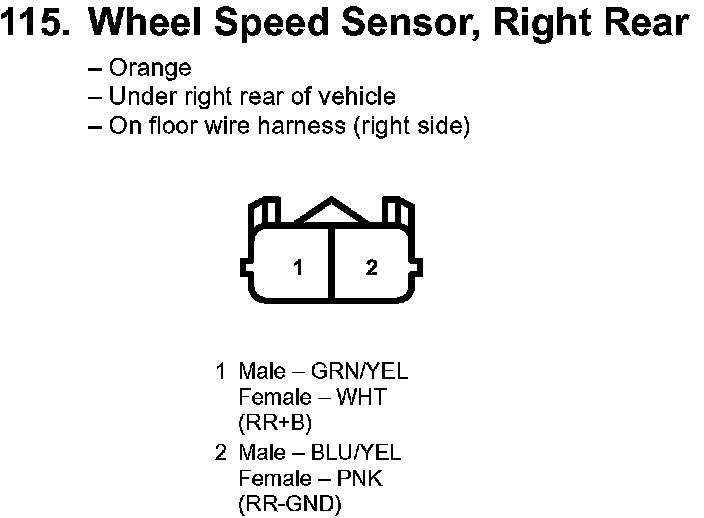

115. Wheel Speed Sensor, Right Rear:
