Variable Valve Timing Pressure Switch: Locations

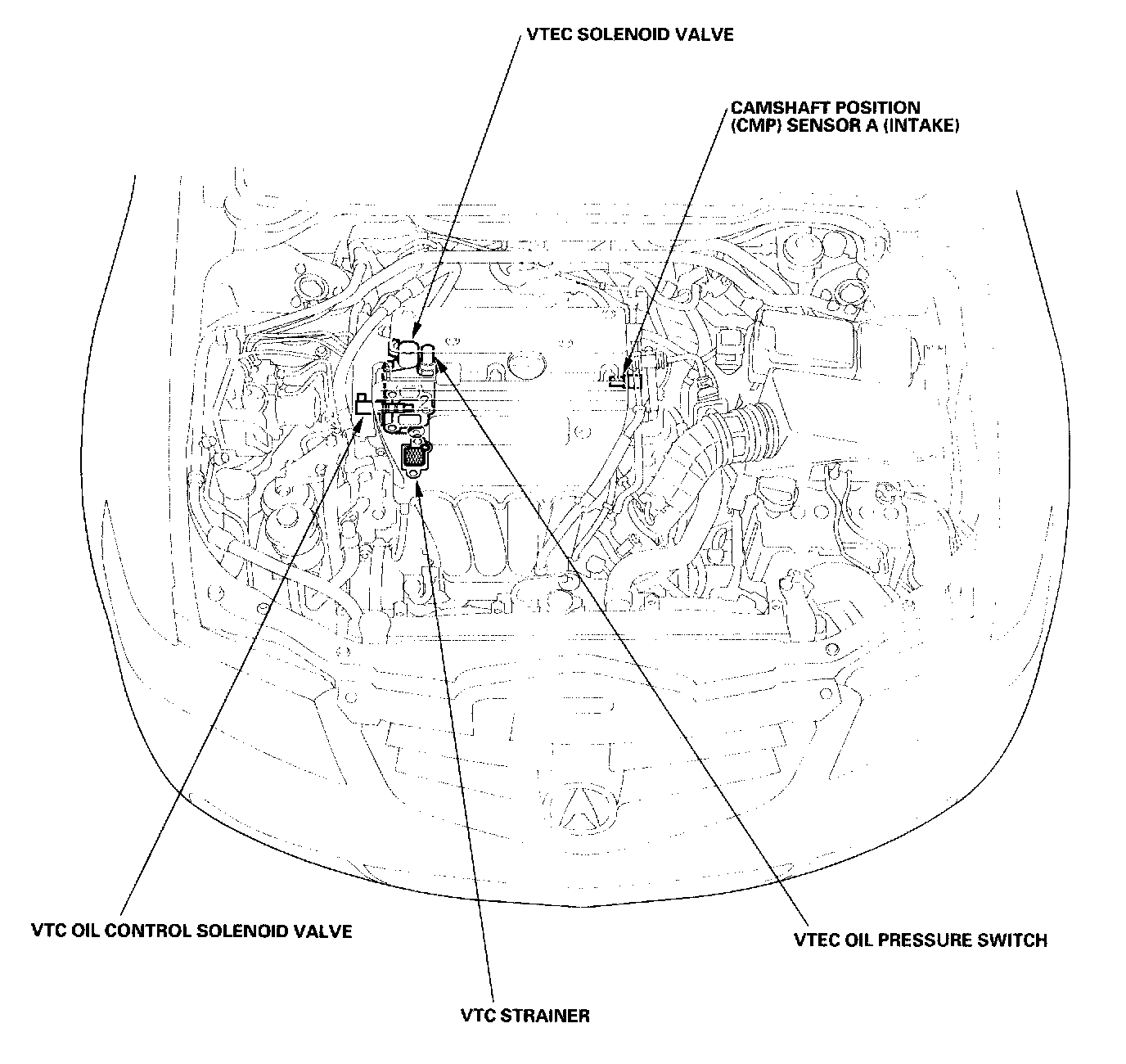

VTEC/VTC - Component Location Index:

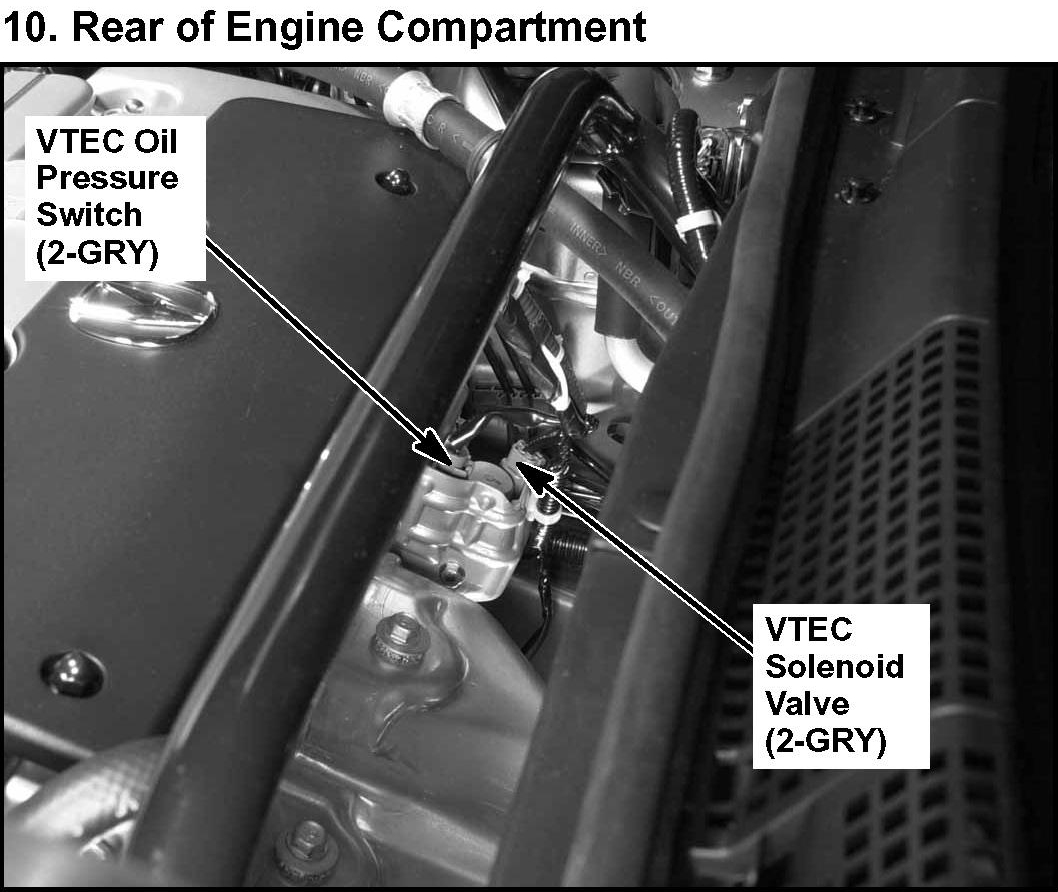

10. Rear Of Engine Compartment:
