Wheel Speed Sensor

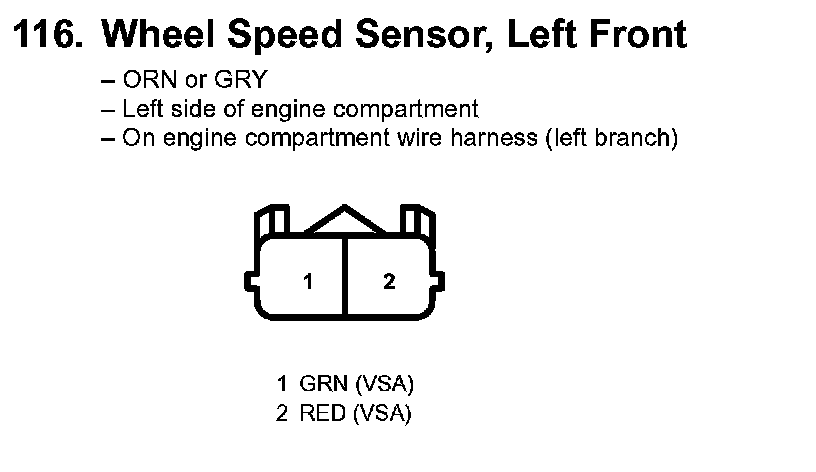

116. Wheel Speed Sensor, Left Front:

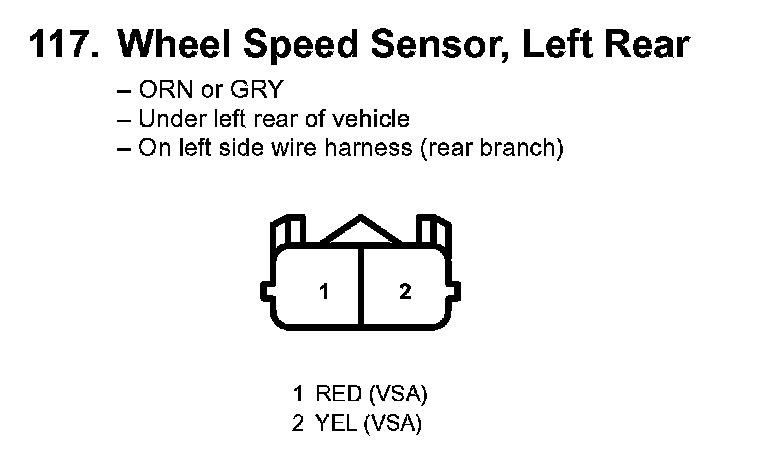

117. Wheel Speed Sensor, Left Rear:



118. Wheel Speed Sensor, Right Front:

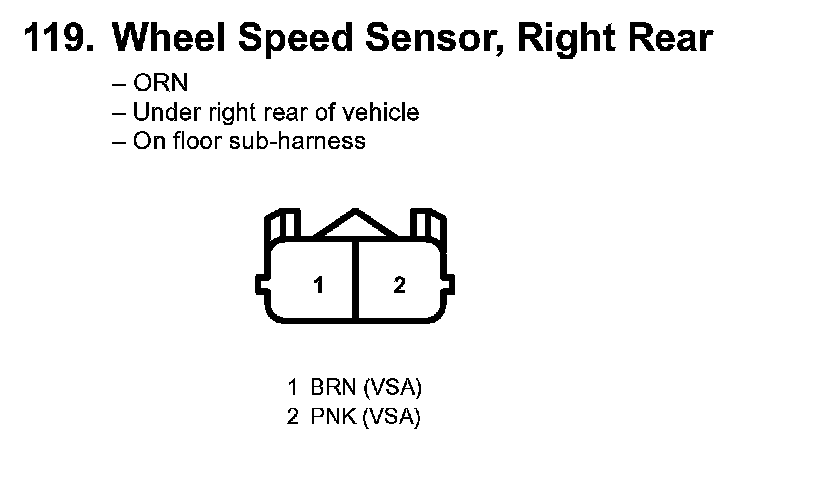

119. Wheel Speed Sensor, Right Rear:
