Electronic Throttle Control System Diagram

Electronic Throttle Control System Diagram

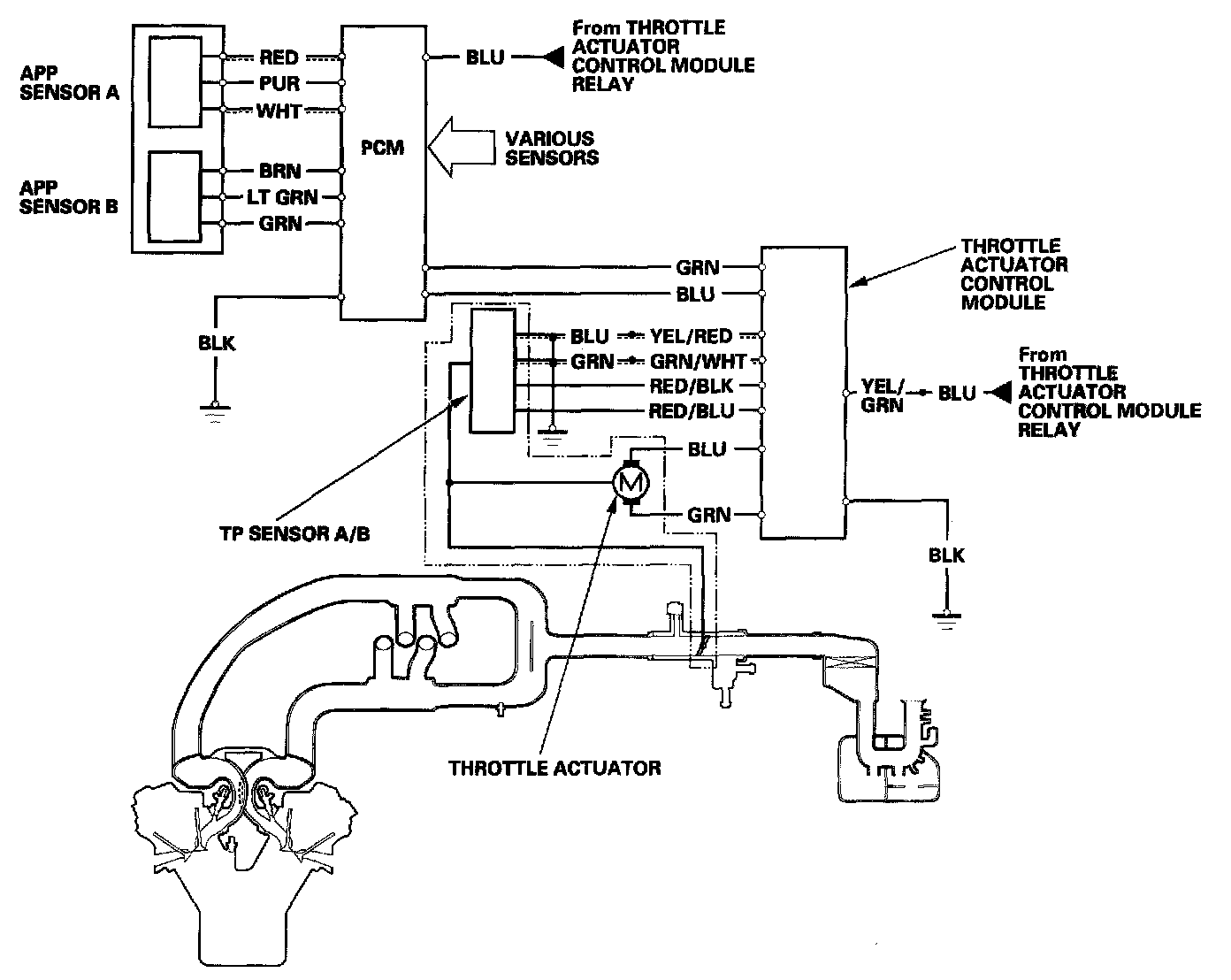

The electronic throttle control system consists of the throttle actuator, throttle position (TP) sensor A/B, accelerator pedal position (APP) sensor A/B, throttle actuator control module, and the PCM.
