Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

1. Remove the trunk floor.

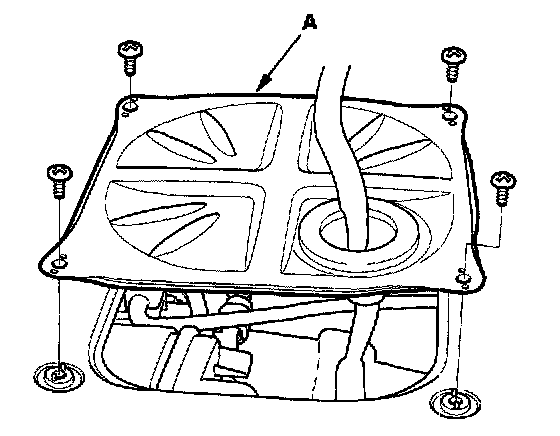

2. Remove the access panel (A) from the floor.

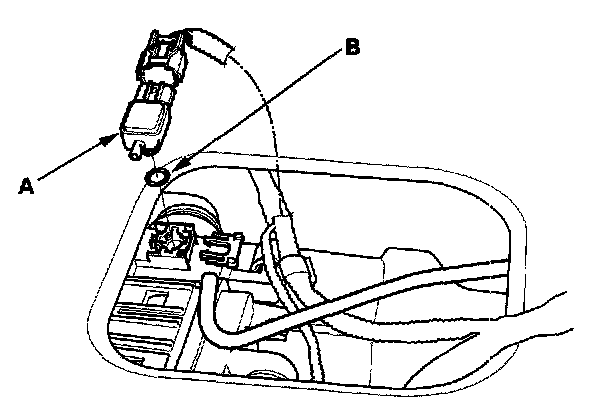

3. Remove the FTP sensor (A).
4. Install the sensor in the reverse order of removal with a new O-ring (B).
