ATF Temperature Sensor Replacement

ATF Temperature Sensor Replacement
1. Remove the splash shield.

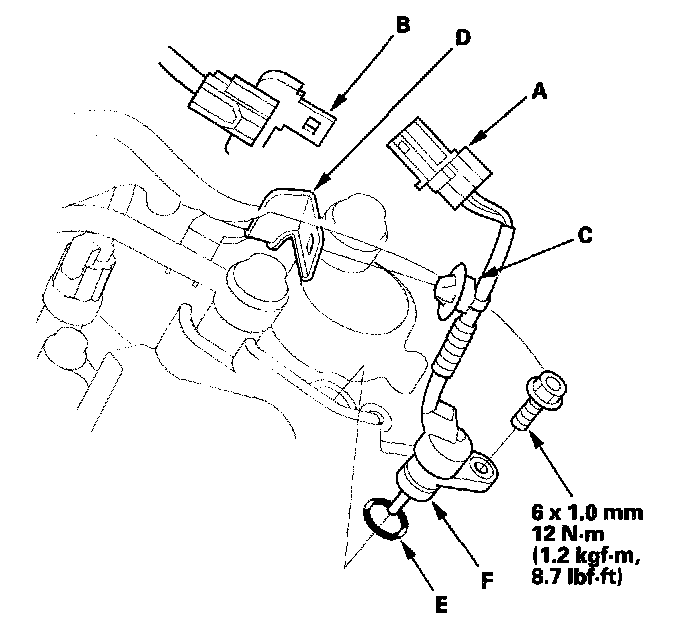

2. Disconnect the ATF temperature sensor connector (A), then remove the connector from the connector bracket (B).





3. Remove the harness clamp (C) from its bracket (D).
4. Remove the ATF temperature sensor, and replace the sensor.
5. Install a new O-ring (E) on the new ATF temperature sensor (F).
6. Install the ATF temperature sensor connector to the connector bracket, then connect the connector securely.
7. Install the harness clamp on its bracket.
8. Install the splash shield.
