Electronic Brake Control Module: Testing and Inspection

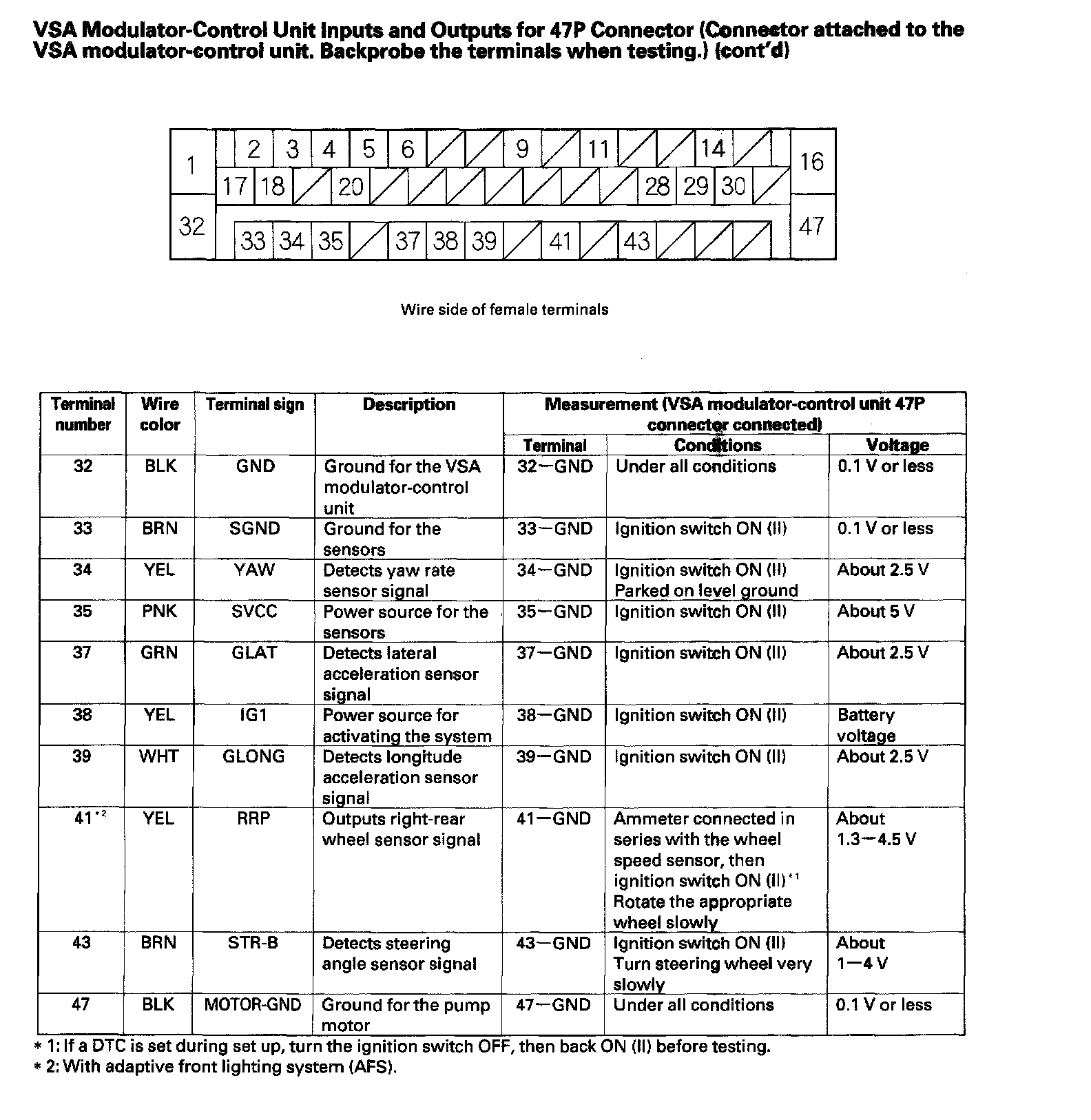

VSA Modulator-Control Unit Inputs and Outputs For 47P Connector:

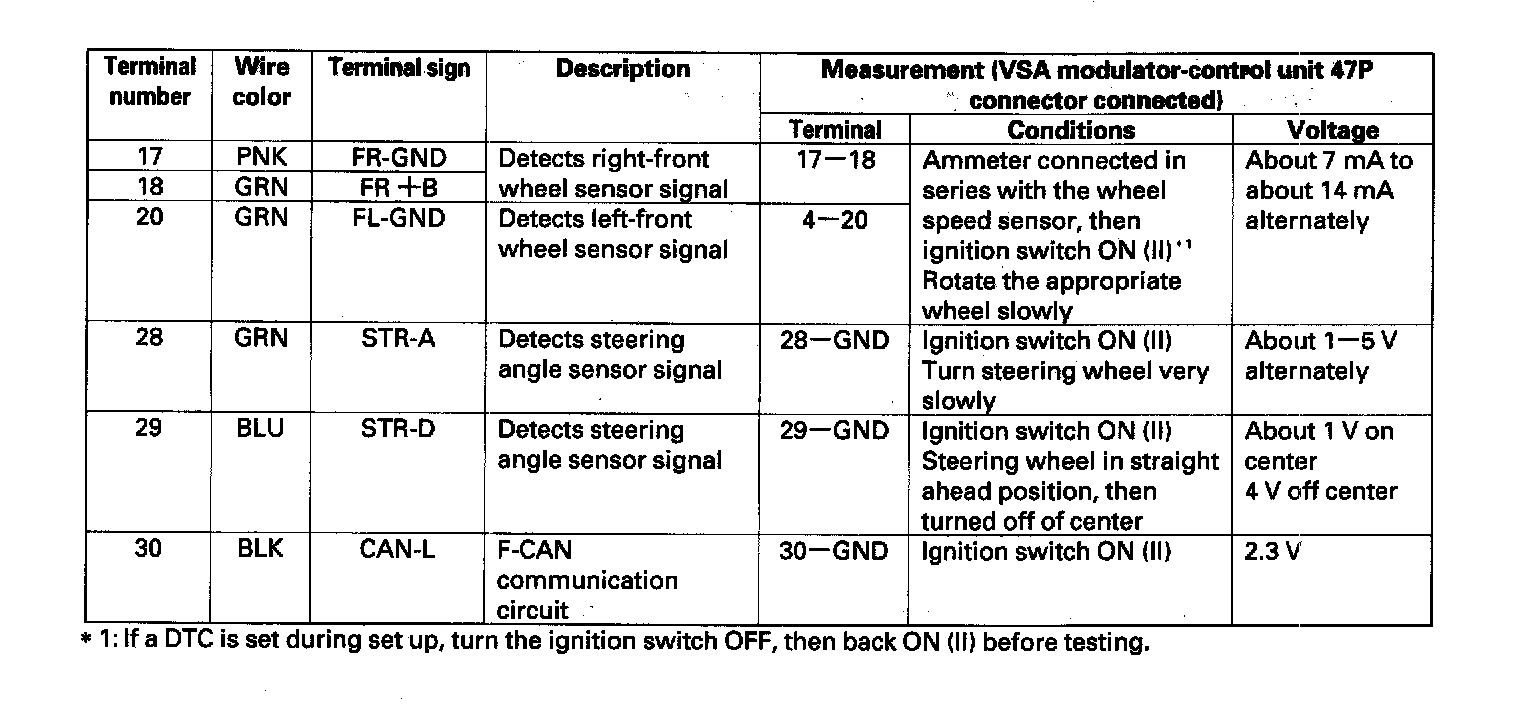

VSA Modulator-Control Unit Inputs and Outputs For 47P Connector:

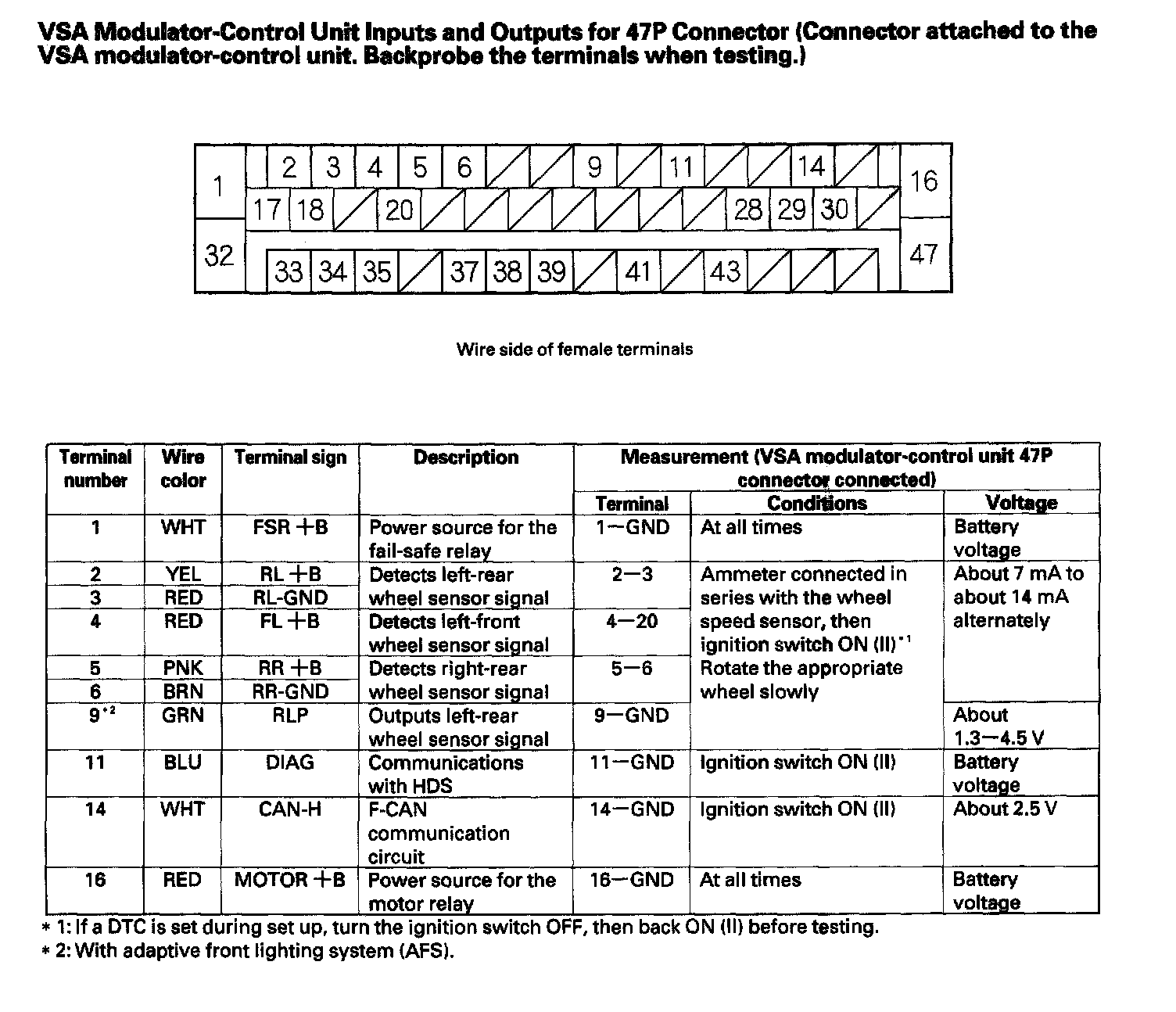

VSA Modulator-Control Unit Inputs and Outputs For 47P Connector:
