Passenger's Window Switch Test/Replacement
Passenger's Window Switch Test/Replacement1. Remove the passenger's door armrest.

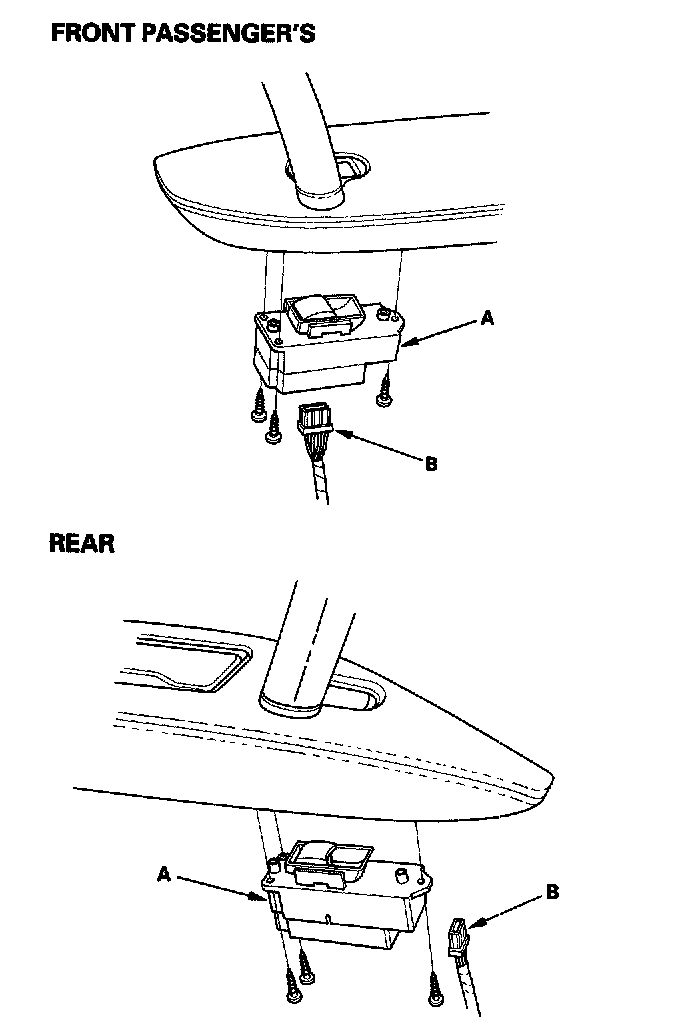

2. Disconnect the 10P (or 14P)* connector (A) from the passenger's window switch (B).
* : Rear window switch
3. Remove the three screws and the switch.
4. Swap the power window switch with another known-good switch and test. If the original window switch is faulty; replace it.
5. Install the switch in the reverse order of removal.
6. After replacement, reset the power window control unit.
