Keyless Access RF Unit 1 Connector End View

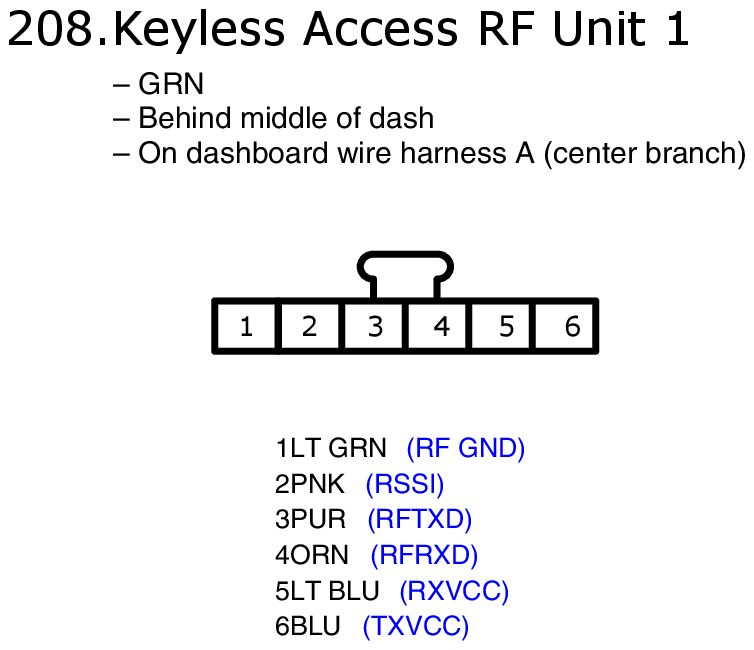

Fig 1: Keyless Access RF Unit 1 Connector End View
GHHW9201Courtesy of AMERICAN HONDA MOTOR CO., INC.

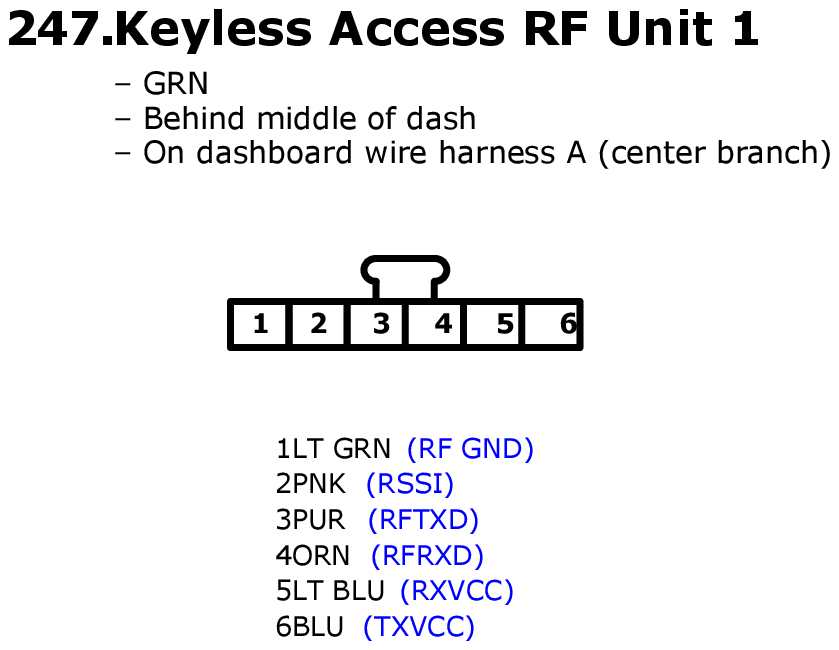

Fig 1: Keyless Access RF Unit 1 Connector End View
GHHW9672Courtesy of AMERICAN HONDA MOTOR CO., INC.
