Distance Switch Test
- Remove the driver's airbag (see
DRIVER'S AIRBAG REPLACEMENT
).

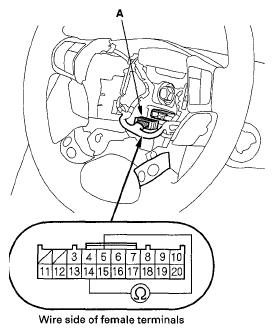

- Disconnect the 20P connector (A) from the cable reel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the 20P connector No. 5 and No. 14 terminals.
- There should be continuity with the distance switch pressed.
- There should be no continuity with the distance switch released.
- If the continuity is not as specified, replace the cruise control combination switch assembly (see CRUISE CONTROL COMBINATION SWITCH TEST
).
