XM Receiver Connector Inputs and Outputs (Canada models, USA models without navigation)

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

When replacing an XM receiver connector, match the wires to the cavities listed in the following table.

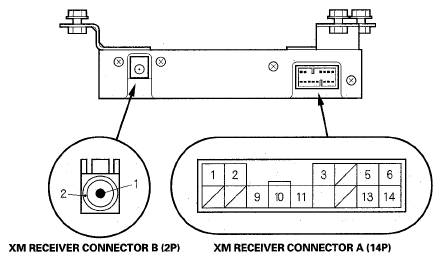

Fig 1: Identifying XM Receiver Connector Terminal (Canada Models, U.S.A. Models Without Navigation)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

XM Receiver Connector A (14P)

XM RECEIVER CONNECTOR TERMINAL (14P) REFERENCE

Cavity

Wire

Connects to

WHT/RED

Constant power

ORN

Audio unit-System ACC

GRY⁽¹⁾

ECU BUS SH (GA-NET)

WHT

Audio unit-RCH (+)

RED

Audio unit-LCH (+)

RED/WHT

ECU BUS (+) (GA-NET)

A10

RED/BLU

ECU BUS (-) (GA-NET)

A11

BLK

Ground (G604)

A13

BLK

Audio unit-RCH (-)

A14

GRN

Audio unit-LCH (-)

⁽¹⁾	The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

XM Receiver Connector B (2P)

XM RECEIVER CONNECTOR (2P) REFERENCE

Cavity	Wire	Connects to
B1	-	XM antenna (SAT/TER)
B2	-	XM antenna (SAT/TER SH)
