C201 Connector End View

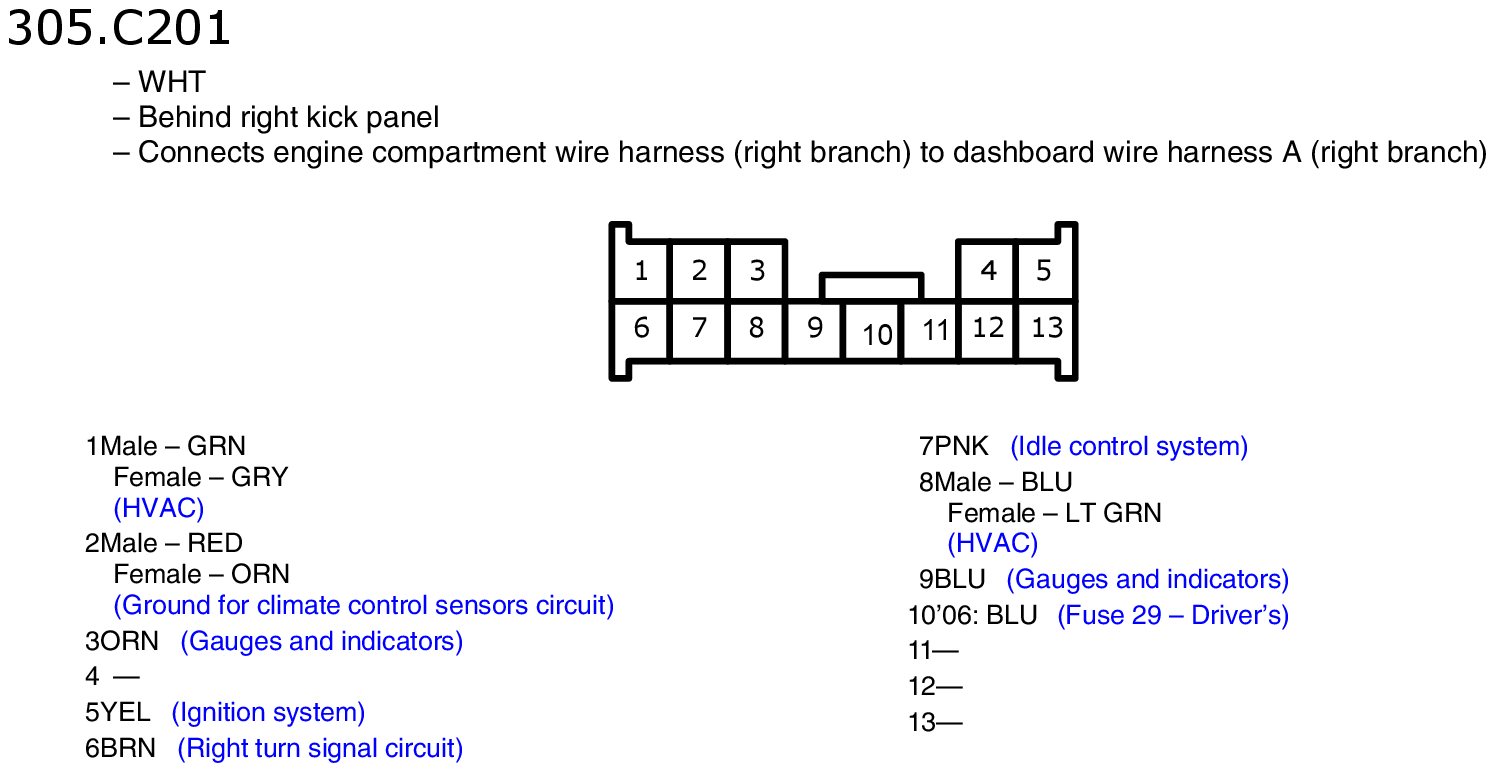

Fig 1: C201 Connector End View
GHHW9298Courtesy of AMERICAN HONDA MOTOR CO., INC.

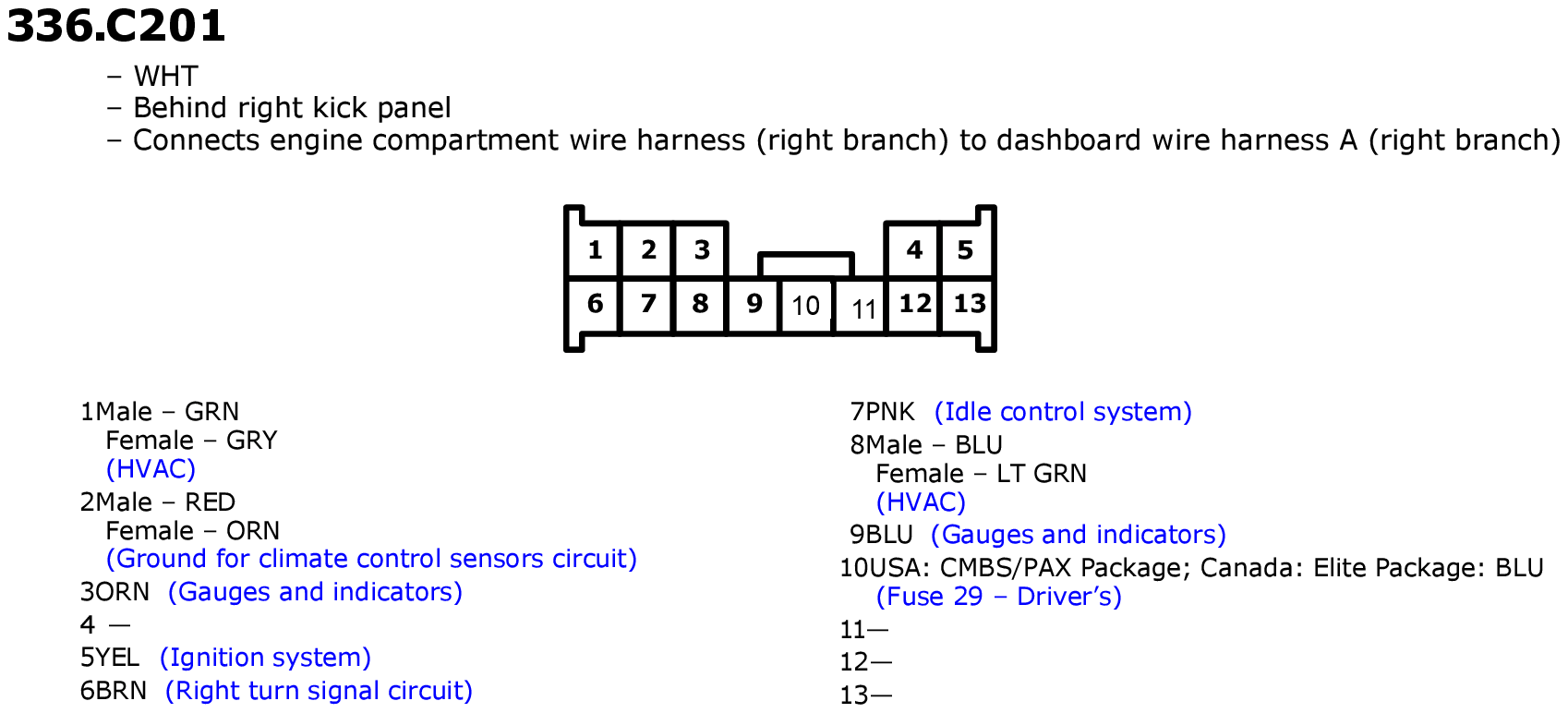

Fig 1: C201 Connector End View
GHHW9761Courtesy of AMERICAN HONDA MOTOR CO., INC.
